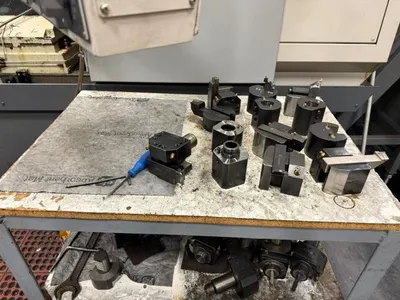

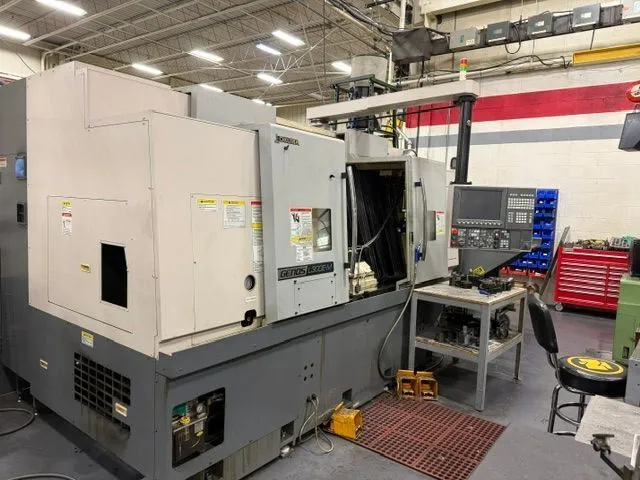

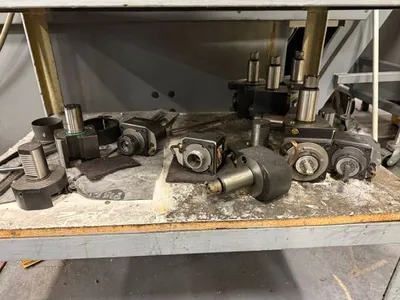

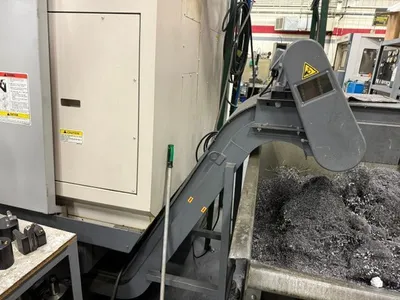

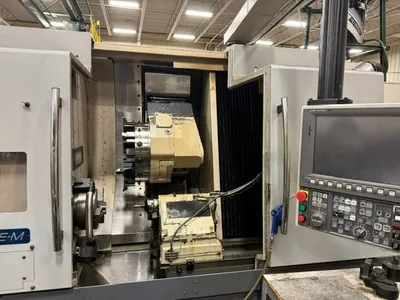

2014 Okuma Genos L300E-MY CNC Turning Center, Okuma OSP-P200LA-R CNC Control, 10" 3-Jaw Chuck, 20.47" Swing, 41.33" Between Centers, Tailstock, 3.14" Thru Hole, 12-Position Turret W/ Live Tooling, 4,500 RPM Live Tooling, 3,000 RPM Main Spindle, C-Axis, Y-Axis, Tool Setter, Chip Conveyor, Live Tool Holders & Static Tool Holders Included, New 2014.
Okuma OSP-P200LA-R CNC Control, 10" 3-Jaw Chuck, 20.47" Swing, 41.33" Between Centers, Tailstock, 3.14" Thru Hole, 12-Position Turret W/ Live Tooling, 4,500 RPM Live Tooling, 3,000 RPM Main Spindle, C-Axis, Y-Axis, Tool Setter, Chip Conveyor, Live Tool Holders & Static Tool Holders Included, New 2014.
2014 Okuma Genos L300E-MY CNC Turning Center, Okuma OSP-P200LA-R CNC Control, 10" 3-Jaw Chuck, 20.47" Swing, 41.33" Between Centers, Tailstock, 3.14" Thru Hole, 12-Position Turret W/ Live Tooling, 4,500 RPM Live Tooling, 3,000 RPM Main Spindle, C-Axis, Y-Axis, Tool Setter, Chip Conveyor, Live Tool Holders & Static Tool Holders Included, New 2014.
Imperial

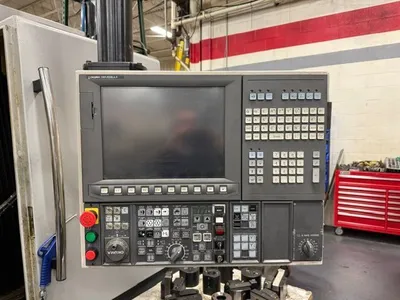

| CNC Control | Okuma P200LA-R |
| # Axis | 4 |
| Max Swing Over Bed | 20.47" |
| Main Spindle Chuck Size | 10" |
| Max Turning Diameter | 11.8" |
| Center Distance | 41.73" |
| # Turrets | 1 |
| X-Axis (Cross Travel: Turret) | 9.25" |
| Z-Axis (Longitudinal Travel: Turret) | 42" |
| Y-Axis (Travel of Turret) | 3.94" |
| Spindle Through Hole | 3.14" |
| Spindle Power | 20 hp |
| Max Spindle Speed | 3,000 RPM |
| Live Tooling | Yes |
| Max Live Tooling Speed | 4,500 RPM |
| Upper Turret Live Tooling Power | 5 hp |
| Upper Turret Positions | 12 |
| Tailstock | Yes |

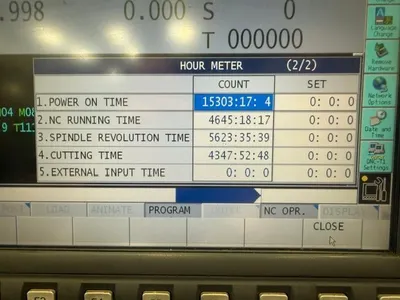

| Machine Cutting Hours | 4347 |
| Electrics | 220/4/60 |
| Dimensions | 78" x 158" |
| Weight | 16,000lbs |
Okuma OSP-P200LA-R CNC Control, 10" 3-Jaw Chuck, 20.47" Swing, 41.33" Between Centers, Tailstock, 3.14" Thru Hole, 12-Position Turret W/ Live Tooling, 4,500 RPM Live Tooling, 3,000 RPM Main Spindle, C-Axis, Y-Axis, Tool Setter, Chip Conveyor, Live Tool Holders & Static Tool Holders Included, New 2014.
