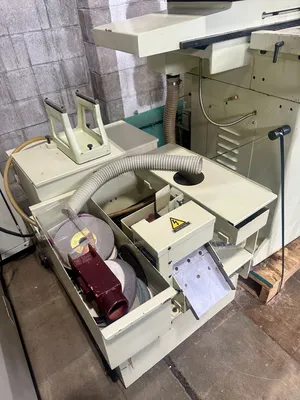

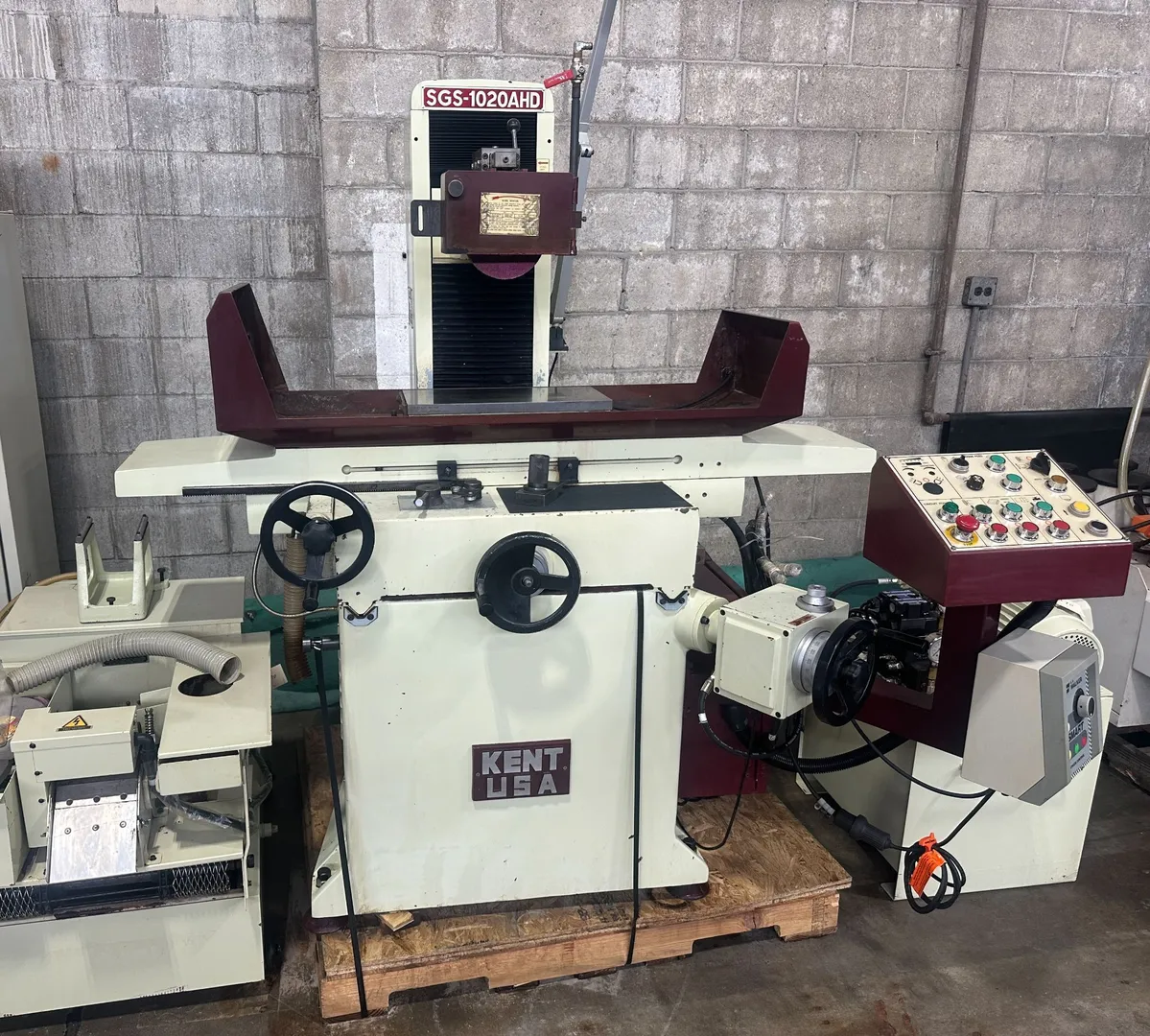

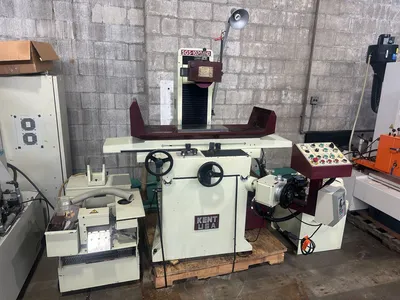

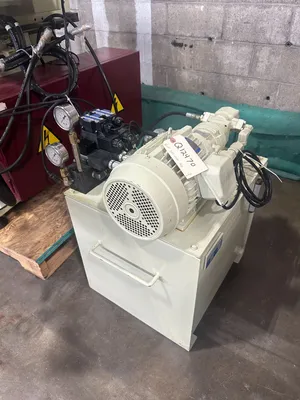

Kent SGS-1020 AHD Automatic Surface Grinder, 8" x 20" Magnetic Chuck, 8" Wheel Size, Travels: X=22", Z=10", 3450 RPM, Auto Down Feed, Coolant Tank.

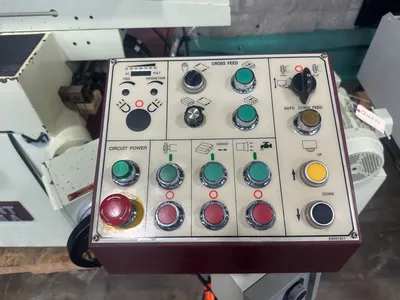

operators station, 8" x 20" Magnetic Chuck, 8" Wheel Size, Travels: X=22", Z=10", 3450 RPM, Auto Down Feed, Coolant Tank.
CONDITION: This Machine Appears to be in Excellent Condition!
Kent SGS-1020 AHD Automatic Surface Grinder, 8" x 20" Magnetic Chuck, 8" Wheel Size, Travels: X=22", Z=10", 3450 RPM, Auto Down Feed, Coolant Tank.
operators station, 8" x 20" Magnetic Chuck, 8" Wheel Size, Travels: X=22", Z=10", 3450 RPM, Auto Down Feed, Coolant Tank.
Imperial
| Down Feed | Yes |
| Spindle (Horz/Vert) | Vertical |
| Grinding Capacity-L | 20" |
| Grinding Capacity-W | 10" |
| Table Size-L | 20" |
| Table Size-W | 10" |

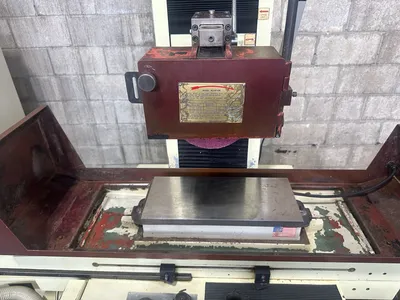

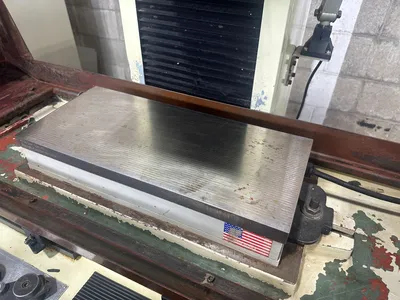

| Magnetic Chuck Working Surface-L | 20" |
| Magnetic Chuck Working Surface-W | 8" |
| Max Longitudinal Travel | 22" |
| Cross Travel | 10" |
| Cross Feed Handwheel Graduation | 0.005" |
| Cross Handwheel per Revolution | 0.2" |
| Vertical Handwheel Graduation | 0.0005" |
| Vertical Handwheel per Revolution | 0.1" |
| Max Spindle Speed | 3,450 RPM |
| Max Grinding Wheel Diameter | 8" |
| Max Grinding Wheel Width | 0.5" |
| Max Grinding Wheel Hole Diameter | 1.25" |
| Spindle Power | 2 hp |
| Dimensions | 74" x 61" x 76" |
| Weight | 4500 lbs |
CONDITION: This Machine Appears to be in Excellent Condition!
