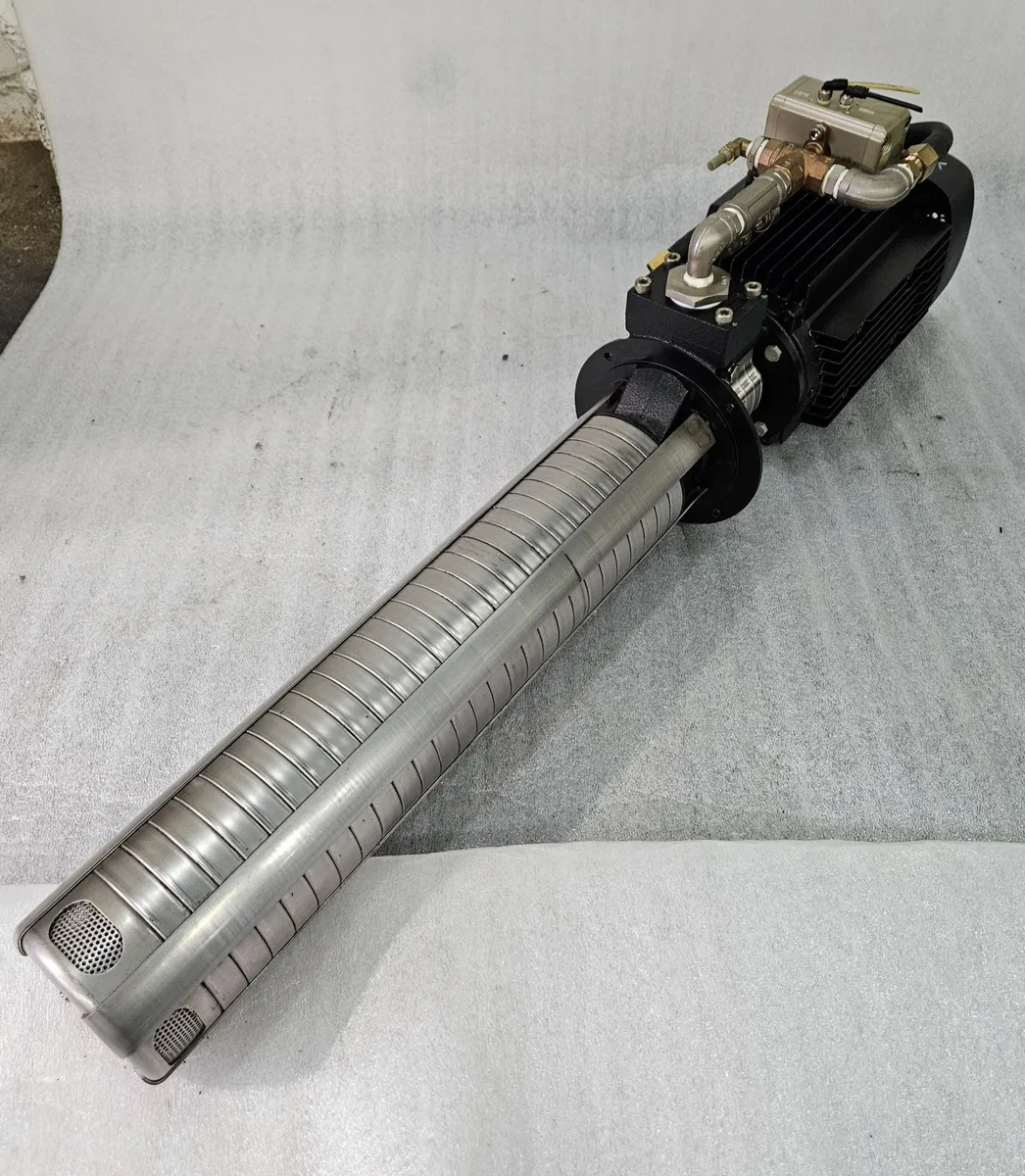

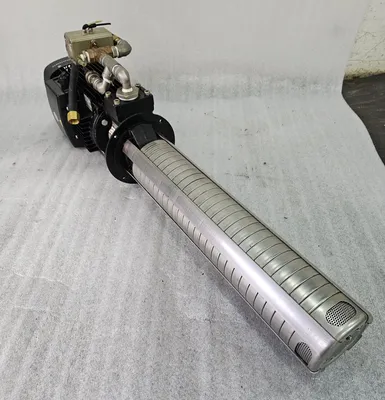

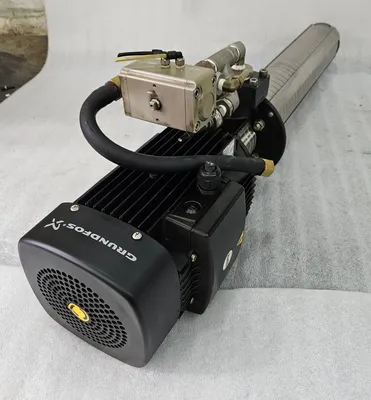

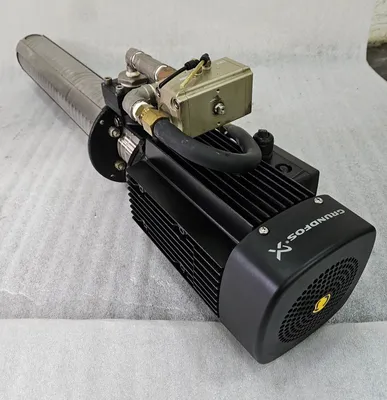

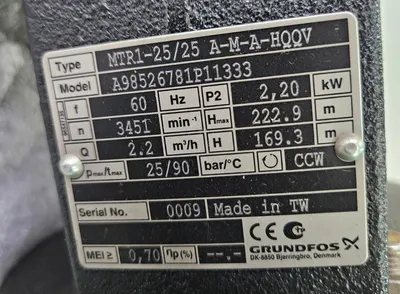

GRUNDFOS MTR 1-25/25 A-M-A-HQQV MULTISTAGE CENTRIFUGAL PUMP, PART FROM MAKINO U6 EDM
GRUNDFOS MTR 1-25/25 A-M-A-HQQV MULTISTAGE CENTRIFUGAL PUMP, PART FROM MAKINO U6 EDM
GRUNDFOS MTR 1-25/25 A-M-A-HQQV MULTISTAGE CENTRIFUGAL PUMP, PART FROM MAKINO U6 EDM
GRUNDFOS MTR 1-25/25 A-M-A-HQQV MULTISTAGE CENTRIFUGAL PUMP, PART FROM MAKINO U6 EDM
Imperial
| Flow Rate | 9.8 US gpm |
| Max Head | 555.45' |
| Chambers | 25 |
| Impellers | 25 |
| Code for Shaft Seal | HQQV |
| Pump Housing Material | Cast Iron |
| Impeller Material | Stainless Steel |
| Max Ambient Temperature | 140°F |
| Max Operating Pressure | 362.6 PSI |
| Immersion Depth (Pump Depth) | 22.598" |
| Type of Connection | Square / RP |
| Outlet Connection (Discharge) Size | 4 |
| Efficiency Class | IE3 |
| Rated Power (P2) | 3 hp |
| Frequency | 60 Hz |
| Motor Protection | NONE |
| Insulation Class | F (Max 155° C / 311° F) |
| Motor Power | 3 hp |
| Motor Speed | 3,500 RPM |
| Dimensions | 42"x 10"x 12" |
| Weight | 85 lbs |
