Fanuc Robodrill a-D21MiB5ADV CNC Vertical Machining Center

Fanuc Robodrill a-D21MiB5ADV CNC Vertical Machining Center

Sell Your FANUC ROBODRILL a-D21MiB5ADV
513-771-2111
sales@gaec.com
Request Financing
Sell Your FANUC ROBODRILL a-D21MiB5ADV

Overview

Type:
Machining Centers, Vertical
Manufacturer:
FANUC
Model:
ROBODRILL a-D21MiB5ADV
Year:
2018
Stock #:
Q12343

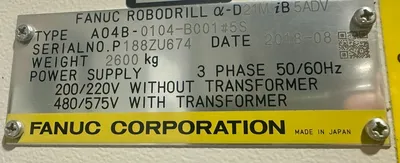

Serial #:
P188ZU674

Description

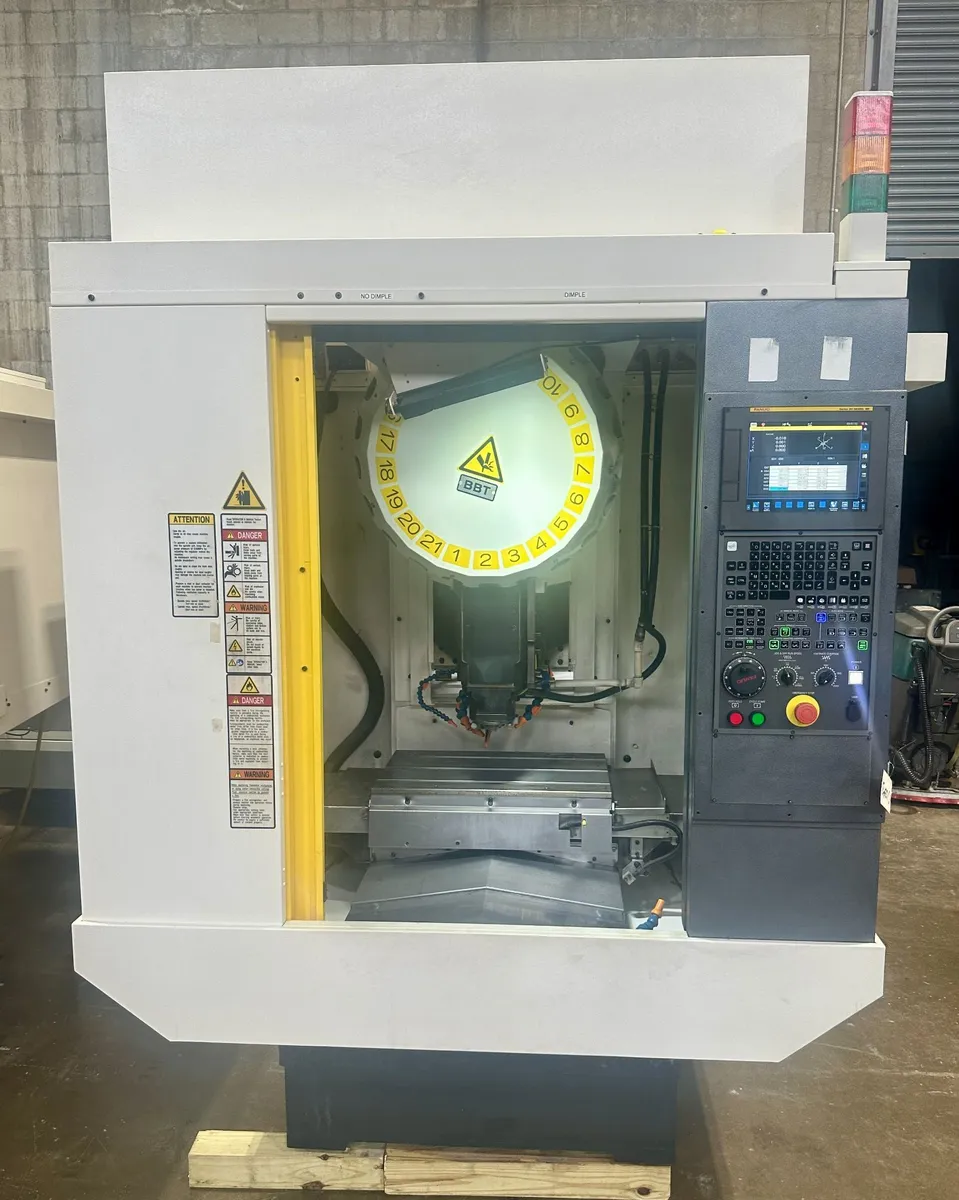

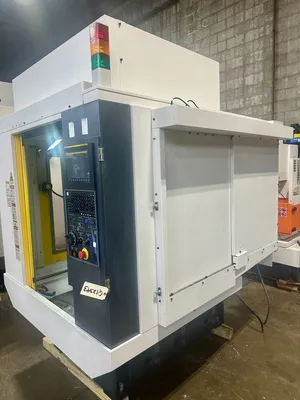

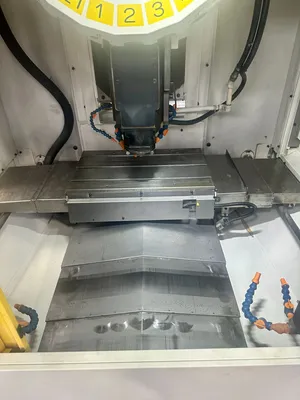

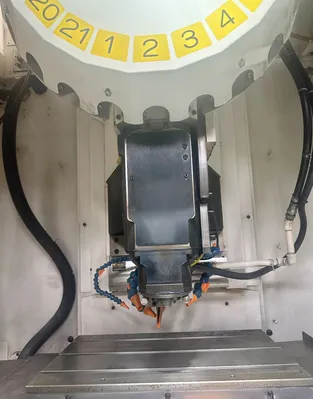

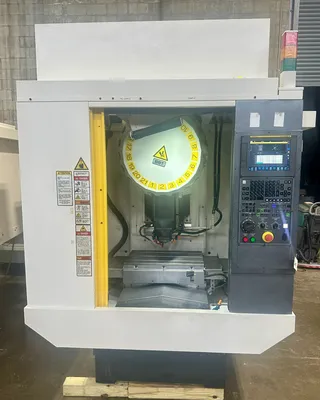

FANUC ROBODRILL a-D21MiB5ADV CNC VERTICAL MACHINING CENTER, Fanuc Series 31i - Model B5ADV CNC Control, 15-3/4" x 25-1/2" Table, X=19.6", Y=15.7", Z=15.7", BT30 Taper, 24000 Max Spindle RPM, 21 ATC, Coolant Tank, Auto Door on Right Side, Tool Setter, MistBuster Filtration System, New 2018.

Fanuc Series 31i - Model B5ADV CNC Control, 15-3/4" x 25-1/2" Table, X=19.6", Y=15.7", Z=15.7", BT30 Taper, 24000 Max Spindle RPM, 21 ATC, 4" Riser , Coolant Tank, Auto Door on Right Side, Tool Setter, MistBuster Filtration System, New 2018.

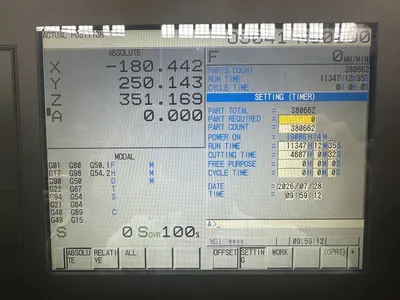

ControlCNCCNC

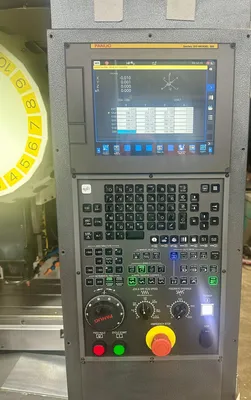

CNC Control31i-B5 PLUS31i-B5 PLUS

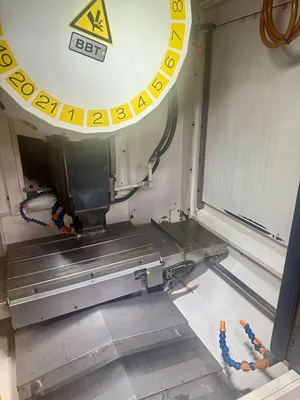

Table-L15.7"398.78 mm
Table-W25.6"650.24 mm
Max Table Load Capacity881 lb399.6 kg
X-Axis (Longitudinal Travel)19.7"500.38 mm
Y-Axis (Cross Travel)15.7"398.78 mm
Z-Axis (Vertical Travel)15.7"398.78 mm
Max Clearance Tabletop to Spindle Nose26.7"678.18 mm
Min Clearance Tabletop to Spindle Nose11"279.4 mm
Rapid Traverse Rate (X, Y, & Z Axis)2,125 in/min.54 m/min.
Max Spindle Speed24,000 RPM24,000 RPM
Spindle TaperBT-30BT-30

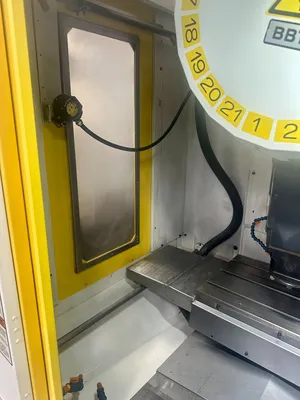

Automatic Tool Changer Capacity (ATC)2121
Dimensions81" X 65" X 119"81" X 65" X 119"
Weight5291 LBS5291 LBS
