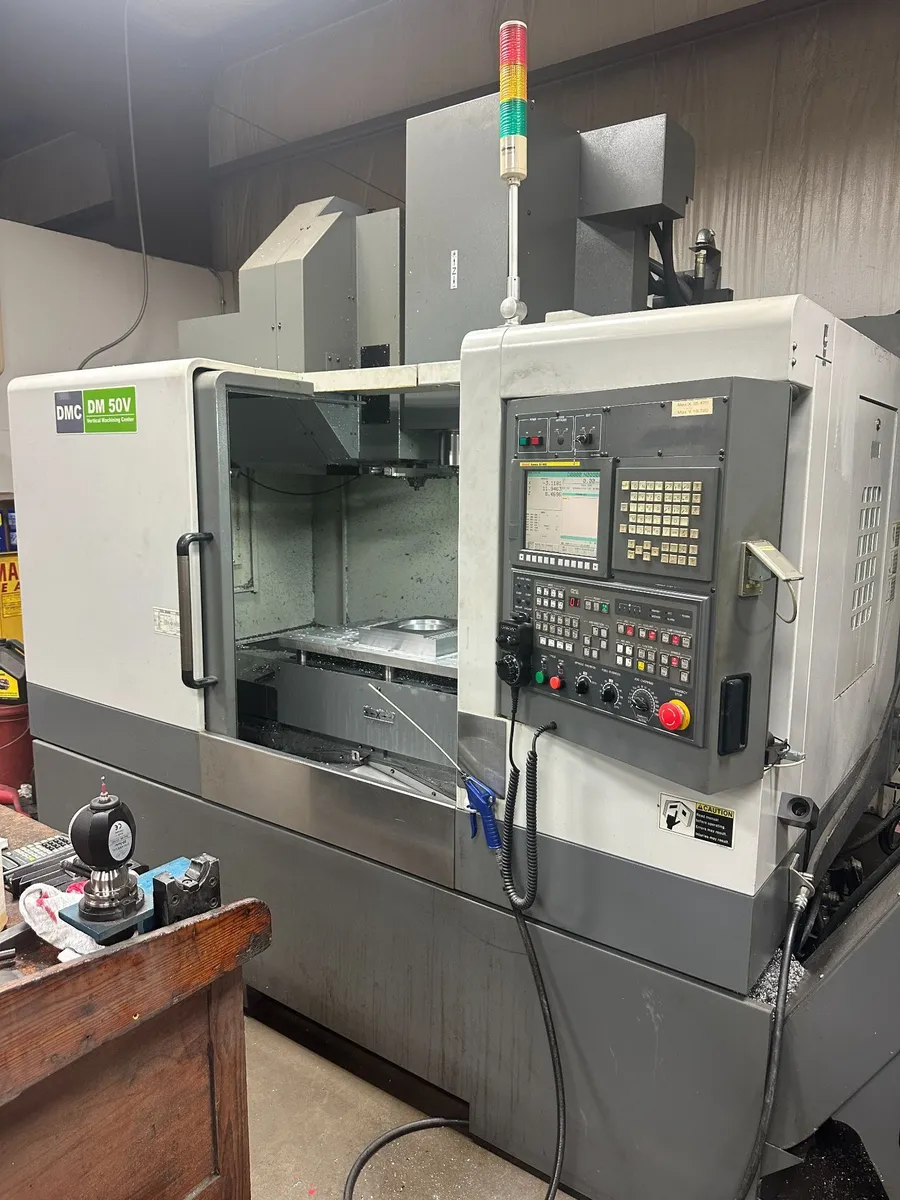

2012 DMC DM 50V CNC Vertical Machining Center

2012 DMC DM 50V CNC Vertical Machining Center

Sell Your DMC DM 50V
513-771-2111
sales@gaec.com
Request Financing
Sell Your DMC DM 50V

Overview

Type:
Machining Centers, Vertical
Manufacturer:
DMC
Model:
DM 50V
Year:
2012
Stock #:
Q11589

Description

DMC DM 50V CNC Vertical Machining Center, Fanuc 0i CNC Control, Table Size 36" x 19", Travels X-Axis 35.43", Y-Axis 20.47", Z-Axis 20.08", 10,000 RPM Spindle Big Plus, 30 ATC, TSC, Coolant System, Chip Conveyor, New 2012

Fanuc 0i CNC Control, Table Size 36" x 19", Travels X-Axis 35.43", Y-Axis 20.47", Z-Axis 20.08", 10,000 RPM Spindle Big Plus, 30 ATC, Through Spindle Coolant, 4th Axis Drive, Coolant System, Chip Conveyor, New 2012

CNC ControlFanuc 0i CNC ControlFanuc 0i CNC Control
# Axis33
Table-L36.2"919.48 mm
Table-W19.6"497.84 mm
Max Table Load Capacity1,323 lb600.1 kg
X-Axis (Longitudinal Travel)35.43"899.92 mm
Y-Axis (Cross Travel)19.7"500.38 mm
Z-Axis (Vertical Travel)20.08"510.03 mm
Spindle Power20 hp14.9 kW
Spindle Speed Range10,000 RPM10,000 RPM
Spindle TaperBig Plus 40Big Plus 40
Coolant Through SpindleYesYes
Automatic Tool Changer Capacity (ATC)3030
Machine Hours38833883
Electrics220/3/60220/3/60

CONDITION: This Machine Appears to be in Excellent Condition!
