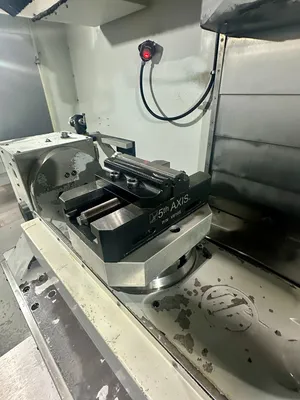

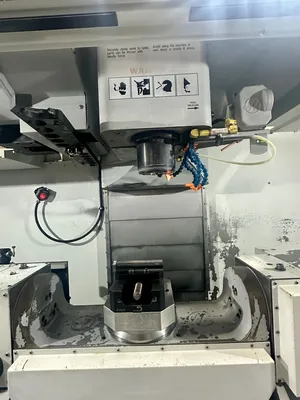

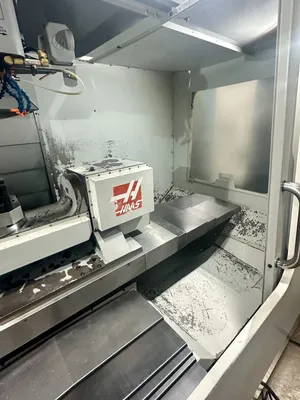

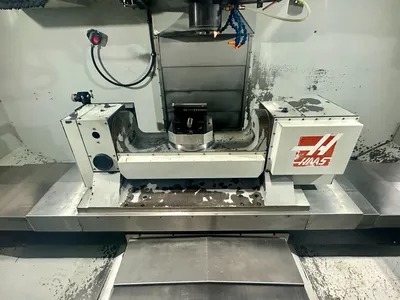

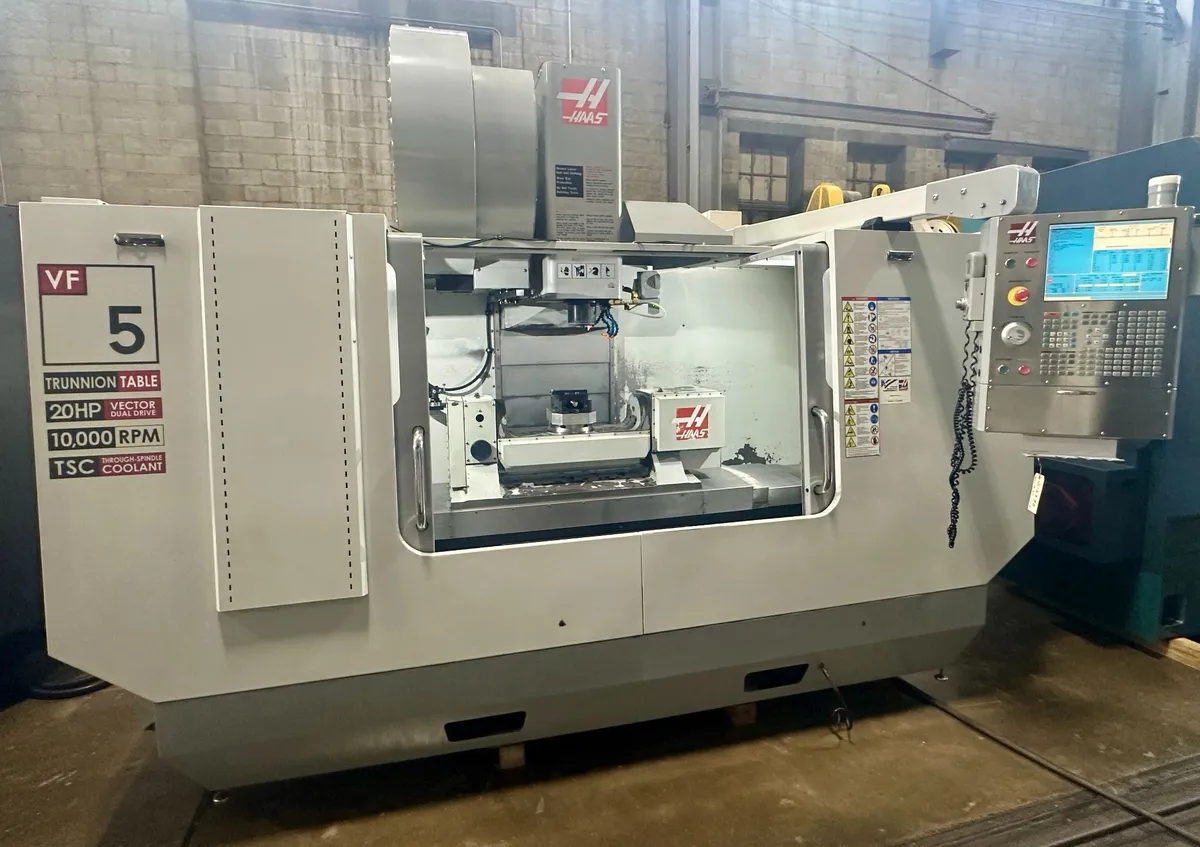

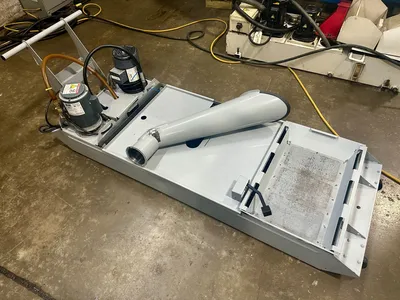

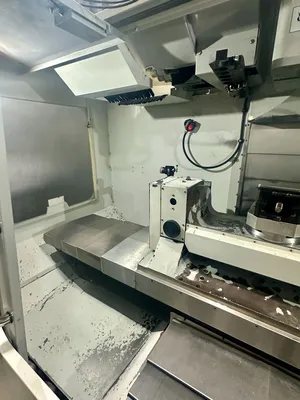

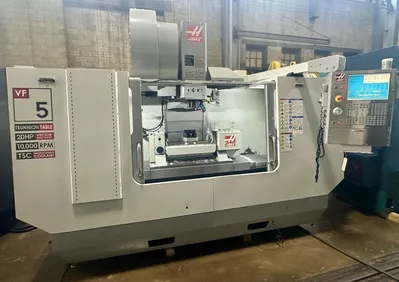

HAAS VF-5D/40 5-Axis CNC Vertical Machining Center, Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 24 ATC, Chip Auger & Coolant System, New 2008.
Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis-=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 20HP Spindle, 24 ATC, Chip Auger & Coolant System.

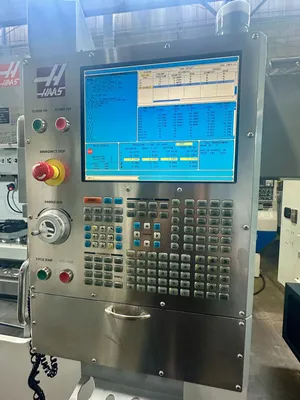

CNC Control: Haas CNC
# Axis: 3
Table Size: 52" x 23"
Maximum Table Load Capacity: 4,000 LBS
X-Axis (Longitudinal Table Travel): 50"
Y-Axis (Vertical Travel): 25"
Z-Axis (Spindle Travel): 26"
Feed Rate, All Axes: 600 IPM
Spindle Horsepower: 20 HP
Spindle Taper: #40 CAT
Spindle Speed Range: 50 - 7,500 RPM
Automatic Tool Changer Capacity (ATC): 24
Electrics: 230/3/60
Approximate Machine Dimensions: 137" x 100"
Approximate Machine Height: 104"
Approximate Machine Weight: 15,400 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
HAAS VF-5D/40 5-Axis CNC Vertical Machining Center, Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 24 ATC, Chip Auger & Coolant System, New 2008.
Haas CNC Control, 6" Table on Trunnion 4th Axis, X=50", Y=26", Z=23", C-Axis-=360 Degrees, CAT 40 Taper, 10,000 Max Spindle RPM, 20HP Spindle, 24 ATC, Chip Auger & Coolant System.
Imperial
| Control | CNC (Haas CNC Control) |
| CNC Control | Haas CNC |
| # Axis | 5 |
| Table-L | 52" |
| Table-W | 23" |
| Table Diameter (Round) | 6" |
| Max Table Load Capacity | 4,000 lb |
| X-Axis (Longitudinal Travel) | 50" |
| Y-Axis (Cross Travel) | 26" |
| Z-Axis (Vertical Travel) | 25" |
| Max Clearance Tabletop to Spindle Nose | 29.2" |
| Min Clearance Tabletop to Spindle Nose | 4.2" |
| Feed Rates (X, Y, & Z Axis) | 500 in/min. |
| X-Axis Feed Rate | 500 in/min. |
| Y-Axis Feed Rate | 500 in/min. |
| Z-Axis Feed Rate | 500 in/min. |
| Rapid Traverse Rate (X, Y, & Z Axis) | 710 in/min. |
| X-Axis Rapid Traverse Rate | 710 in/min. |
| Y-Axis Rapid Traverse Rate | 710 in/min. |
| Z-Axis Rapid Traverse Rate | 710 in/min. |
| Spindle Power | 20 hp |
| Max Spindle Speed | 10,000 RPM |
| Spindle Taper | CAT 40 |
| Torque, Up To | 75 lbf |
| Coolant Through Spindle | Yes |

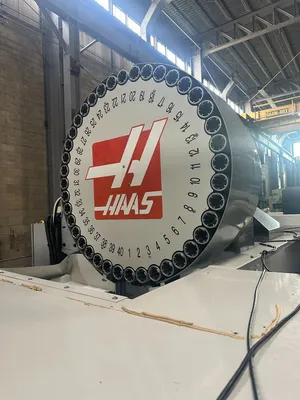

| Automatic Tool Changer Capacity (ATC) | 24 |
| Automatic Tool Changer Style | Side-Mount |
| Max Tool Diameter | 3.5" |
| Max Tool Weight | 12 lb |
| Machine Hours | 11552 |
| Electrics | 230/3/60 |
| Dimensions | 137" X 100" X 104" |
| Weight | 15,400 lbs. |
CNC Control: Haas CNC
# Axis: 3
Table Size: 52" x 23"
Maximum Table Load Capacity: 4,000 LBS
X-Axis (Longitudinal Table Travel): 50"
Y-Axis (Vertical Travel): 25"
Z-Axis (Spindle Travel): 26"
Feed Rate, All Axes: 600 IPM
Spindle Horsepower: 20 HP
Spindle Taper: #40 CAT
Spindle Speed Range: 50 - 7,500 RPM
Automatic Tool Changer Capacity (ATC): 24
Electrics: 230/3/60
Approximate Machine Dimensions: 137" x 100"
Approximate Machine Height: 104"
Approximate Machine Weight: 15,400 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
