Mitsubishi Model MV2400S CNC Wire EDM

Mitsubishi Model MV2400S CNC Wire EDM

Sell Your MITSUBISHI MV2400S
513-771-2111
sales@gaec.com
Request Financing
Sell Your MITSUBISHI MV2400S

Overview

Type:
EDM, Wire
Manufacturer:
MITSUBISHI
Model:
MV2400S
Year:
2017
Stock #:
Q12339
Serial #:
56DM2972

Description

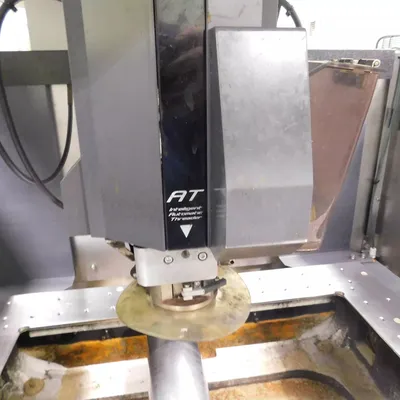

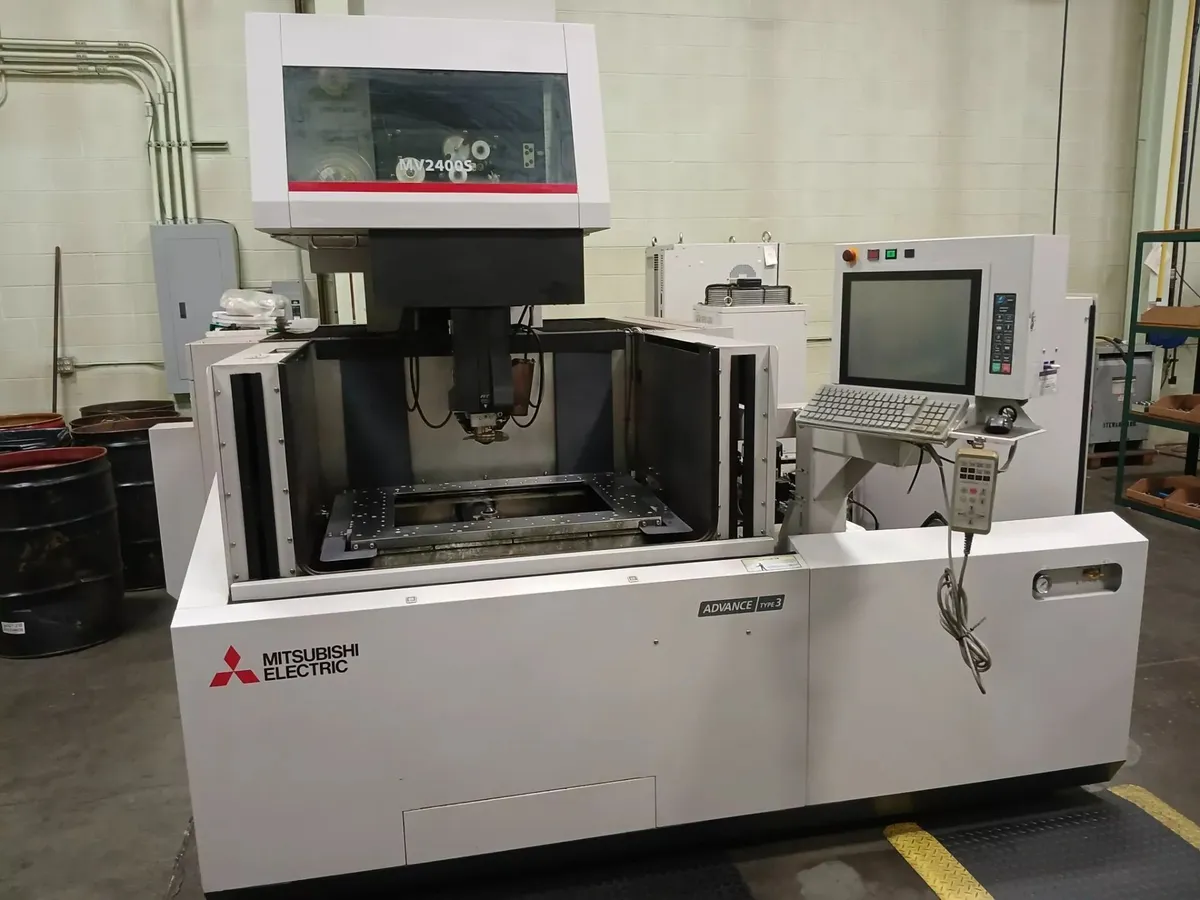

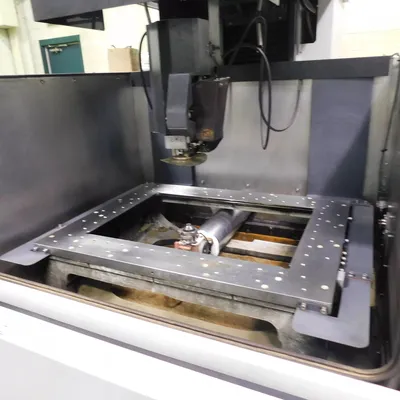

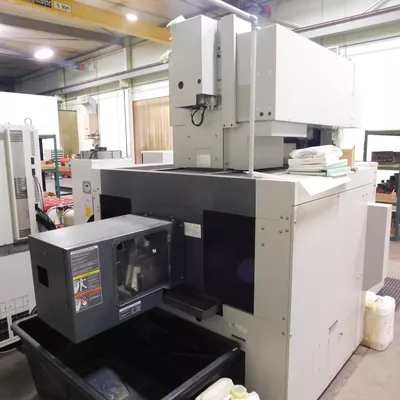

MITSUBISHI MV2400S WIRE EDM, Mitsubishi M800 CNC Control, Max Workpiece Capacity= 41.3" x 32.3" x 12", Travels X=23.6", Y=15.7", Z=12.2", U & V Axis, V350-VAEII Amp Power Supply with digital Spark Control, AT Auto Wire Threader, New 2017.

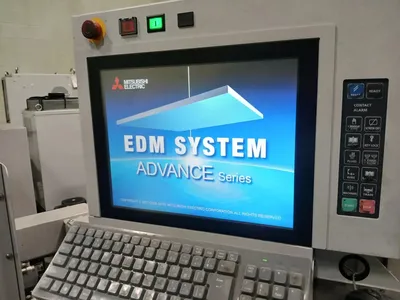

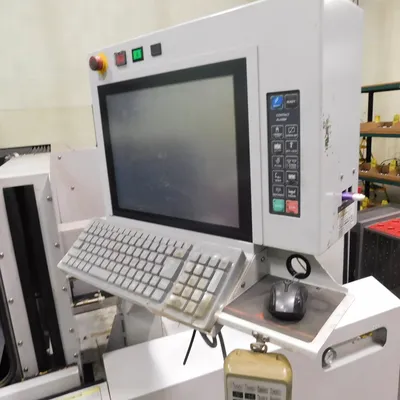

Mitsubishi M800 CNC Control, AT- Auto Threader, Tank capacity 227 gallons, Linear motion guide ways, Linear Glass Scale Feedback X-Y Axis, Excellent Condition- Lower Hours.

ControlCNC (M800)CNC (M800)
ControlMitsubishi M800Mitsubishi M800
Table-L33"838.2 mm
Table-W22"558.8 mm
Max Workpiece Length41.3"1,049 mm
Max Workpiece Width32.3"820.42 mm
Max Workpiece Height12"304.8 mm
Max Workpiece Weight3,307 lb1,500 kg
X-Axis (Longitudinal Travel)23.6"599.44 mm
Y-Axis (Cross Travel)15.7"398.78 mm
Z-Axis (Vertical Travel)12.2"309.88 mm
U-Axis Travel-2.95"-74.93 mm
V-Axis Travel-2.95"-74.93 mm
Max Taper Angle15°15°
Wire Diameter Range0"0 mm
Max Wire Feed Rate51.2 in/min.1,300.5 mm/min.
Max Cutting Speed51.2 in/min.1.3 m/min.
Dielectric Fluid Capacity227 gal0.9 m³
Internal Work Tank Height12.2"309.88 mm
Auto Threading (Yes/No)YesYes
Submerged (Yes/No)YesYes
Dimensions106' x 119" x 84"106' x 119" x 84"
Weight7716 lbs7716 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
