Doosan Puma TW2600M-GL CNC Turning Center with Integrated Gantry Loader & Part Stackers

Doosan Puma TW2600M-GL CNC Turning Center with Integrated Gantry Loader & Part Stackers

Sell Your DOOSAN PUMA TW2600M-GL
513-771-2111
sales@gaec.com
Request Financing
Sell Your DOOSAN PUMA TW2600M-GL

Overview

Type:
Lathes, CNC (3-Axis or More)
Manufacturer:
DOOSAN
Model:
PUMA TW2600M-GL
Year:
2019
Stock #:
Q12293

Description

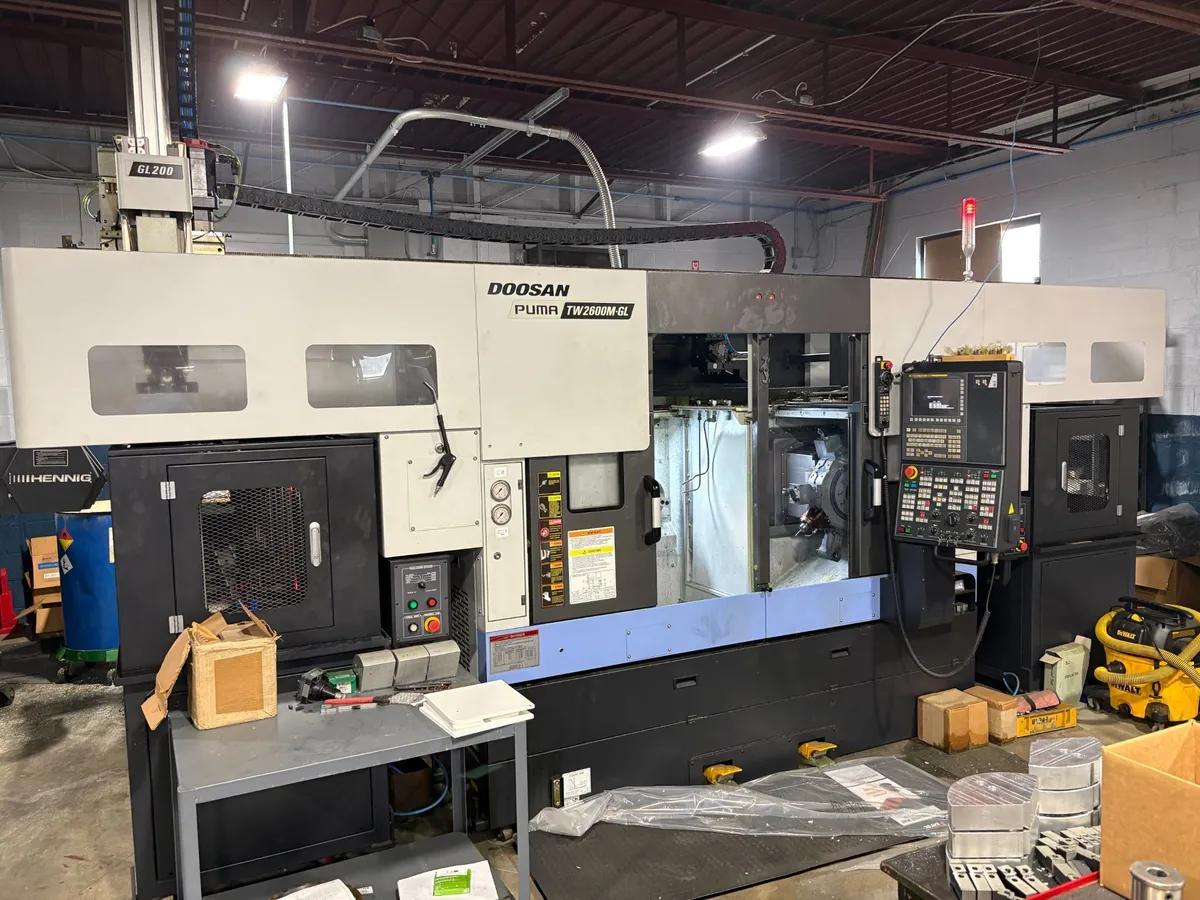

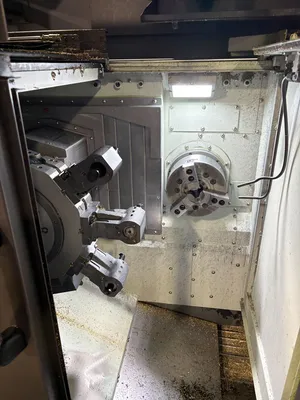

DOOSAN PUMA TW2600M-GL CNC TURNING CENTER, Fanuc i Plus CNC Control, (2) 8" 3-Jaw Chucks, 17.71" Swing, 14.17" Max Turning Diameter, 7" Max Turning Length, 2" Bar Capacity, 3500 RPM, (2) 10-Position Turrets w/ Live Tooling, Chip Conveyor & Coolant System, New 2019.

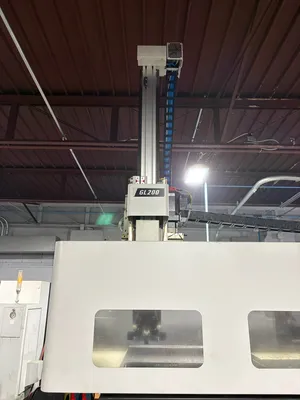

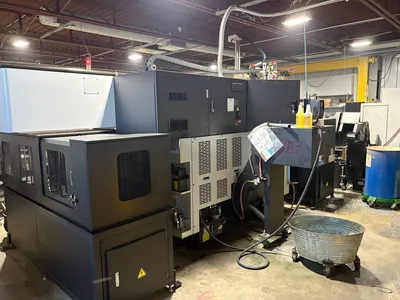

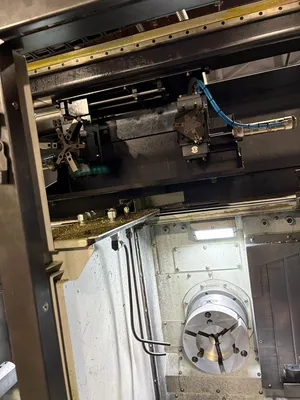

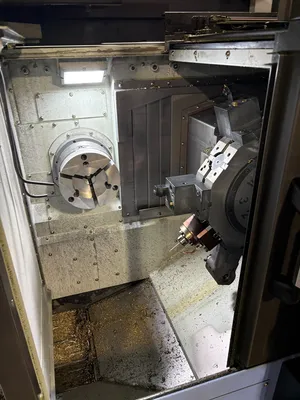

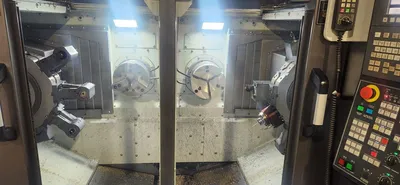

Fanuc i Plus CNC Control, (2) 8" 3-Jaw Chucks, (2) BMT 55 Turrets w/ 10 Stations & Live Tooling, GL200 Gantry Loader w/ Part Flippers, (2) Part Stackers, Chip Conveyor & Coolant System.
*Excellent Condition, only 578 Cutting Hours

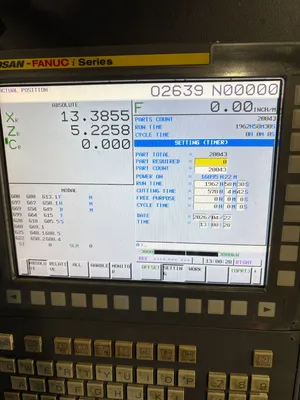

CNC ControlFanuc i Plus CNCFanuc i Plus CNC
# Axis66
Max Swing Over Bed17.71"449.83 mm

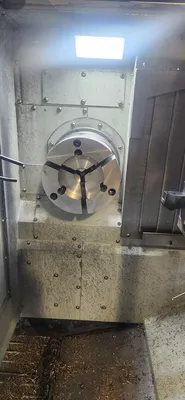

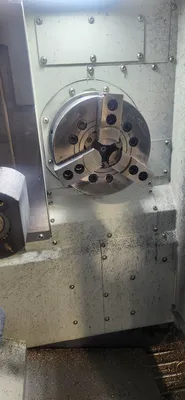

Main Spindle Chuck Size8"203.2 mm
Max Turning Diameter14.17"359.92 mm
Max Turning Length6.69"169.93 mm
Center Distance18.11"459.99 mm
Max Part Weight13 lb5.9 kg
# Turrets22
X-Axis (Cross Travel: Turret)7.5"190.5 mm
Z-Axis (Longitudinal Travel: Turret)7.1"180.34 mm
X2-Axis (Cross Travel of Lower Turret)7.5"190.5 mm
Z2-Axis (Longitud. Travel: Lower Turret)7.1"180.34 mm
Max Bar Capacity2"50.8 mm
Spindle Through Hole2.4"60.96 mm
Spindle NoseA2-6A2-6
Spindle Power25 hp18.6 kW
Max Spindle Speed3,500 RPM3,500 RPM
X-Axis Upper Turret Rapid Traverse Rate945 in/min.24,003 mm/min.
Z-Axis Upper Turret Traverse Rate945 in/min.24,003 mm/min.
X2-Axis Lower Turret Rapid Traverse Rate945 in/min.24 m/min.
Z2-Axis Lower Turret Head Longitudinal Rapid Traverse Rate945 in/min.24 m/min.
Live ToolingYesYes
Max Live Tooling Speed5,000 RPM5,000 RPM
Upper Turret Live Tooling Power10 hp7.5 kW
Upper Turret Positions1010
Lower Turret Positions1010
Lower Turret Live Tooling Power10 hp7.5 kW
Machine Cutting Hours578578
Dimensions152.6" x 106.9" x 133.65"152.6" x 106.9" x 133.65"
Weight16,097 lbs16,097 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

Located in Cincinnati, OH. Buyer Responsible for Loading.
