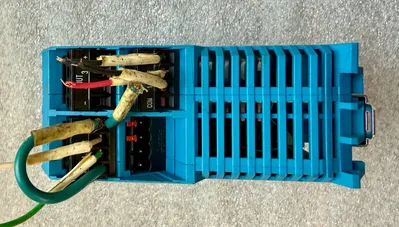

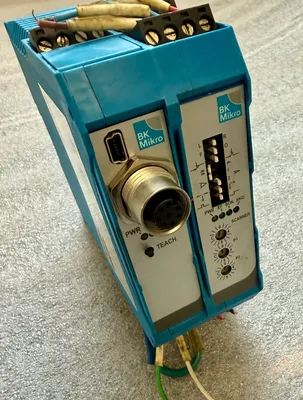

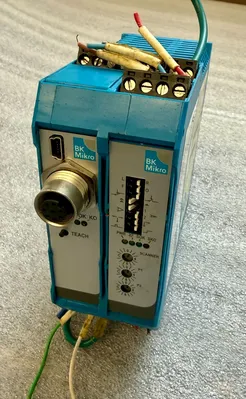

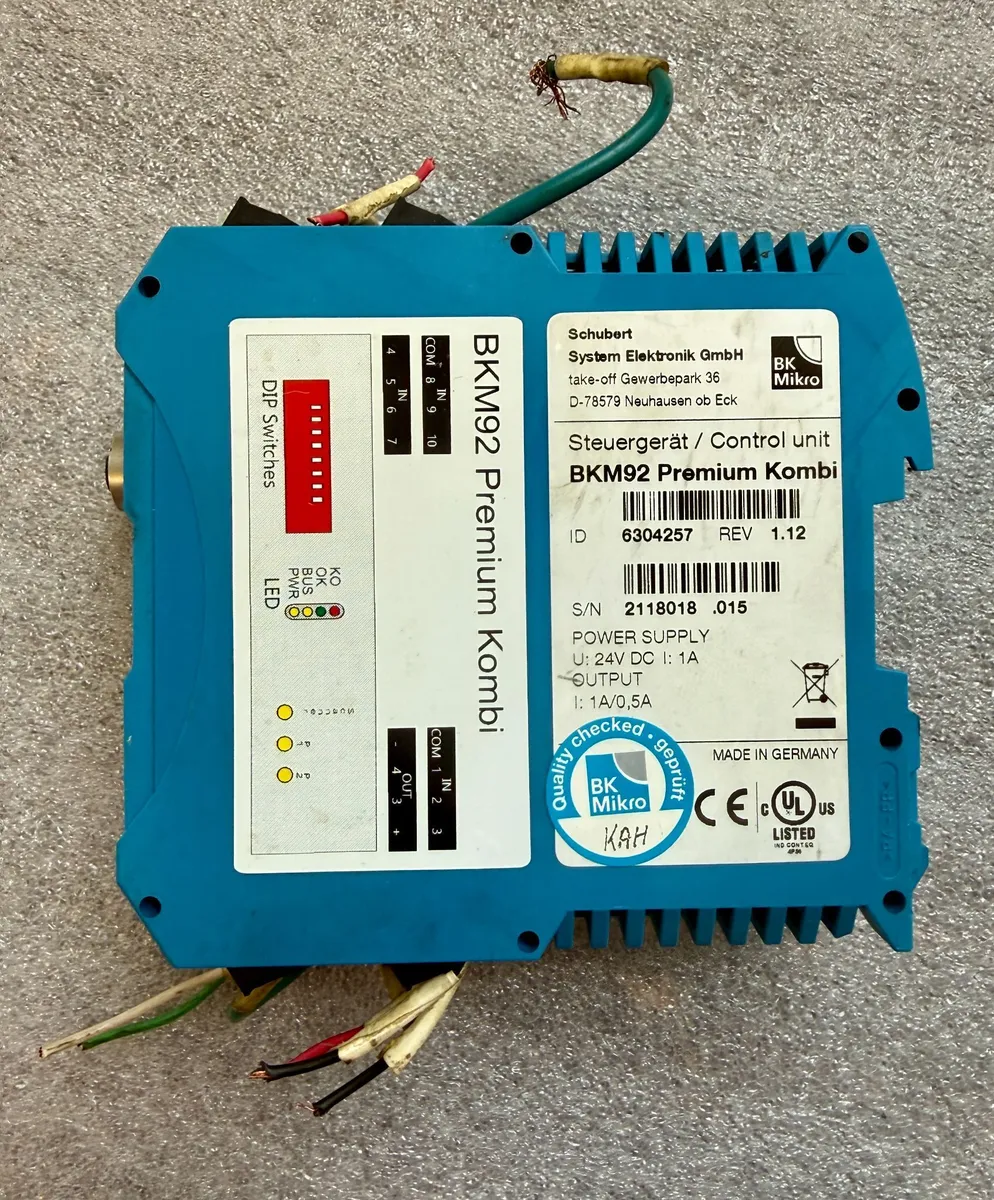

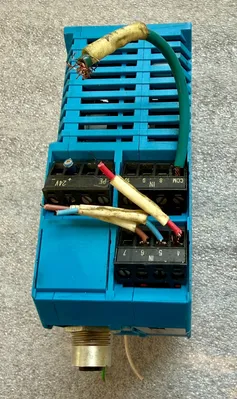

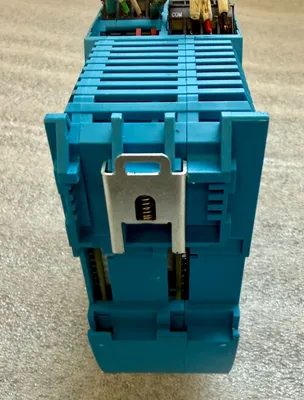

BK Mikro BKM92 Premium Kombi Industrial Tool/Workpiece Monitoring Control Unit
$795.00 USD
BK MIKRO BKM92 PREMIUM KOMBI INDUSTRIAL TOOL/WORKPIECE MONITORING CONTROL UNIT, 24 VDC I/O Interface.
- Mini-USB for PC connection
- Digital control inputs (positive or negative logic):
3 x start and teach signal as well as configurable channel
10 x to select/activate up to 512 different positions
- Digital outputs:
2 x relay (as N/C or N/O contact) with "OK" and "KO" signal
2 x for free configuration (active switching function for 24 V signal)
- 3 rotary switches:
Selection of scanner and feeding in the scanning angles (adjustable in 24°-steps from 0° to 360°)
- 8 toggle switches:
Selection monitoring type (object or free-space monitoring)
Selection rotational direction of wand (right and/or left)
Definition of relay outputs (N/C or N/O)
Setting of scanning intensity (2 steps)
Selection of tolerance range (±0.1° / ±1.0° / ±3.0° / ±10.0°)
- Pluggable supply voltage and scanner connection
- 2 x 4 LEDs for current status display
- Teach button
Inputs:
Galvanically isolated | Input current approx. 5 mA | Pulse duration 30 ms min
Switch Outputs:
2 x electronic relay 24 VDC, 1A max, unlimited switching cycles | 2 x high side switch, Imax = 0.5 A
CONDITION: This Control Unit Appears to be in Excellent Condition !
F.O.B. Cincinnati, OH
