4' x 12" Ooya RE-1225H Radial Drill

Address: 11925 Enterprise Dr,, Cincinnati, OH, 45241-1513, US
Telephone: 513-771-2111

Overview

Type:

Drills, Radial

Manufacturer:

Model:

RE-1225H

Year:

1977

Stock #:

Q12248

Serial #:

0A6-11735

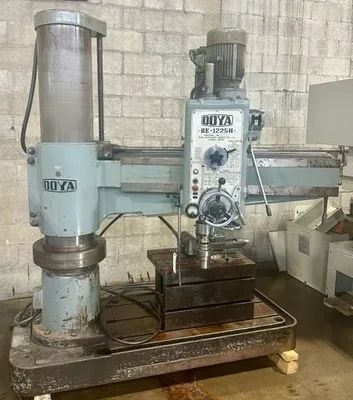

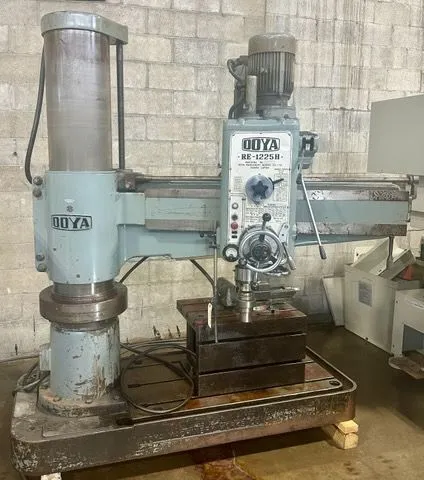

4' x 12" OOYA RE-1225H RADIAL DRILL, 1985 Max Spindle RPM, #5 MT Taper, 5 HP, 75" x 30" Table, Power Elevation, Tapping, Coolant, New 1977.

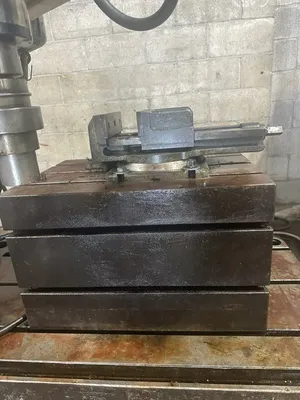

18" x 26" x 16" 2-Sided Box Table w/ Vise, Hardened Arm Ways, Tapping Capabilities, Power Elevation, Power Clamping, Coolant System (Built-In).

ImperialMetric

Arm Length	4.08'	1.2 m

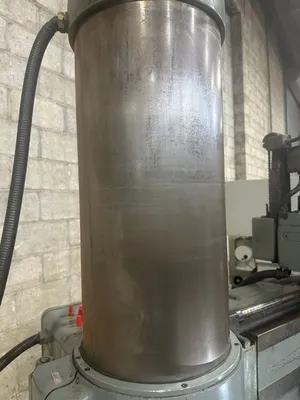

Column Diameter	12.625"	320.67 mm
T-Slotted Base Working Surface-L	75"	1,905 mm
T-Slotted Base Working Surface-W	30"	762 mm
Vertical Spindle Travel in Head	11.813"	300.04 mm
Vertical Arm Travel on Column	25.625"	650.87 mm
Horizontal Head Travel on Arm	37.75"	958.85 mm
Max Distance Spindle to Base	51.75"	1,314.4 mm
Min Distance Spindle to Base	13"	330.2 mm
Max Distance Face of Column to Spindle	49.375"	1,254.1 mm
Min Distance Face of Column to Spindle	11.625"	295.27 mm
Spindle Taper	#5 MT	#5 MT
Spindle Diameter	2.375"	60.325 mm
# Spindle Speeds	12	12
Max Spindle Speed	1,985 RPM	1,985 RPM
Min Spindle Speed	38 RPM	38 RPM
# Spindle Feeds	6	6
Spindle Feeds Range	.003-.039 in/min	0 m/min.
Drilling Capacity, Solid Steel	2"	50.8 mm
Drilling Capacity, Cast Iron	2.25"	57.15 mm
Boring Capacity, Steel	4"	101.6 mm
Boring Capacity, Cast Iron	7.125"	180.97 mm
Motor Power	5 hp	3.7 kW
Electrics	220/440/3/60	220/440/3/60
Extreme Height, Column Above Floor	85.75"	2,178 mm
Dimensions	80" x 48" x 90"	80" x 48" x 90"
Weight	6,100 lbs	6,100 lbs

CONDITION: This Machine Appears to be in Very Good Condition.

F.O.B. Cincinnati, OH
