2022 Nomura NN-20J3XB CNC Swiss-Type Turning Center
Unavailable

2022 Nomura NN-20J3XB CNC Swiss-Type Turning Center

Sell Your NOMURA DS NN-20J3XB
Lathes, CNC, Automatic, Swiss Type
Manufacturer:
NOMURA DS
Model:
NN-20J3XB
Year:
2022
Stock #:
Q12246

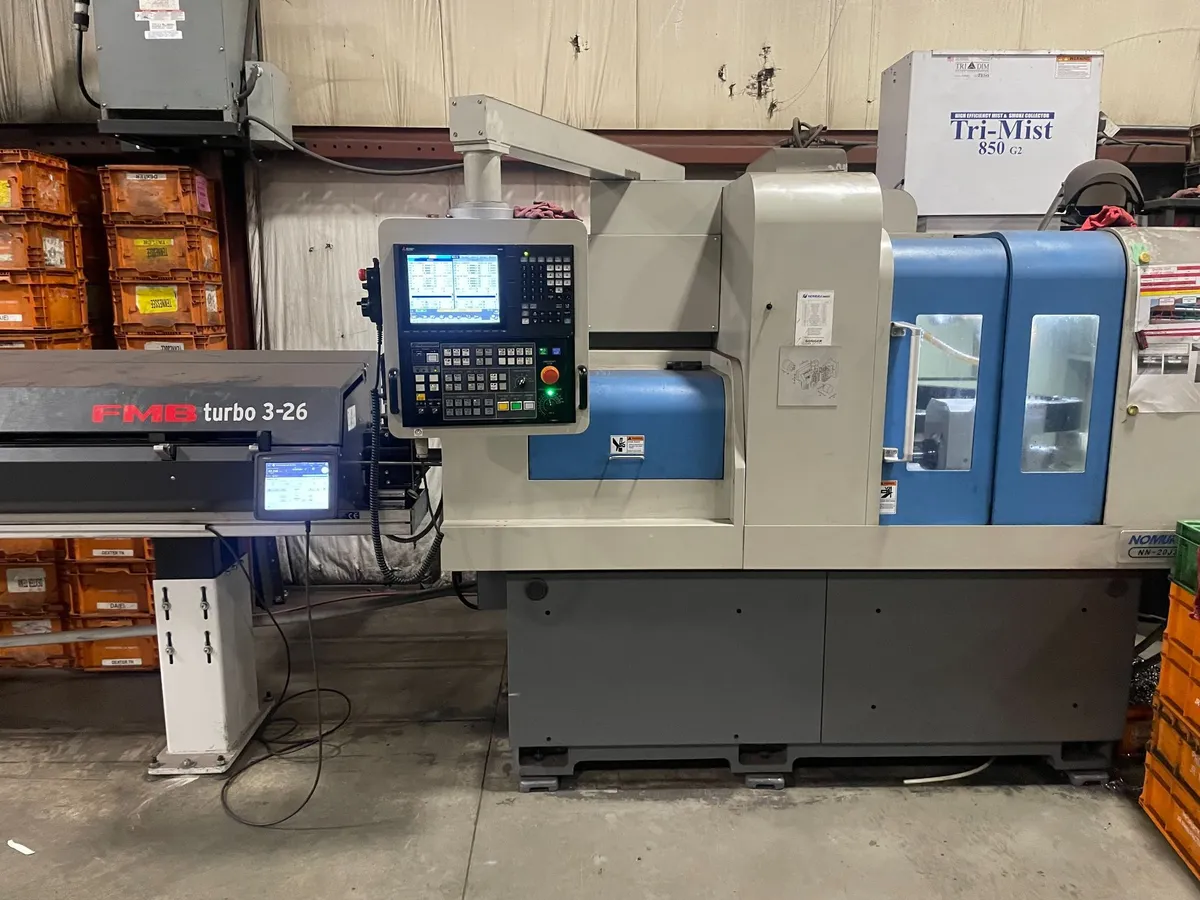

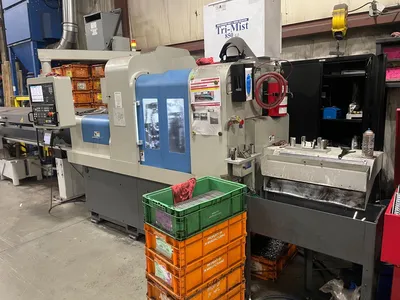

NOMURA NN-20J3XB CNC SWISS-TYPE TURNING CENTER, Mitsubishi M80 CNC Control, 20 mm diameter Max Capacity, 6 OD tools, 4 static front/back drilling stations and 5 live cross drill/mill spindles for the main spindle. The sub-spindle has 3 static back drilling tools, 2 OD tools, 3 live cross drill/mill tools and 3 live off-center drill/mill tools. Both the main and back spindles come standard with a .001° C-Axis. New 2022- Excellent Condition

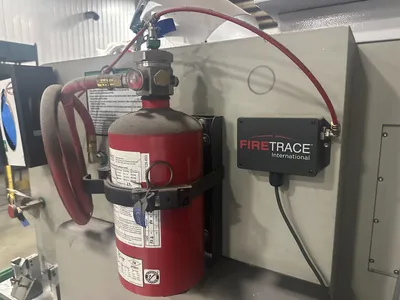

Mitsubishi M80 Type A CNC Control, Tri Mist 850-G2 Mist Collector, 12' Edge FMB Turbo 3-26 Bar Feeder, Parts Catcher & Conveyor.

This 20J3XB is a highly-flexible machine with a sub-spindle that comes standard with 6 OD tools, 4 static front/back drilling stations and 5 live cross drill/mill spindles for the main spindle. The sub-spindle has 3 static back drilling tools, 2 OD tools, 3 live cross drill/mill tools and 3 live off-center drill/mill tools. Both the main and back spindles come standard with a .001° C-Axis.

MACHINING CAPACITY
Max Machining Diameter................... Ø20mm
Max Machining Length..................... 200mm / 1 Chuck
Max Parts Unloading Length............... 93mm

SPINDLE
Main Spindle Through-Hole Diameter....... Ø23mm
Spindle RPM (Main/Sub)................... 10,000 RPM
Sub Spindle Chucking Diameter............ Ø20mm

TOOL
Max Number of Tools...................... 28
Max Machining Drill...................... Ø10mm
Max Machining Tap........................ M8

* MAIN
O.D. Tool.............................. 6 (12.7x150 mm)
I.D. Tool.............................. 4 (ER16) (OP: Rear 4)
Cross Drill............................ 5 (ER16)
Cross Drill RPM........................ 6,000 RPM

* SUB
O.D. Tool.............................. 2 (12.7x150 mm Max)
I.D. Fixed Tool........................ 3 (ER16)
Cross Drill............................ 4 (ER16)(B2 Axis)
Cross Drill RPM........................ 6,000 RPM

FEED
Rapid Feed Rate.......................... X1, Y1, X2, Y2: 28mm/min
Z1, Z2 : 30mm/min
Min Command Unit......................... 0.00001 mm
C-Axis Min Command Unit (Main/Sub)....... 0.00001°

MOTOR
Main Spindle Motor....................... 3.7/1.5 kW
Cross Drill Motor........................ 1.5/0.55 kW (Mitsubishi)
Sub Spindle Motor........................ 3.7/1.5 kW
Sub Rotary Motor......................... 1.5/0.55 kW (Mitsubishi)
Coolant Pump (Main/Sub).................. 0.25 kW x 2
Lubricant Pump........................... 0.015 kW

DIMENSIONS, ETC.
Main Spindle Center Height............... 1,010 mm
Input Power Capacity..................... 17 kVA
Air Pressure/Flow Rate................... 0.6 MPa.35L/min
Coolant Tank............................. 160 L
W x D x H................................ 2,411 x 1,478 x 2,005 mm
Weight (Standard Accessories Included)... 2,800 kg

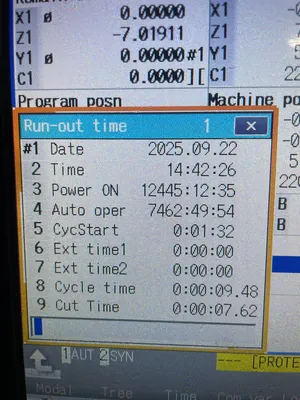

NC
NC Unit.................................. M80 Type A (Mitsubishi)
NC Display............................... 10.4 Color TFT LCD
Memory Capacity.......................... 500KB (Mitsubishi)
No. of Tool Offset....................... 256 Sets (Mitsubishi)

CONDITION: This Machine Appears to be in Excellent Condition !

Located in the Midwest. Buyer Responsible for Loading.
