18" x 45" YCM Supermax LG-1845 Gap Bed Engine Lathe

18" x 45" YCM Supermax LG-1845 Gap Bed Engine Lathe

Sell Your YCM SUPERMAX LG-1845
513-771-2111
sales@gaec.com
Sell Your YCM SUPERMAX LG-1845

Overview

Type:
Lathes, Engine
Manufacturer:
YCM SUPERMAX
Model:
LG-1845
Year:
1989
Stock #:
Q12230
Serial #:
R7804-008

Description

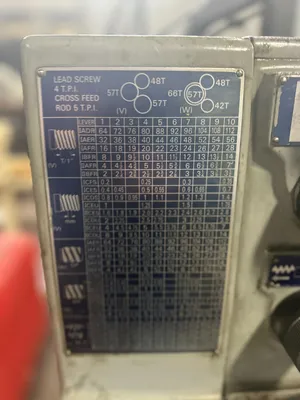

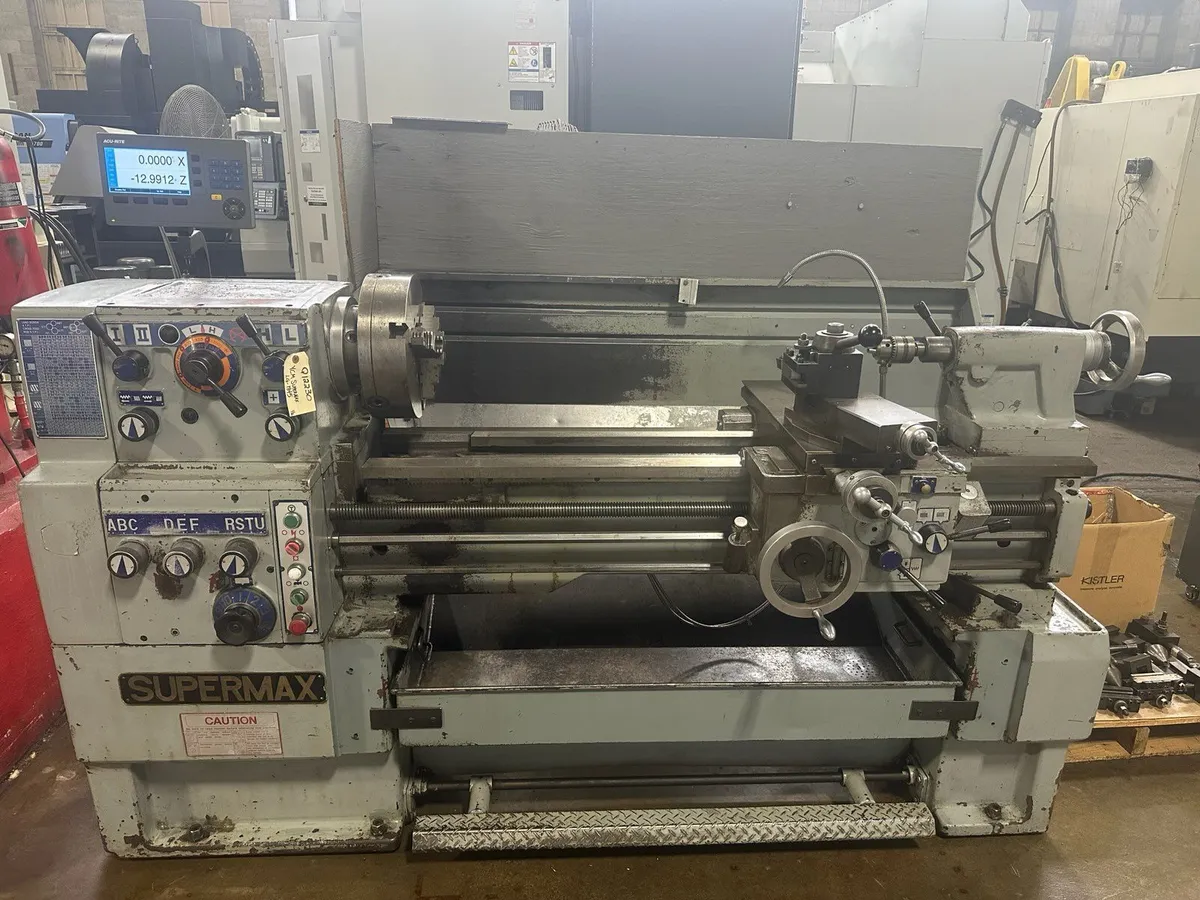

18" x 45" YCM SUPERMAX ENGINE LATHE, Model LG-1845, 18" Swing Over Bed, 11.3" Swing Over Cross Slide, 25.1875" Swing in Gap, 45" Centers, 12" 3-Jaw Chucks, 2.25" Spindle Bore, Tailstock, Inch/Metric Threading, New 1989.

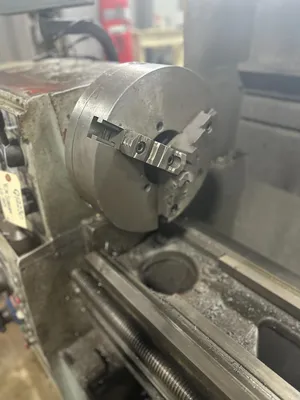

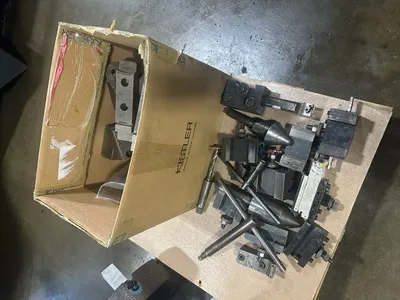

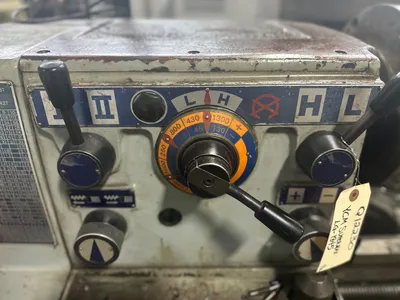

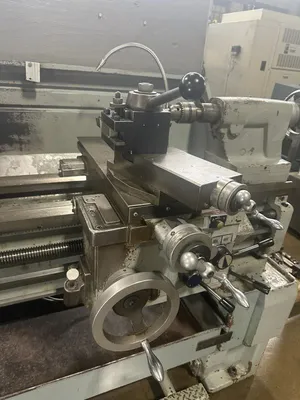

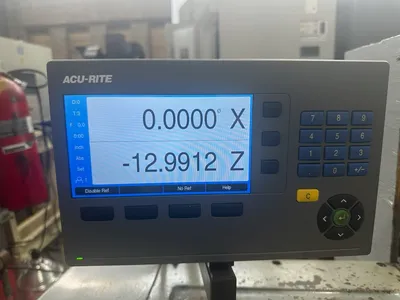

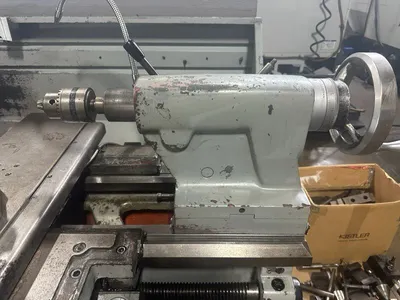

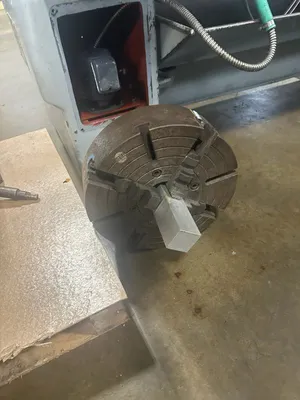

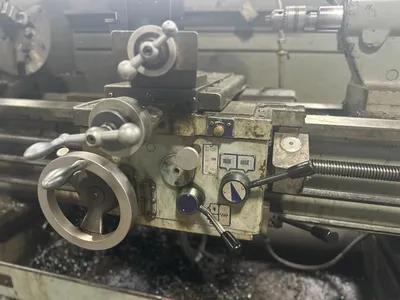

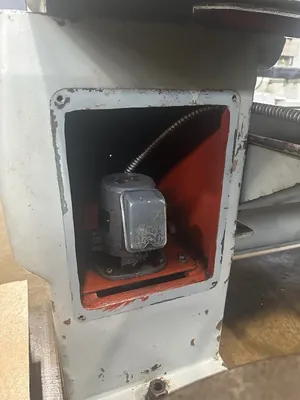

2-Axis Accurite DRO, 12" 3-Jaw Chuck & 12" 4-Jaw Chuck, Geared Spindle, Compound Cross Slide w/ 2-Sided Tool Post, Tailstock, Chip Pan, Built In Coolant Pump, Toolholders and Chuck Jaws Included.

Max Swing Over Bed18"457.2 mm
Max Swing Over Cross Slide11-5/16"287.34 mm
Max Swing in Gap25-3/16"639.76 mm
Distance Between Centers45"1,143 mm
Bed Width11-13/16"300.04 mm
Bed Height13-3/8"339.72 mm
Cross Slide Travel10-7/16"265.11 mm
Spindle NoseA1-6A1-6
Spindle Bore2.25"57.15 mm
# of Spindle Speeds1212
Spindle Speeds Range30 - 2,000 RPM2,000 RPM
# of Threads - Inch6060
Inch Threads2 - 112 TPI2 - 112 TPI
# of Threads - Metric6060
Metric Threads0.2 - 14 mm Pitch
Cross Feeds Range0.0007 - 0.01935 in/rev.0.5 mm/rev
Longitudinal Feeds Range0.0014 - 0.0387 in/rev.1 mm/rev
Tailstock Spindle Travel5-7/8"149.22 mm
Taper of Tailstock CenterNo. 4 MorseNo. 4 Morse
Tailstock Spindle Diameter2-3/8"60.325 mm
Main Motor Power7.5 hp5.6 kW
Coolant Pump Motor1/8 hp0.1 kW
Dimensions96" x 43" x 49"96" x 43" x 49"
Weight4,762 lbs4,762 lbs

CONDITION: This Machine Appears to be in Very Good Condition.

F.O.B. Cincinnati, OH
