Haas SL-20 CNC Turning Center

Haas SL-20 CNC Turning Center

Sell Your HAAS SL-20
513-771-2111
sales@gaec.com
Request Financing
Sell Your HAAS SL-20

Overview

Type:
Lathes, CNC
Manufacturer:
HAAS
Model:
SL-20
Year:
2007
Stock #:
Q12224
Serial #:
3078502

Description

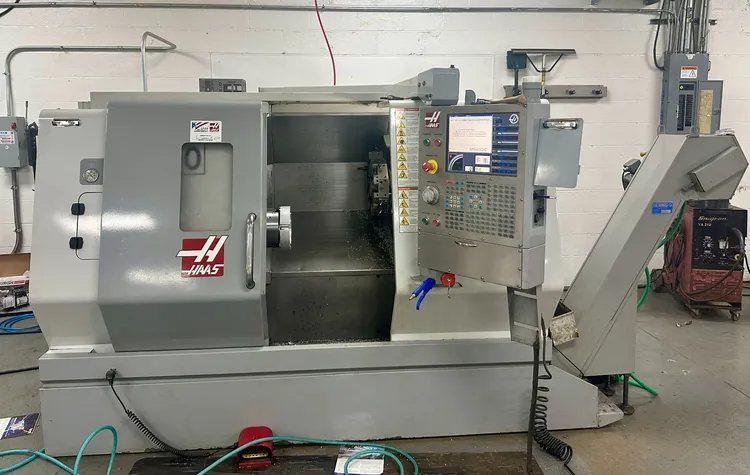

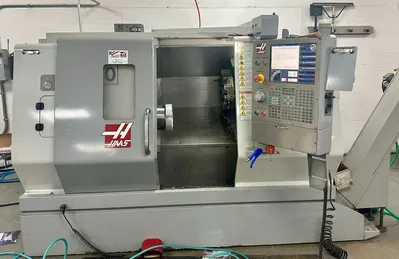

HAAS SL-20 CNC TURNING CENTER, Haas CNC Control, 8" 3-Jaw Chuck, 23" Swing, 20" Max Turning Length, 2" Bar Capacity, 20 HP, 4000 RPM, 10-Position Turret, Chip Conveyor, New 2007.

Haas CNC Control, 8" Kitagawa B-208 3-Jaw Chuck, 2" Bar Capacity, 10 Position Turret, No Tailstock, Chip Conveyor & Coolant System.

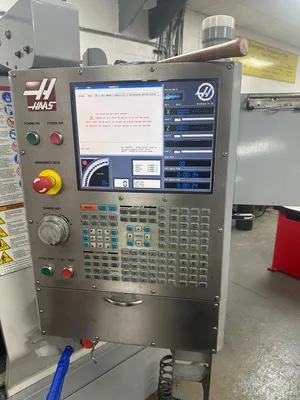

CNC ControlHaas CNCHaas CNC
# Axis22
Max Swing Over Bed23"584.2 mm
Max Swing Over Cross Slide9.5"241.3 mm
Max Machining Diameter10.3"261.62 mm
Max Turning Length20"508 mm
Chuck Size8" 3-Jaw203.2 mm
Max Distance Between Centers24"609.6 mm
Max Turning Diameter10.3"261.62 mm
X-Axis (Cross Travel)8.45"214.63 mm
Z-Axis (Longitudinal Travel)20"508 mm
X-Axis Rapid Traverse Rate1,200 in/min.30.5 m/min.
# Tool Turrets11
Tool Turret Positions1010
Spindle NoseA2-6A2-6
Bar Capacity2"50.8 mm
Max Spindle Speed4,000 RPM4,000 RPM
Spindle Power20 hp14.9 kW
TailstockNoNo
Electrics208-230 / 3 / 60208-230 / 3 / 60
Weight9,000 lbs9,000 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
