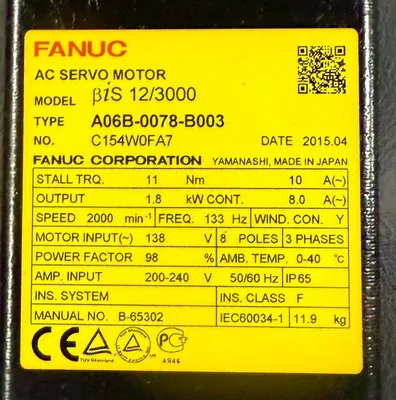

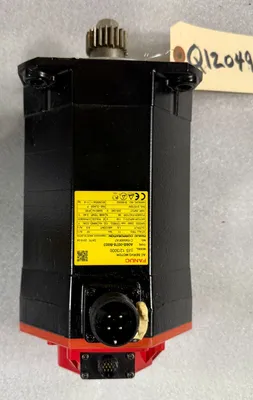

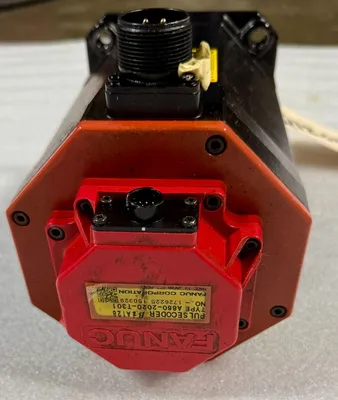

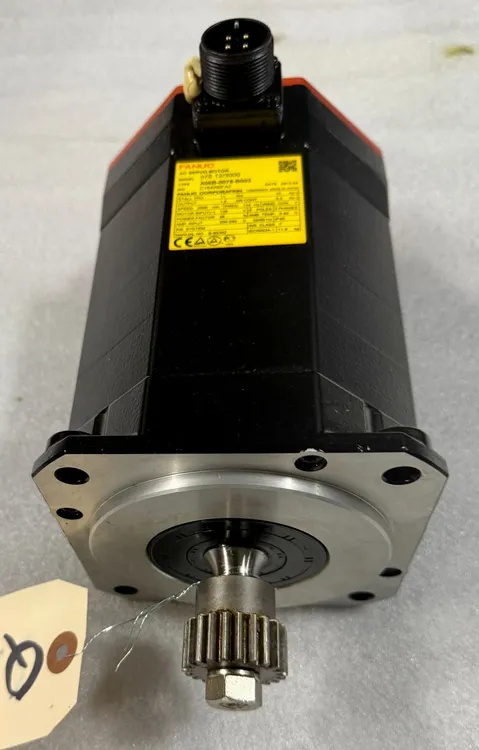

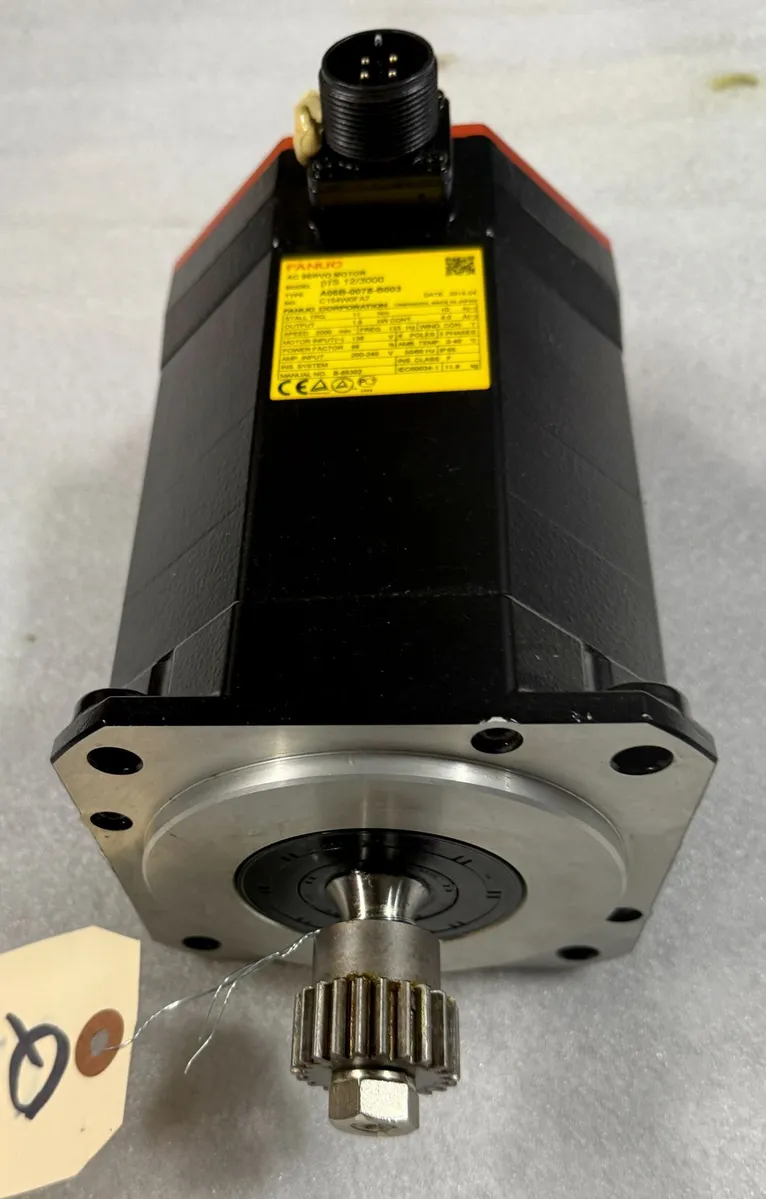

FANUC A06B-0078-B003 AC SERVO MOTOR, BiS 12/3000, 200-240 V, 2000 RPM
CONDITION: This Servo Motor Appears to be in Excellent Condition !
F.O.B. Cincinnati, OH
FANUC A06B-0078-B003 AC SERVO MOTOR, BiS 12/3000, 200-240 V, 2000 RPM
Imperial
| Current Type | AC |
| Torque (Stall) | 2.5 lbf |
| Amp (Stall) | 10 A |
| # Poles | 8 |
| Max Speed | 2,000 RPM |
| Ambient Temperature | 104°F |
| Power Factor | 98% |
| Frequency | 133 Hz |
| Motor Phase | 3-Phase |
| Power | 2.4 hp |
| Insulation Class | F (Max 155° C / 311° F) |
| Enclosure Rating | IP65 |
| Manual No | B-65302 |
| Standards | IEC60034-1 |
| Dimensions | 15" x 10" x 11" |
| Weight | 31 LBS |
CONDITION: This Servo Motor Appears to be in Excellent Condition !
F.O.B. Cincinnati, OH
