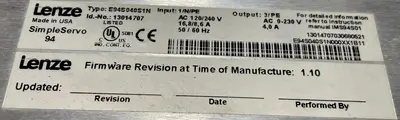

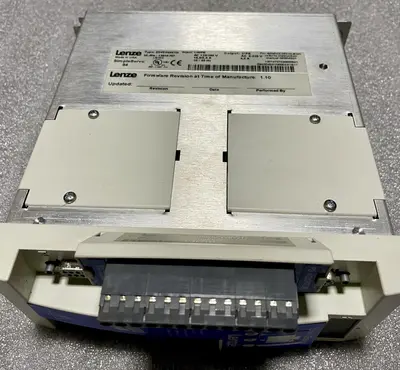

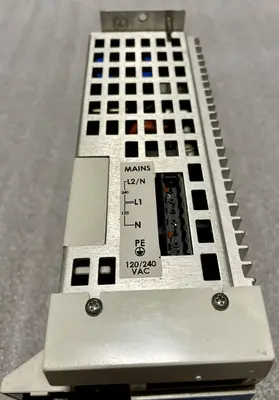

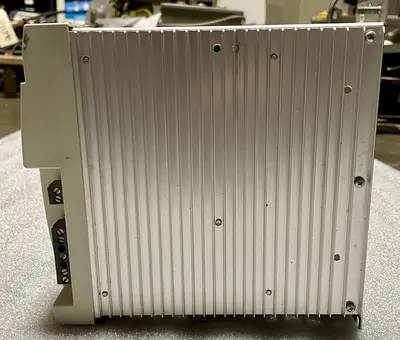

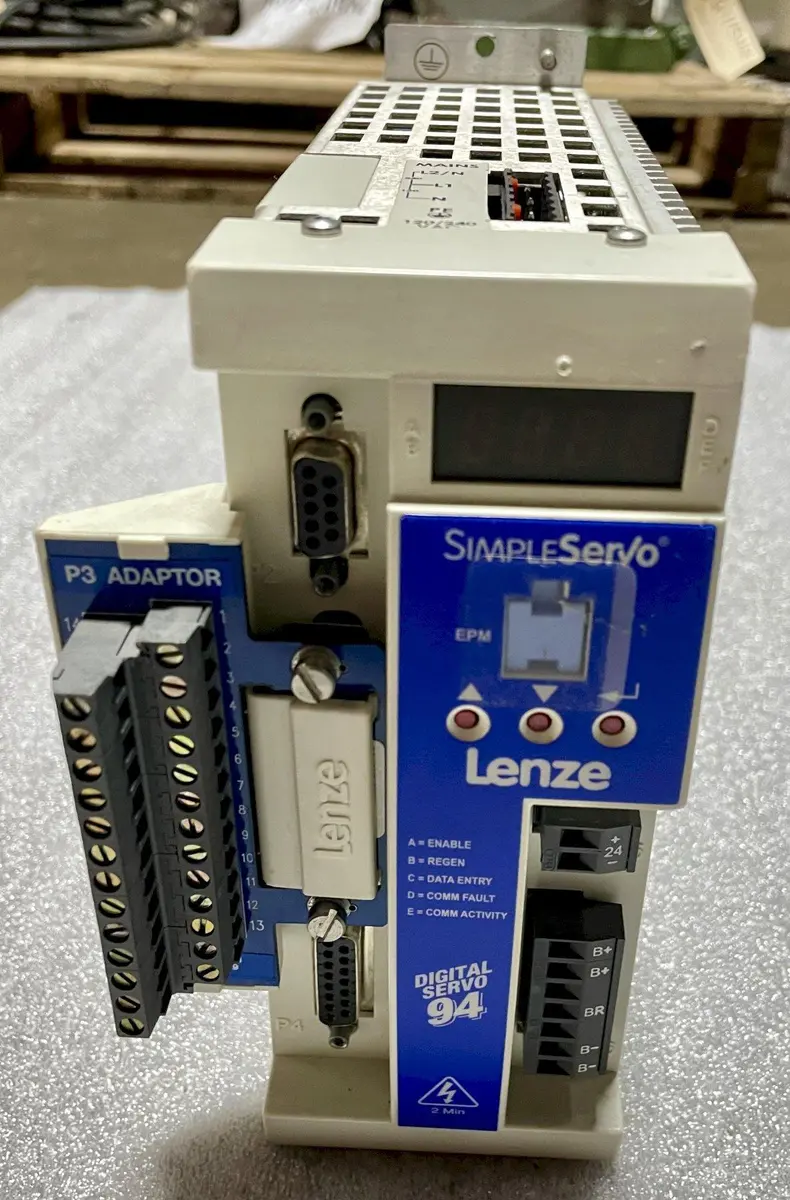

LENZE E94S040S1N POSITION SERVO DRIVE, 4A Output, Single Phase Input, 120 VAC Doubler Input.
No Line Filter

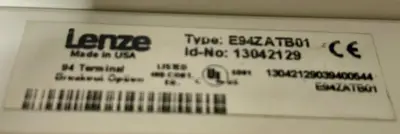

Includes E94ZATB01 Terminal Block I/O Module, 94 Series
Product Type
SimpleServo Model 94
SimpleServo Model 94
Function
Position Servo Drive
Position Servo Drive
Input Voltage
120 VAC Doubler (120V-1~ in/240V-3~ out)
120 V
Output Voltage
0-230 VAC
230 V
Amperage
16.8 / 8.6 A
16.8 A
Motor Rated Current: Feed Amperage
8.6 A
8.6 A
Rated Output Current
4 A
4 A
Dimensions
11" x 8" x 11"
11" x 8" x 11"
Weight
8 LBS
8 LBS
