Doosan Puma 240L 2-Axis CNC Turning Center

Doosan Puma 240L 2-Axis CNC Turning Center

Sell Your DOOSAN PUMA 240L
513-771-2111
sales@gaec.com
Request Financing
Sell Your DOOSAN PUMA 240L

Overview

Type:
Lathes, CNC
Manufacturer:
DOOSAN
Model:
PUMA 240L
Year:
2004
Stock #:
Q12110
Status:
For Sale
Serial #:
CT3000898

Description

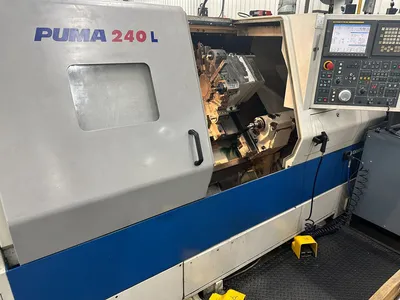

Doosan Puma 240L CNC Turning Center, Fanuc 21i-TB CNC Control, 10" 3-Jaw Chuck, 22.4" Swing, 25.5" Between Centers, 3.03" Bar Capacity, 25 HP, 3500 RPM, 12 Position Turret, Tool Setter, Chip Conveyor & Coolant System, New 2004.

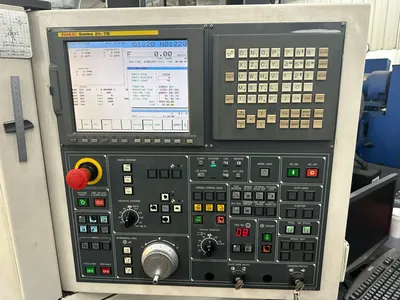

Fanuc 21i-TB CNC Control, 10" 3-Jaw Hydraulic Chuck, Tool Presetter, Tailstock, Foot Pedal Chuck Clamp/Unclamp, Mist Collector, Chip Conveyor & Coolant System.

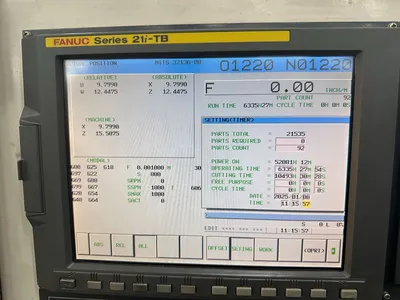

CNC ControlFanuc 21i-TB CNCFanuc 21i-TB CNC
# Axis22
Max Swing Over Bed22.4"568.96 mm
Max Turning Length23.6"599.44 mm
Chuck Size10" 3-Jaw254 mm
Max Distance Between Centers25.5"647.7 mm
X-Axis (Cross Travel)14"355.6 mm
Z-Axis (Longitudinal Travel)24"609.6 mm
X-Axis Rapid Traverse Rate945 in/min.24 m/min.
Z-Axis Rapid Traverse Rate945 in/min.24 m/min.
# Tool Turrets11
Tool Turret Positions1212
Bar Capacity3.03"76.962 mm
Max Spindle Speed3,500 RPM3,500 RPM
Spindle Power25 hp18.6 kW
TailstockYesYes
Electrics220/3/60220/3/60
Dimensions133" x 65" x 68"133" x 65" x 68"
Weight9,500 LBS9,500 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
