Overview

Type:
Machining Centers, Vertical
Manufacturer:
HAAS
Model:
TM-2P
Year:
2014
Stock #:
Q12105
Status:
For Sale
Serial #:
1109814

Description

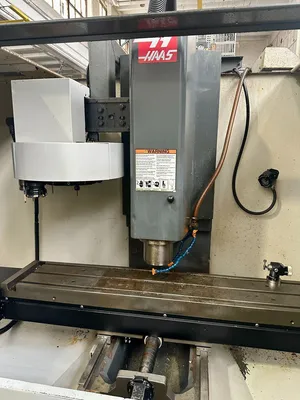

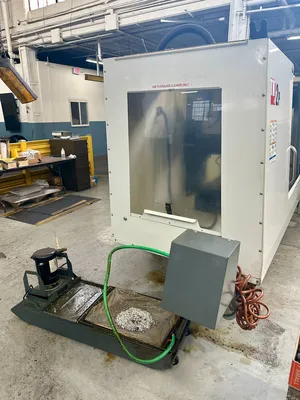

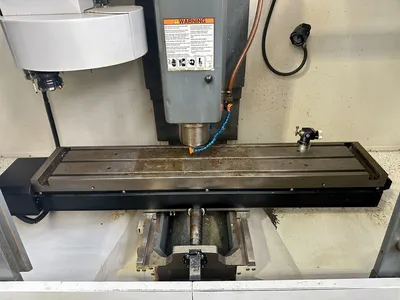

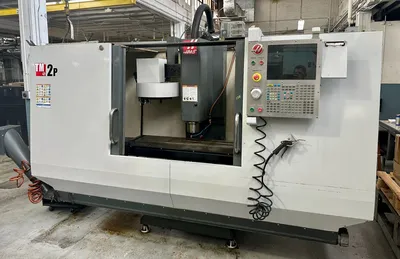

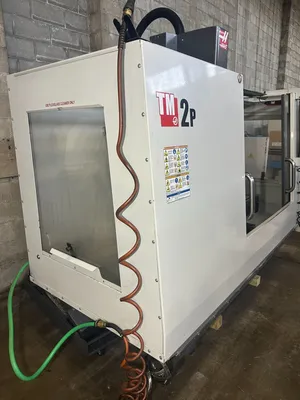

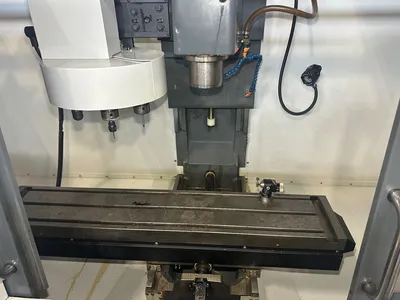

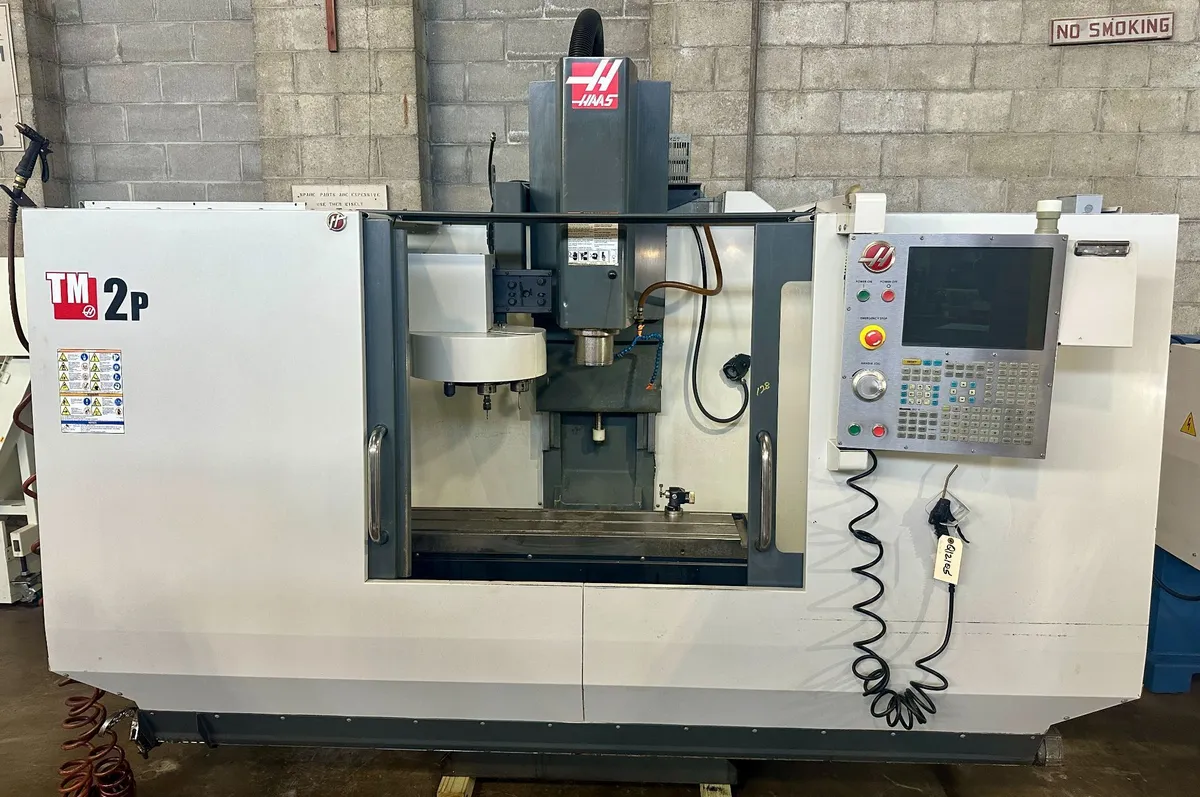

Haas TM-2P CNC Vertical Machining Center, Haas CNC Control, 57.75" x 10.5" Table, X=40", Y=16", Z=16", CAT 40 Taper, 7.5 HP, 6000 Max Spindle RPM, 10 ATC, Tool & Part Probe, Chip Auger & Coolant System, New 2014.

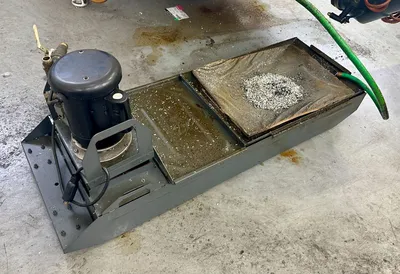

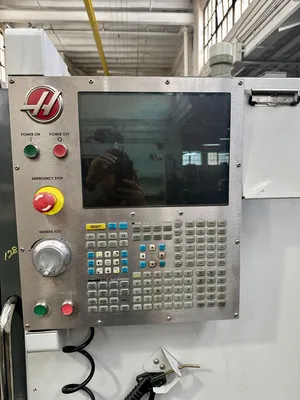

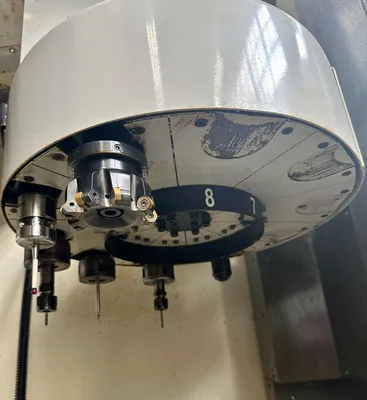

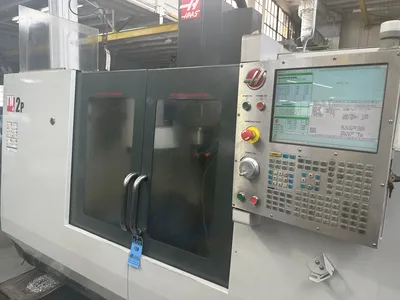

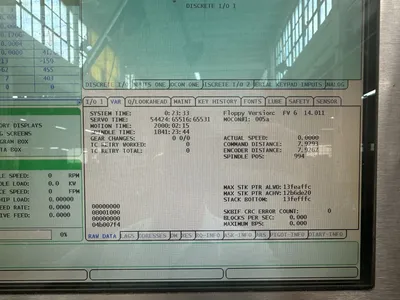

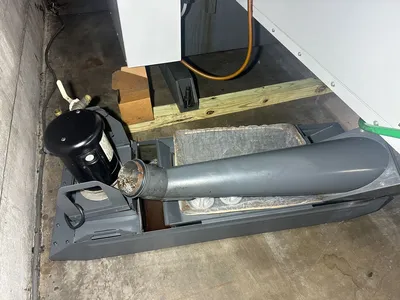

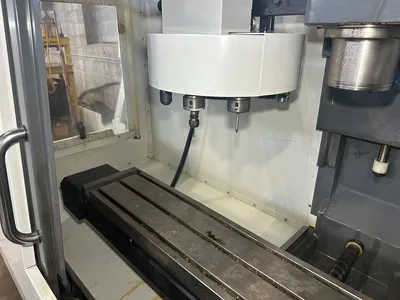

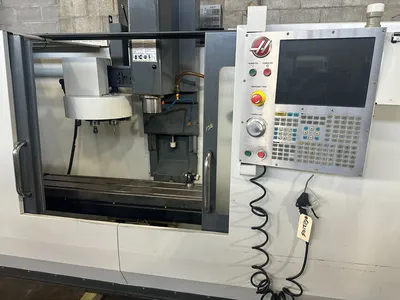

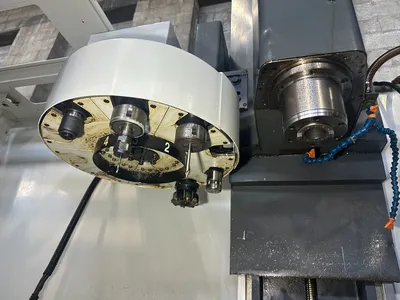

Haas CNC Control with 15" Color LCD Monitor w/ USB Port, 10-Station Automatic Tool Changer, 6000 RPM Spindle, Tool & Part Probe, Coolant Nozzle, Coolant System with Tank & Pump.

CNC ControlHaas CNCHaas CNC
# Axis33
Table-L57.75"1,466.8 mm
Table-W10.5"266.7 mm
Max Table Load Capacity1,000 lb453.6 kg
X-Axis (Longitudinal Travel)40"1,016 mm
Y-Axis (Cross Travel)16"406.4 mm
Z-Axis (Vertical Travel)16"406.4 mm
Max Clearance Tabletop to Spindle Nose20"508 mm
Min Clearance Tabletop to Spindle Nose4"101.6 mm
Rapid Traverse Rate (X, Y, & Z Axis)400 in/min.10.2 m/min.
Spindle Power7.5 hp5.6 kW
Max Spindle Speed6,000 RPM6,000 RPM
Spindle TaperCAT 40CAT 40
Torque, Up To33 FT-LB @ 1200 RPM146.8 N
Automatic Tool Changer Capacity (ATC)1010
Automatic Tool Changer StyleCarouselCarousel
Tool Change Time5.7 sec.5.7 sec.

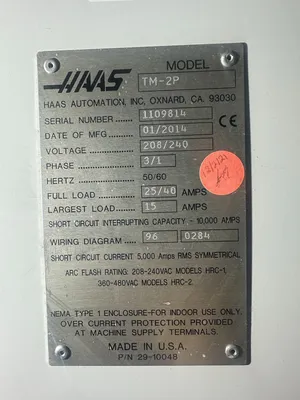

Electrics208-240/3/60208-240/3/60
Dimensions121" x 87" x 105"121" x 87" x 105"
Weight5,060 LBS5,060 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
