Tsugami B0385L CNC Swiss Turning Center

Sell Your TSUGAMI B0385L
513-771-2111
sales@gaec.com
Request Financing
Sell Your TSUGAMI B0385L

Overview

Type:
CNC Precision Automatic Lathes
Manufacturer:
TSUGAMI
Model:
B0385L
Year:
2011
Stock #:
Q12108
Status:
For Sale

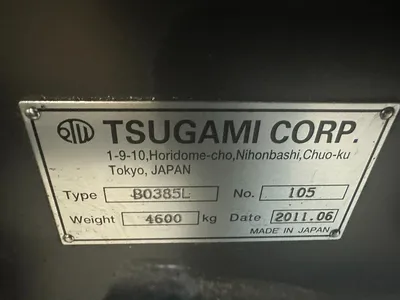

Serial #:
105

Description

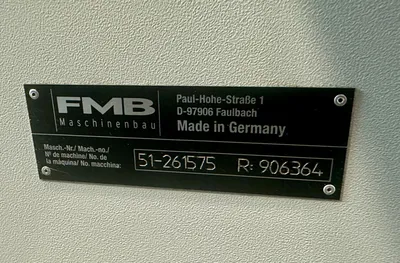

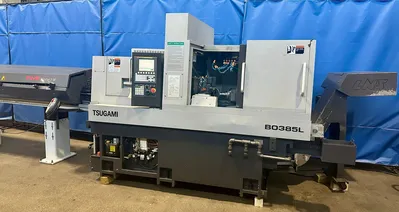

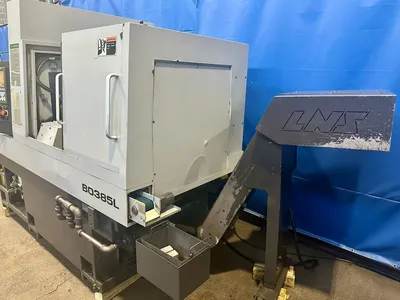

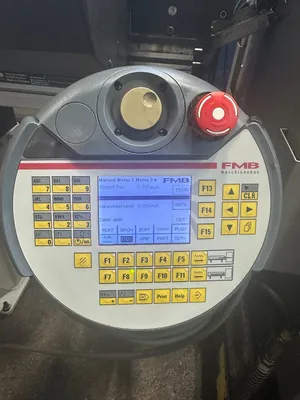

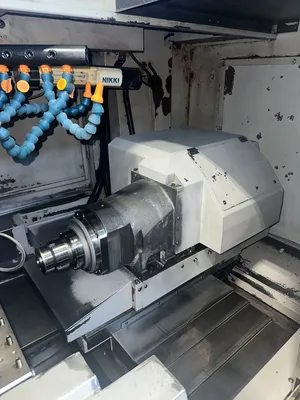

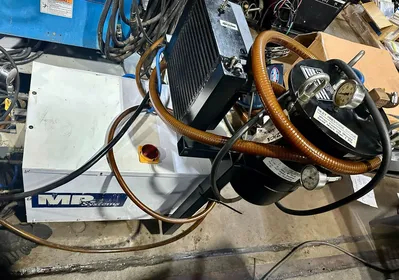

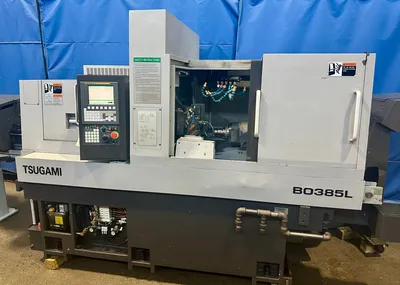

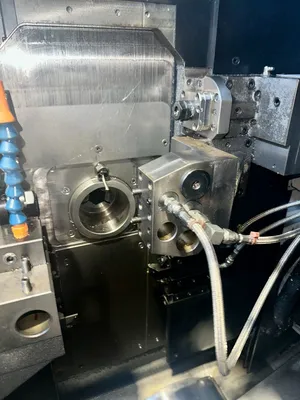

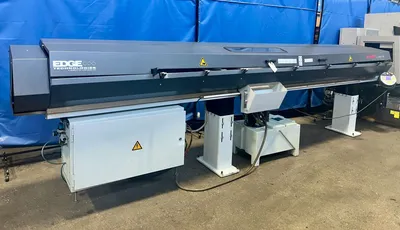

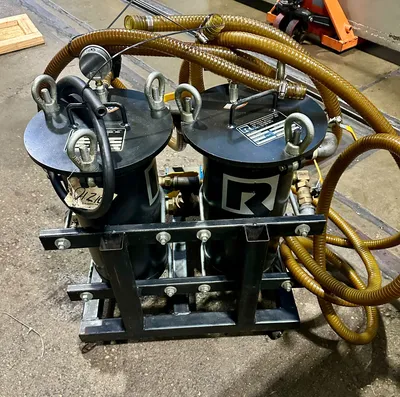

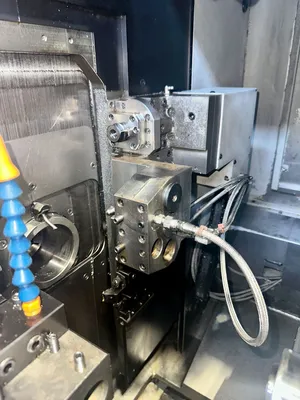

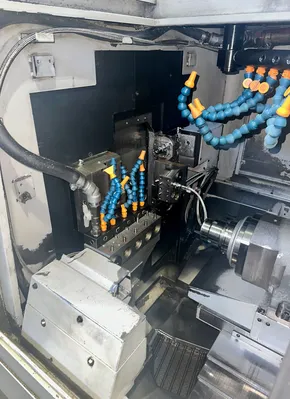

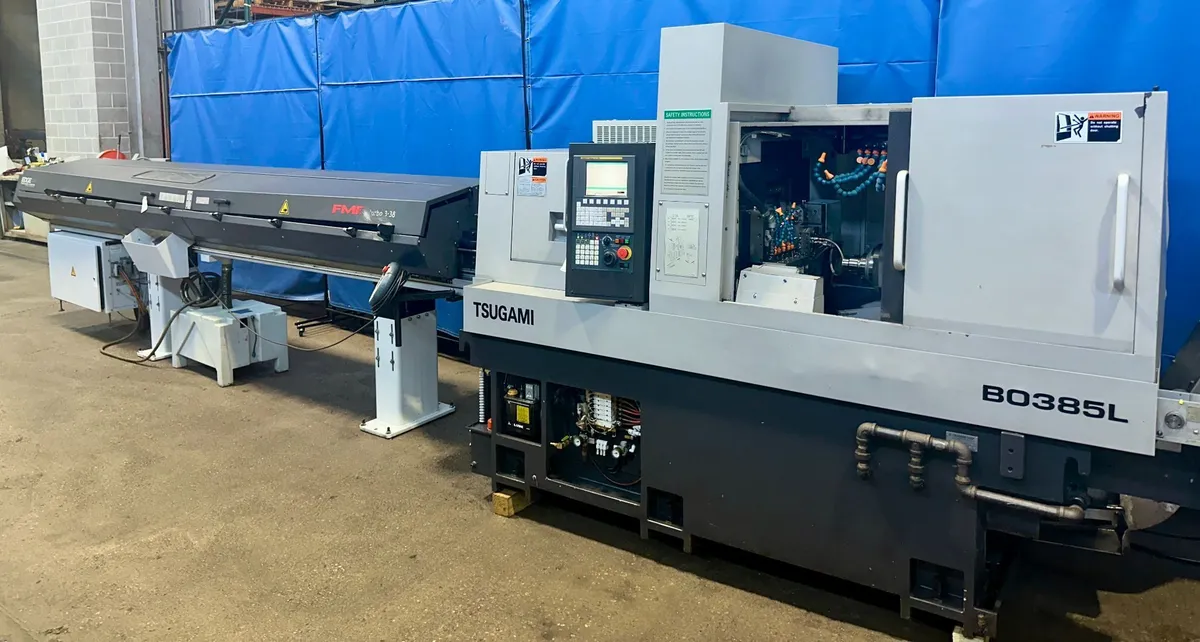

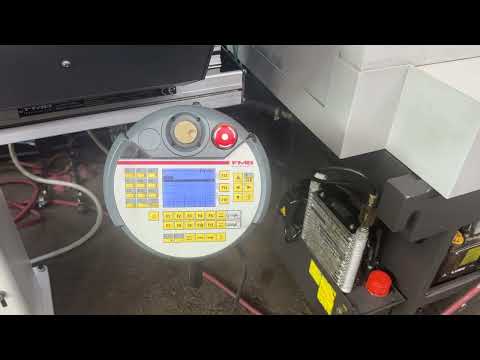

Tsugami B0385L 5-Axis CNC Swiss Turning Center, Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Rosedale Coolant Filters, Coolant Tank & LNS Chip Conveyor, New 2011

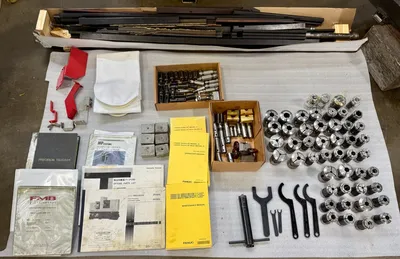

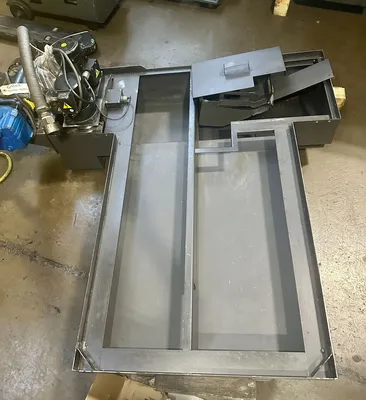

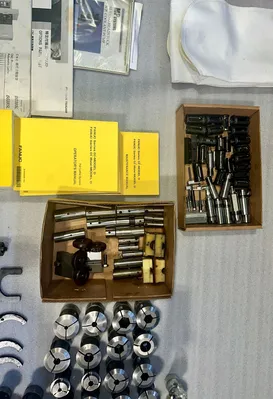

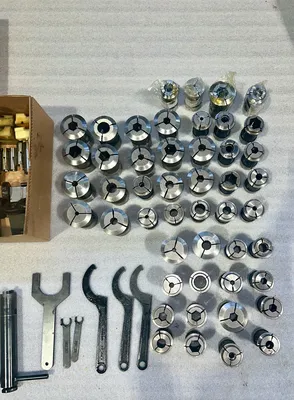

Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Coolant Tank & LNS Chip Conveyor, 48 Collets & 10 Toolholders (4 Live) Included, New 2011.

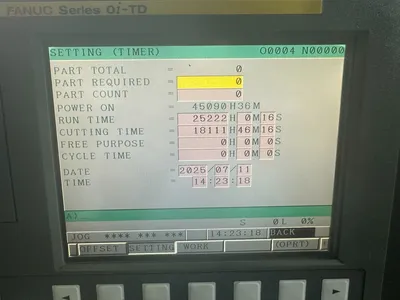

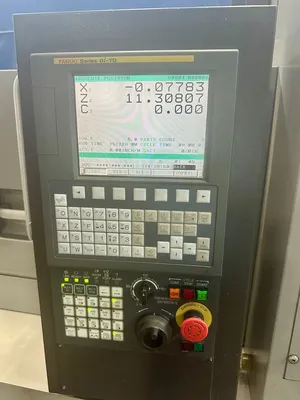

Hours as of 7/31/2025 (as in photo):
* Power On: 45,090 Hours
* Cutting Time: 18,111 Hours

*** Replacement Cost for This Equipped System If Purchased New Today: $300,000

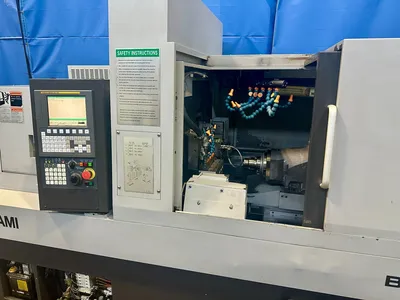

CNC ControlFanuc 0i-TD CNCFanuc 0i-TD CNC
# Axis55
Max Working Barstock Diameter1.4961"38.001 mm
Max Workpiece Length3.937"100 mm
Max Drilling Diameter Main Spindle0.5118"13 mm
Max Tapping Diameter Main SpindleM12M12
Max Barstock Diameter Back Spindle1.4961"38.001 mm
Max Drilling Diameter Back Spindle0.4724"11.999 mm
Max Tapping Diameter Back SpindleM12M12
Max Drilling Diameter Tool Spindle0.3937"10 mm
Max Tapping Diameter Tool SpindleM8M8
Max Slotting Cutter Diam. Tool Spindle1.7717"45.001 mm
Main Spindle Speed Range200 - 6,000 RPM6,000 RPM
Back Spindle Speed Range200 - 7,000 RPM7,000 RPM
Tool Spindle Speed Range200 - 5,000 RPM5,000 RPM
Total Tool Storage Capacity2323
Tool Size.787" x .787" x 4.92".787" x .787" x 4.92"
X1-Axis Rapid Traverse Rate944.9 in/min.24,000.4 mm/min.
Y1-Axis Rapid Traverse Rate944.9 in/min.24,000.4 mm/min.
Z1-Axis Rapid Traverse Rate944.9 in/min.24,000.4 mm/min.
X2-Axis Rapid Traverse Rate1,259.8 in/min.31,998.9 mm/min.
Spindle IndexC1 Axis and C2 AxisC1 Axis and C2 Axis
Main Spindle Power14.8 hp11 kW
Back Spindle Power7.4 hp5.5 kW
Cross Drill of Front Tool Post Power1.3 hp1 kW
Cross Drill of Rear Tool Post Drive1.3 hp1 kW
Z1 Axis Power1.6 hp1.2 kW
X1 Axis Power1 hp0.7 kW
Y1 Axis Power1 hp0.7 kW
X2 Axis Power3.4 hp2.5 kW
Z2 Axis Power3.4 hp2.5 kW
Coolant Pump Power0.8 hp0.6 kW
Lubricating Oil Pump Power0.004 hp0 kW
Power Source Requirement30 kV·A30 kV·A
Compressed Air Requirement58 PSI4 bar
Air Discharge Rate3.5 SCFM99.1 L/min.
Coolant Tank Capacity51.5 gal194.9 L
Dimensions99.2" x 52.95" x 77.56"99.2" x 52.95" x 77.56"
Weight10,150 lbs10,150 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
