Equipment
Motors
Servo Motors
FANUC A06B-0061-B003

FANUC A06B-0061-B003 | Servo Motors

Sell Your FANUC A06B-0061-B003
513-771-2111
sales@gaec.com
$425.00 USD
Sell Your FANUC A06B-0061-B003

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0061-B003
Stock #:
Q12081
Status:
For Sale

Description

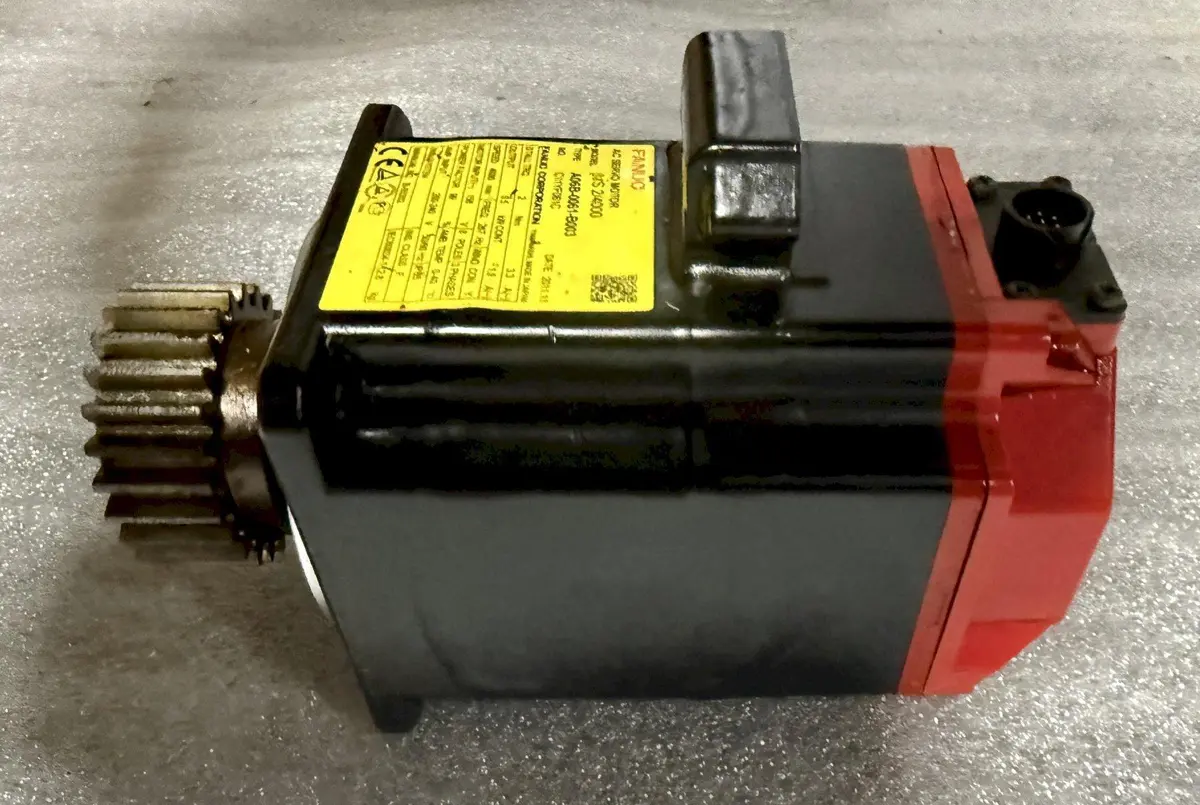

FANUC A06B-0061-B003 AC SERVO MOTOR, Model BiS 2/4000

Tapered Shaft, B128IA

Current TypeACAC
Torque (Stall)1.5 lbf6.6 N
Amp (Stall)3.3 A3.3 A
Voltage156 V156 V
# Poles88
Max Speed4,000 RPM4,000 RPM
Ambient Temperature104°F40°C
Power Factor99%99%
Frequency267 Hz267 Hz
Motor Phase-3-3
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
EncoderB128IAB128IA
Manual NoB-65302B-65302
StandardsIEC60034-1IEC60034-1
Dimensions12 x 10 x 912 x 10 x 9
Weight17 LBS17 LBS

Current Type: AC
Torque (Stall): 2 Nm
Amp (Stall): 3.3 A
Voltage: 156 V
# Poles: 8
Max Speed: 4,000 RPM
Ambient: 40° C
Power Factor: 99%
Frequency: 267 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 12" x 10"
Approximate Height: 9"
Approximate Weight: 17 LBS

CONDITION: This Servo Motor Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
