FANUC A06B-0075-B403

FANUC A06B-0075-B403 | Servo Motors

Sell Your FANUC A06B-0075-B403
513-771-2111
sales@gaec.com
$395.00 USD
Sell Your FANUC A06B-0075-B403

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0075-B403
Stock #:
Q12082
Status:
For Sale

Description

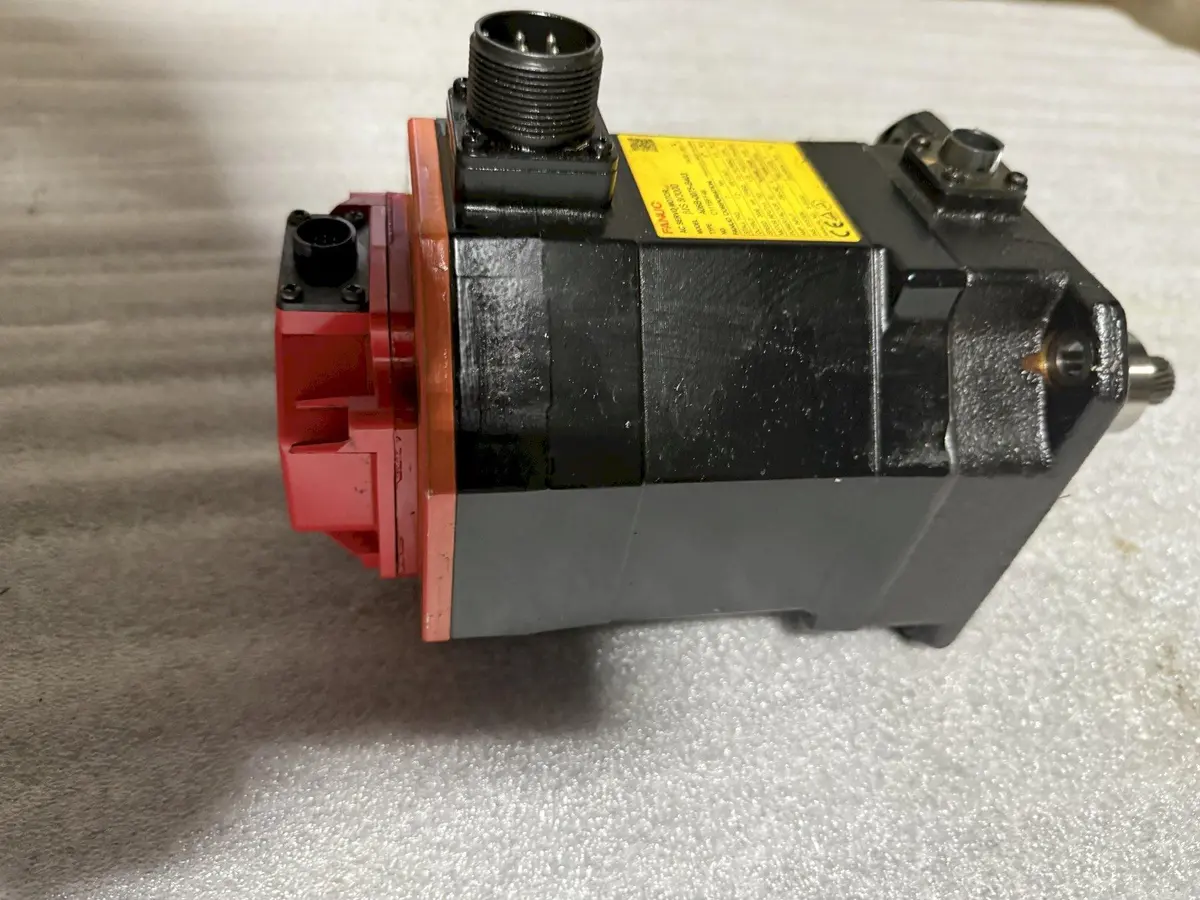

FANUC A06B-0075-B403 AC SERVO MOTOR, Model BiS 8/3000

24V Brake, Straight Shaft, B128IA Encoder

Current TypeACAC
Torque (Stall)5.2 lbf23 N
Amp (Stall)6 A6 A
Voltage153 V153 V
# Poles88
Max Speed2,000 RPM2,000 RPM
Ambient Temperature104°F40°C
Power Factor97%97%
Frequency133 Hz133 Hz
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
EncoderB128IA EncoderB128IA Encoder
Manual NoB-65302B-65302
StandardsIEC60034-1IEC60034-1
Dimensions14" x 10" x 11"14" x 10" x 11"
Weight2828

Current Type: AC
Torque (Stall): 7 Nm
Amp (Stall): 6 A
Voltage: 153 V
# Poles: 8
Max Speed: 2,000 RPM
Ambient: 40° C
Power Factor: 97%
Frequency: 133 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 14" x 10" x 11"
Approximate Weight: 28 LBS

CONDITION: This Servo Motor Appears to be in Very Good Condition ! F.O.B. Cincinnati, OH
