FANUC A06B-0063-B403 | Servo Motors
$395.00 USD

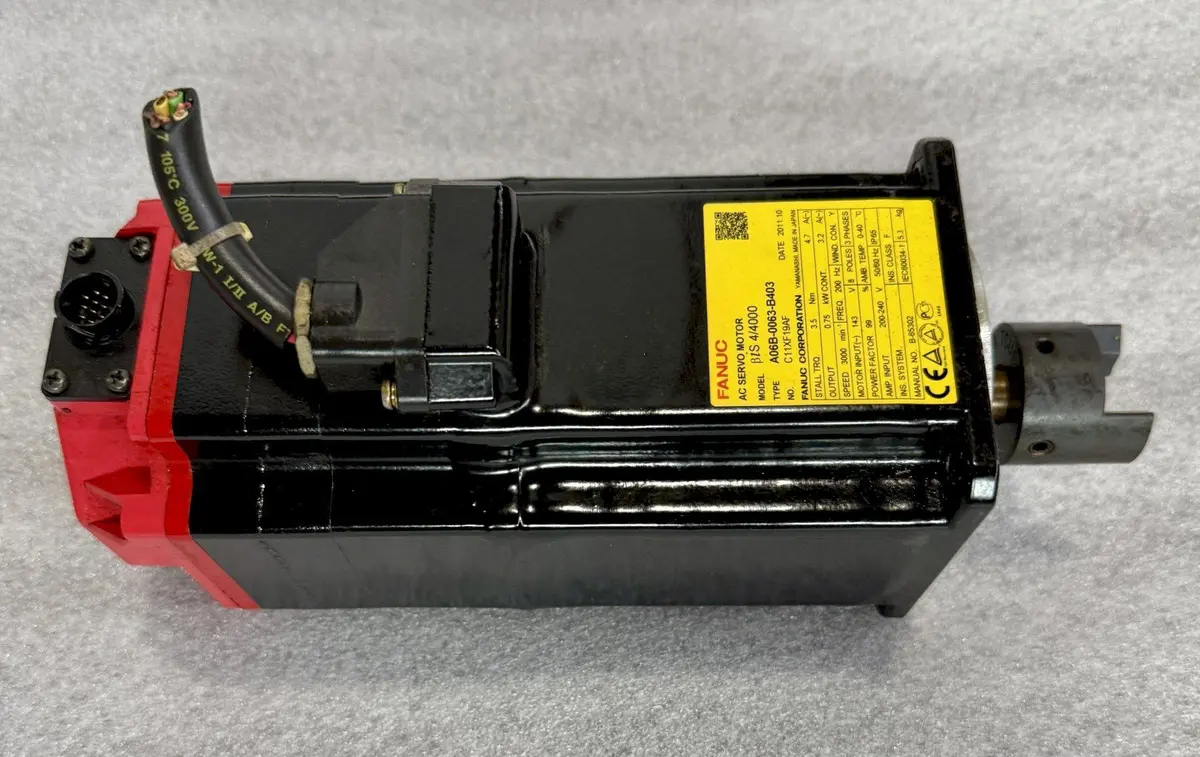

FANUC A06B-0063-B403 AC SERVO MOTOR, Model BiS 4/4000.
Brake, Straight Shaft, B128IA Encoder
Current Type: AC
Torque (Stall): 3.5 Nm
Amp (Stall): 4.7 A
Voltage: 143 V
# Poles: 8
Max Speed: 3,000 RPM
Ambient: 40° C
Power Factor: 99%
Frequency: 200 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 14" x 10" x 10"
Approximate Weight: 17 LBS
CONDITION: This Motor Appears to be in Very Good Condition !
F.O.B. Cincinnati, OH
