FANUC A06B-0078-B003

FANUC A06B-0078-B003 | Servo Motors

Sell Your FANUC A06B-0078-B003
513-771-2111
sales@gaec.com
$725.00 USD
Sell Your FANUC A06B-0078-B003

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0078-B003
Stock #:
Q12079
Status:
For Sale

Description

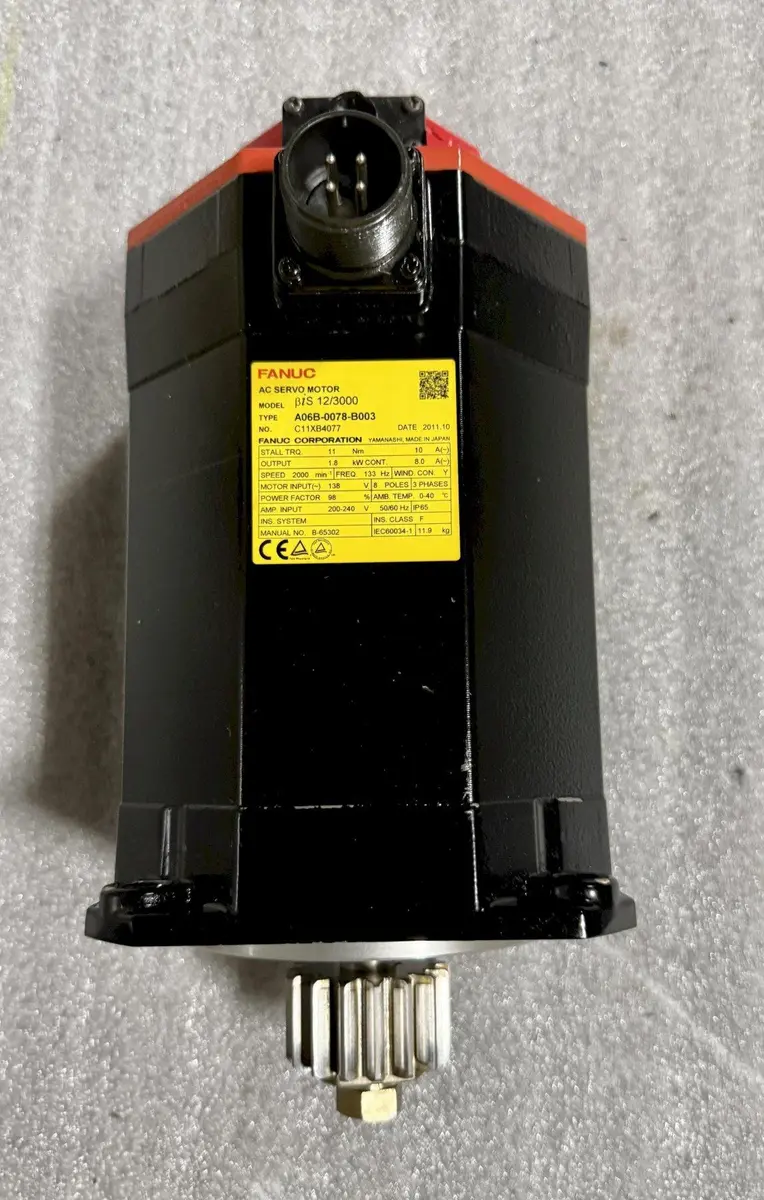

FANUC A06B-0078-B003 AC SERVO MOTOR, Model BiS 12/3000, with PulseCoder BiA128 Fanuc A860-2020-T301

Tapered Shaft, Incremental Encoder, Flange Mount, Straight Configuration, B128iA

Current TypeACAC
Torque (Stall)7.8 lbf34.7 N
Amp (Stall)10 A10 A
Voltage138 V138 V
# Poles88
Max Speed2,000 RPM2,000 RPM
Ambient Temperature40°F4.4°C
Power Factor98%98%
Frequency133 Hz133 Hz
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
EncoderPulseCoder BiA128 A860-2020-T301PulseCoder BiA128 A860-2020-T301
Manual NoB-65302B-65302
StandardsIEC60034-1IEC60034-1
Dimensions15" x 12" x 12"15" x 12" x 12"
Weight32 LBS32 LBS

Current Type: AC
Torque (Stall): 11 Nm
Amp (Stall): 10 A
Voltage: 138 V
# Poles: 8
Max Speed: 2,000 RPM
Ambient: 40° C
Power Factor: 98%
Frequency: 133 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Encoder: PulseCoder BiA128 A860-2020-T301
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 15" x 12" x 12"
Approximate Weight: 32 LBS

CONDITION: This Motor Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
