Equipment
Motors
Servo Motors
FANUC A06B-0238-B000

FANUC A06B-0238-B000 | Servo Motors

Sell Your FANUC A06B-0238-B000
513-771-2111
sales@gaec.com
$725.00 USD
Sell Your FANUC A06B-0238-B000

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0238-B000
Stock #:
Q12080
Status:
For Sale

Description

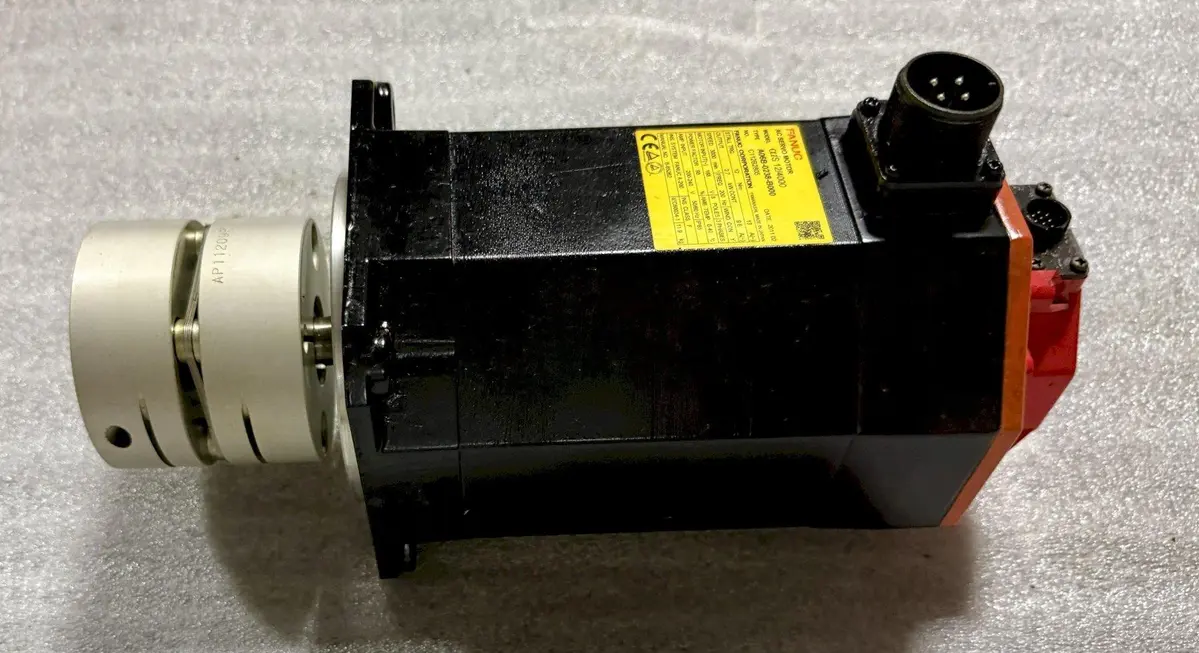

FANUC A06B-0238-B000 AC SERVO MOTOR, Model AiS 12/4000

Tapered Shaft

Current TypeACAC
Torque (Stall)8.9 lbf39.4 N
Amp (Stall)13 A13 A
Voltage168 V168 V
# Poles88
Max Speed3,000 RPM3,000 RPM
Ambient Temperature104°F40°C
Power Factor98%98%
Frequency200 Hz200 Hz
Motor Phase33
Power2.9 hp2.1 kW
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 65IP 65
EncoderPulseCoder AiA1000 Type A860-2000-T301PulseCoder AiA1000 Type A860-2000-T301
Manual NoB-65262B-65262
StandardsIEC60034-1IEC60034-1
Dimensions40.64 x 30.48 x 27.9440.64 x 30.48 x 27.94
Weight14.51514.515

Current Type: AC
Torque (Stall): 12 Nm
Amp (Stall): 13 A
Voltage: 168 V
# Poles: 8
Max Speed: 3,000 RPM
Ambient: 40° C
Power Factor: 98%
Frequency: 200 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Encoder: PulseCoder AiA1000 Type A860-2000-T301
Manual No: B-65262
Standards: IEC60034-1
Approximate Dimensions: 16" x 12" x 11"
Approximate Weight: 32 LBS

CONDITION: This Motor Appears to be in Very Good Condition ! F.O.B. Cincinnati, OH
