OSP-P300S-H CNC Control, C-Axis on both spindles, 80 Station Tool Changer, Auto Door with Dual Start, Touchsetter A for 2S, 4' Bar Support System, Y Axis, Chip Conveyor, Chip Blaster High Pressure Coolant, Collision Avoidance Software, Lower Turret.
| CNC Control | OSP-P300S-H | OSP-P300S-H |
| Max Turning Diameter | 25.59" | 649.99 mm |
| X-Axis (Cross Travel: Universal Head) | 25.39" | 644.91 mm |
| Z-Axis (Longitudinal Travel: Univ. Head) | 62.99" | 1,599.9 mm |
| Y-Axis (Travel of Universal Head) | 9.84" | 249.94 mm |
| B-Axis (Rotation of Universal Head) | 210° | 210° |
| Main Spindle Thru Hole | 3.15" | 80.01 mm |
| Main Spindle Nose | A2-6 | A2-6 |
| Main Spindle Power | 30 hp | 22.4 kW |
| Main Spindle Speed Range | 5,000 RPM | 5,000 RPM |
| X-Axis Universal Head Rapid Travers.Rate | 1,968 in/min. | 50 m/min. |
| Z-Axis Universal Head Traverse Rate | 1,968 in/min. | 50 m/min. |
| Automatic Tool Changer Capacity | 80 | 80 |
| Bar Capacity | 4" | 101.6 mm |
| Dimensions | 194 x 117 | 194 x 117 |
| Weight | 35640 | 35640 |

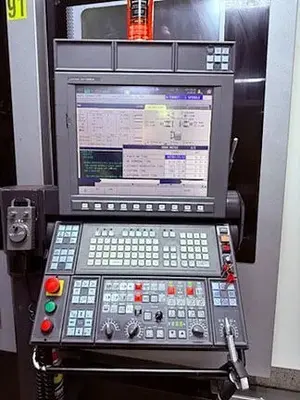

CNC Control: OSP-P300S-H CNC
Max Turning Diameter: 25.59"
Max Distance Between Centers: 59.05"
X-Axis (Cross Travel of Universal Head): 25.39"
Z-Axis (Longitudinal Travel of Universal Head): 62.99"
Y-Axis (Travel of Universal Head): 9.84"
B-Axis (Rotation of Universal Head): -30° to 210°
C-Axis (Indexing Positions of Main Spindle): .001°
Main Spindle Thru Hole: 3.15"
Main Spindle Nose: A2-6
Main Spindle Power: 30 HP / 20 HP
Max Main Spindle Speed: 5,000 RPM
Max Milling Spindle Speed: 12,000 RPM
X-Axis Rapid Traverse Rate: 1968 IPM
Y-Axis Rapid Traverse Rate: 1574 IPM
Z-Axis Rapid Traverse Rate: 1968 IPM
Automatic Tool Changer Capacity: 80
Approximate Machine Dimensions: 194" x 117"
Approximate Machine Height: 118"
Approximate Machine Weight: 35,640 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
F.O.B. Midwestern Location
