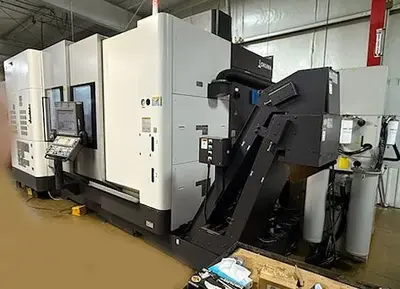

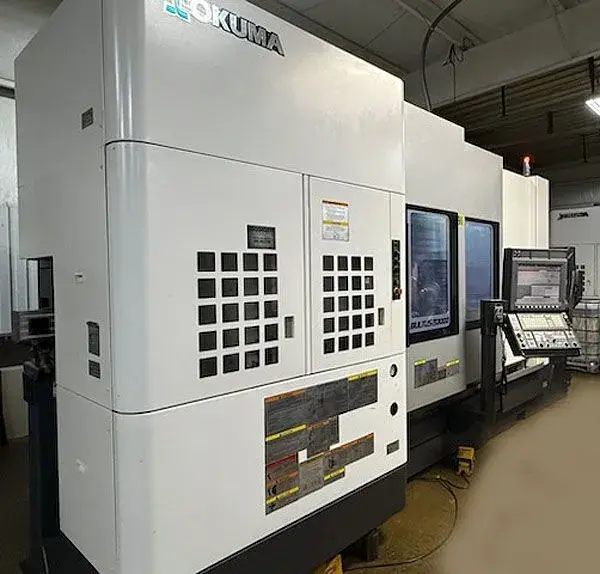

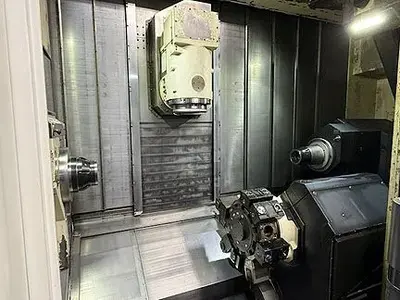

OKUMA MULTUS U3000 2SW/1500 CNC MILL TURN, OSP-P300S-H CNC Control, Collet Chuck on Main & Sub Spindle, 59" Between Centers, 5000 RPM Main Spindle, 25.59" Max Turning Diameter, 4" Bar Capacity, B-Axis Universal Milling Spindle, C-Axis both spindles, Y-Axis, Lower Turret, 80 ATC, Chip Conveyor, High Pressure Coolant System, New 2014.

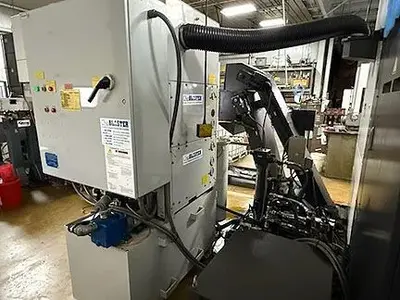

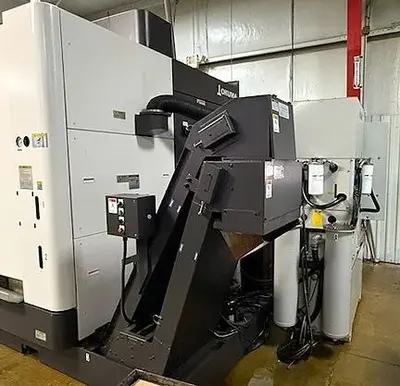

OSP-P300S-H CNC Control, C-Axis on both spindles, 80 Station Tool Changer, Auto Door with Dual Start, Touchsetter A for 2S, 4' Bar Support System, Y Axis, Chip Conveyor, Lower Turret with Live Tooling, Chip Blaster High Pressure Coolant, Collision Avoidance Software.

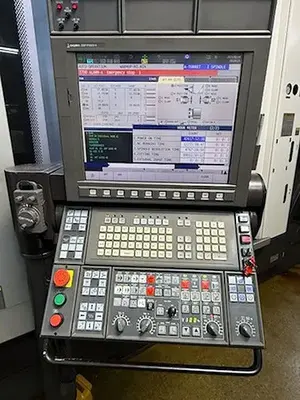

CNC Control: OSP-P300S-H CNC
Max Turning Diameter: 25.59"
Max Distance Between Centers: 59.05"

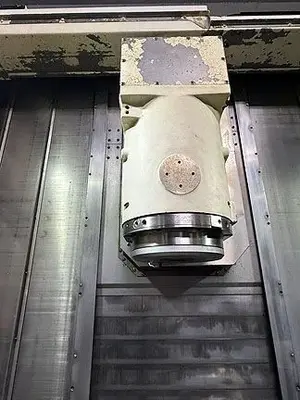

X-Axis (Cross Travel of Universal Head): 25.39"
Z-Axis (Longitudinal Travel of Universal Head): 62.99"
Y-Axis (Travel of Universal Head): 9.84"
B-Axis (Rotation of Universal Head): -30° to 210°
C-Axis (Indexing Positions of Main Spindle): .001°
Main Spindle Thru Hole: 3.15"
Main Spindle Nose: A2-6
Main Spindle Power: 30 HP / 20 HP
Max Main Spindle Speed: 5,000 RPM
Max Milling Spindle Speed: 12,000 RPM
X-Axis Rapid Traverse Rate: 1968 IPM
Y-Axis Rapid Traverse Rate: 1574 IPM
Z-Axis Rapid Traverse Rate: 1968 IPM

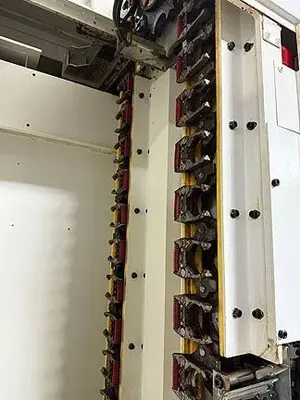

Automatic Tool Changer Capacity: 80
Approximate Machine Dimensions: 194" x 117"
Approximate Machine Height: 118"
Approximate Machine Weight: 35,640 LBS
CONDITION: This Machine Appears to be in Excellent Condition !
F.O.B. Midwestern Location
