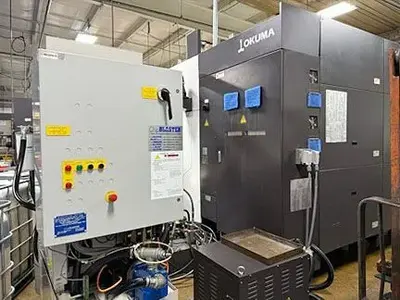

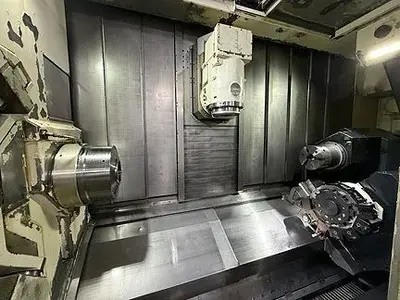

OSP-P300S-H CNC Control, Collision Avoidance Software Dual Spindles (Main & Opposing) C-Axis on both spindles, Big Bore, 80 Station Tool Changer, Auto Door with Dual Start, Touch setter, 4' Bar Support System, Y Axis, Chip Conveyor, Chip Blaster High Pressure Coolant .

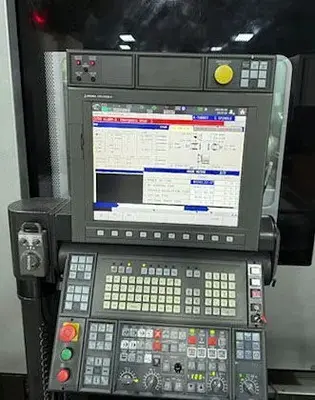

| Control | OSP-P300S-H CNC | OSP-P300S-H CNC |
| # Axis | 5 | 5 |
| Swing Over Saddle: Milling Spindle | 25.59" | 649.99 mm |
| Swing Over Saddle: Lower Turret | 12.6" | 320.04 mm |
| Distance Between Nose and Center | 93.39" | 2,372.1 mm |
| Main Spindle Chuck Size | 12" 3-Jaw Hydraulic | 304.8 mm |
| Max Machining Diameter: Milling Spindle | 25.59" | 649.99 mm |
| Max Machining Diameter: Lower Turret | 12.6" | 320.04 mm |
| Max Machining Length | 78.74" | 2,000 mm |
| X-Axis Travel: Milling Spindle | 27.36" | 694.94 mm |
| X-Axis Travel: Lower Turret | 9.25" | 234.95 mm |
| Z-Axis Travel: Milling Spindle | 82.68" | 2,100.1 mm |
| Z-Axis Travel: Lower Turret | 79.69" | 2,024.1 mm |
| Y-Axis Travel | 11.81" ±5.91" | 299.97 mm |
| W-Axis Travel | 79.69" | 2,024.1 mm |
| C-Axis Indexing Angle | 360° | 360° |
| B-Axis Indexing Angle | -30° to +210° | 210° |
| Max Main Spindle Speed | 4,200 RPM | 4,200 RPM |
| Min Main Spindle Speed | 45 RPM | 45 RPM |
| # Main Spindle Speed Ranges | 2 | 2 |
| Main Spindle Power | 30 hp | 22.4 kW |
| Main Spindle Nose | JIS A2-8 | JIS A2-8 |
| Main Spindle Taper Bore | 3.58" | 90.932 mm |
| Main Spindle Bearing Diameter | 5.57" | 141.48 mm |
| Opposing Spindle Chuck Size | 10" 3-Jaw Hydraulic | 254 mm |
| Max Opposing Spindle Speed | 3,800 RPM | 3,800 RPM |
| Min Opposing Spindle Speed | 38 RPM | 38 RPM |
| # Opposing Spindle Speed Ranges | 2 | 2 |
| Opposing Spindle Power | 30 hp | 22.4 kW |
| Opposing Spindle Nose | JIS A2-8 | JIS A2-8 |
| Opposing Spindle Taper Bore | 3.15" | 80.01 mm |
| Opposing Spindle Bearing Diameter | 4.72" | 119.89 mm |

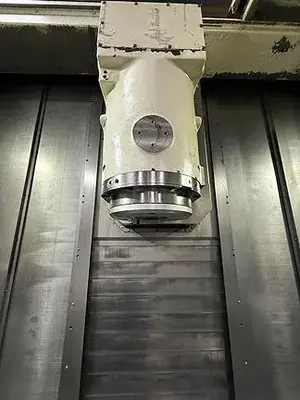

| Milling Tool Spindle Speed Range: Upper Turret | 50 - 12,000 RPM | 12,000 RPM |
| # Milling Tool Spindle Speed Ranges: Upper | 2 | 2 |
| Milling Tool Spindle Speed Range: Lower Turret | 45 - 6,000 RPM | 6,000 RPM |
| # Milling Tool Spindle Speed Ranges: Lower | Infinitely variable | Infinitely variable |
| Milling Spindle Power: Upper | 33 hp | 24.6 kW |
| Milling Spindle Power: Lower | 7.5 hp | 5.6 kW |
| Turret Type: Upper | H1 | H1 |
| Turret Type: Lower | V12 | V12 |
| # Tools: Upper Turret | 1 | 1 |
| # Tools: Lower Turret | 12 | 12 |
| X-Axis Milling Spindle Feed Rate | 164 ft/min. | 49,987.2 mm/min. |
| Z-Axis Milling Spindle Feed Rate | 131 ft/min. | 39,928.8 mm/min. |
| Y-Axis Feed Rate | 131 ft/min. | 39,928.8 mm/min. |
| X2-Axis Lower Feed Rate | 82 ft/min. | 24,993.6 mm/min. |
| Z2-Axis Lower Feed Rate | 98 ft/min. | 29,870.4 mm/min. |
| W-Axis Feed Rate | 66 ft/min. | 20,116.8 mm/min. |
| C-Axis Feed Rate | 200 RPM | 200 RPM |
| B-Axis Feed Rate | 30 RPM | 30 RPM |

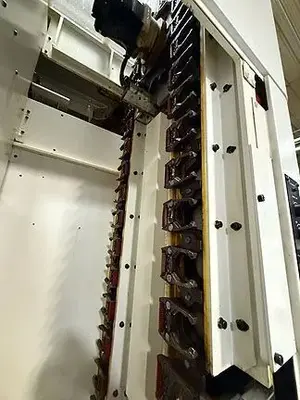

| Automatic Tool Changer Capacity (ATC) Capacity | 80 | 80 |
| ATC Tool Shank | HSK-A63 | HSK-A63 |
| Max Tool Diameter | 3.54" (without adjacent tools: 5.12") | 89.916 mm |
| Max Tool Length | 15.75" | 400.05 mm |
| Max Tool Weight | 22 lb | 10 kg |
| Dimensions | 243.11" × 130.94" x 119.29" | 243.11" × 130.94" x 119.29" |
| Weight | 44,000 lbs | 44,000 lbs |
CONDITION: This Machine Appears to be in Excellent Condition !
F.O.B. Midwestern Location
