Johnford SV-40 CNC Vertical Machining Center

Johnford SV-40 CNC Vertical Machining Center

Sell Your Johnford SV-40
513-771-2111
sales@gaec.com
Request Financing
Sell Your Johnford SV-40

Overview

Type:
Machining Centers, Vertical
Manufacturer:
Johnford
Model:
SV-40
Year:
2013
Stock #:
Q11996
Serial #:
MLB130534

Description

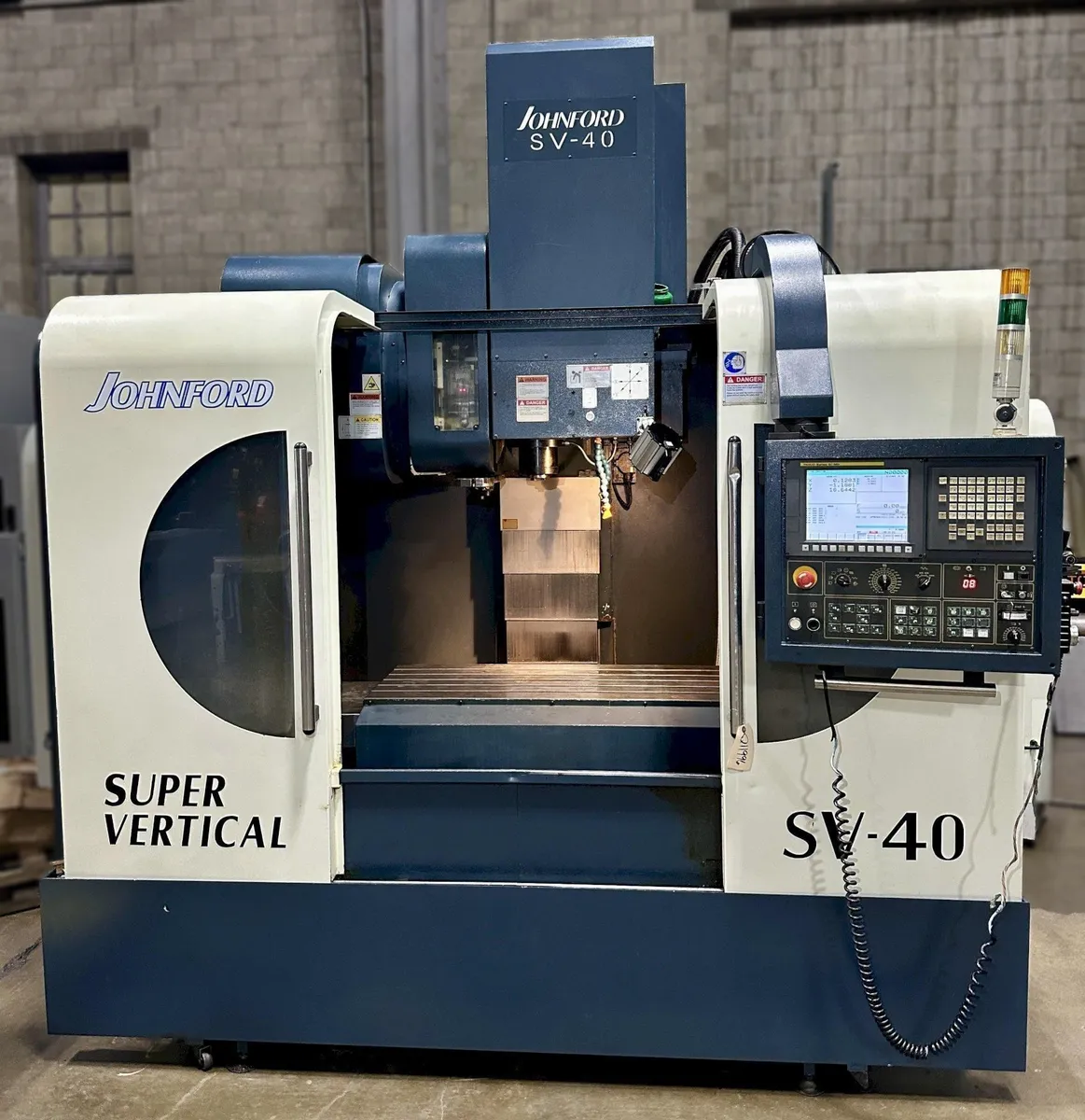

JOHNFORD SV-40 CNC VERTICAL MACHINING CENTER, Fanuc 0i CNC Control, 47" x 20" Table, X=41", Y=20", Z=24", CAT-40 Taper, 15 HP, 10000 Max Spindle RPM, 24 ATC, Chip Conveyor, New 2013.

Fanuc 0i CNC Control, 10000 RPM Cat 40 Spindle, 24 ATC, Spindle Chiller, Chip Pan.

CNC ControlFanuc 0i CNCFanuc 0i CNC
# Axis33
Table-L47.2"1,198.9 mm
Table-W19.7"500.38 mm
Max Table Load Capacity1,760 lb798.3 kg
X-Axis (Longitudinal Travel)41"1,041.4 mm
Y-Axis (Cross Travel)20"508 mm
Z-Axis (Vertical Travel)24"609.6 mm
X-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Y-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Z-Axis Rapid Traverse Rate787 in/min.20 m/min.
Spindle Power15 hp11.2 kW
Max Spindle Speed10,000 RPM10,000 RPM
Spindle TaperCAT 40CAT 40
Automatic Tool Changer Capacity (ATC)2424
Automatic Tool Changer StyleSide-Mount Arm-TypeSide-Mount Arm-Type
Machine Hours86538653
Electrics220/3/60220/3/60
Dimensions115″ x 126″ x 106.2"115″ x 126″ x 106.2"
Weight13,200 LBS13,200 LBS

CONDITION: This Machine Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
