Equipment
Bending & Shaping
Rolls, Plate Bending (incld Pinch)
8' x 1/2" BERTSCH #9 3-ROLL PLATE BENDING ROLL

8' x 1/2" BERTSCH #9 3-ROLL PLATE BENDING ROLL

Sell Your Bertsch #9
513-771-2111
sales@gaec.com
Request Financing
Sell Your Bertsch #9

Overview

Type:
Rolls, Plate Bending (incld Pinch)
Manufacturer:
Bertsch
Model:
#9
Year:
1971
Stock #:
Q12014
Serial #:
M-9980

Description

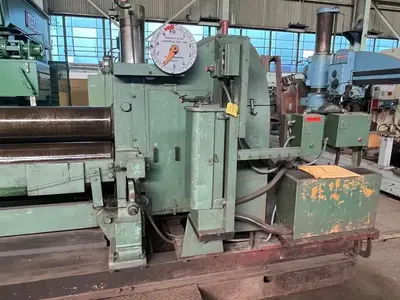

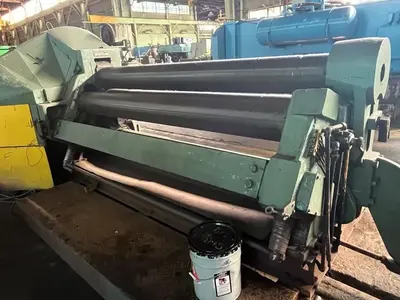

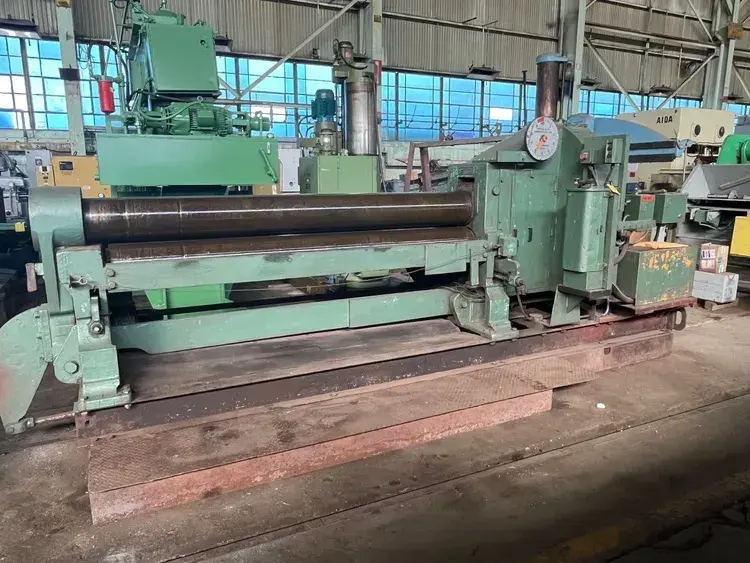

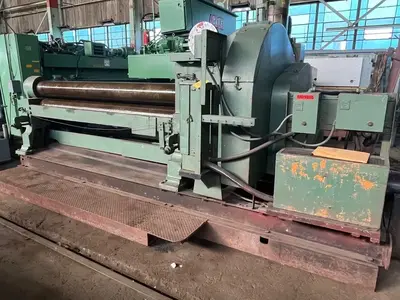

8' x 1/2" BERTSCH 3-ROLL PLATE BENDING ROLL with Air Drop End, Model #9, Initial Pinch, New 1971.

Air Drop End, Power Bottom-Roll Adjustment, Dial Indicator for Bending Roll Position, Forward & Reverse Switch, Automatic Lubrication System, Beam Mounted (No Pit Required).

# Rolls33
Hyd/MechMechanicalMechanical
(Init/Dbl Pinch or Pyramid)Init PinchInit Pinch
Plate Bending Capacity, Boiler Duty (Mild Steel)0.5" x 8'0.5" x 8'
Plate Bending Capacity, Pipe Duty (Mild Steel)0.406" x 8'0.406" x 8'
Length of Rolls8.25'2.5 m
Diameter of Top Roll10"254 mm
Diameter of Bottom Roll10"254 mm
Diameter of Side Rolls10"254 mm
Rear Roll Diameter10"254 mm
Min Rollable Diameter, Single Pass11.5" ID (.406" Thickness)292.1 mm
Max Rolling Speed1150 RPM350.5 m/min.
Power15 hp11.2 kW
Electrics230-460/3/60230-460/3/60
Dimensions224" X 90" X 84"224" X 90" X 84"
Weight20,100 LBS20,100 LBS

CONDITION: This Machine Appears to be in Excellent Condition.

F.O.B. Cincinnati, OH
