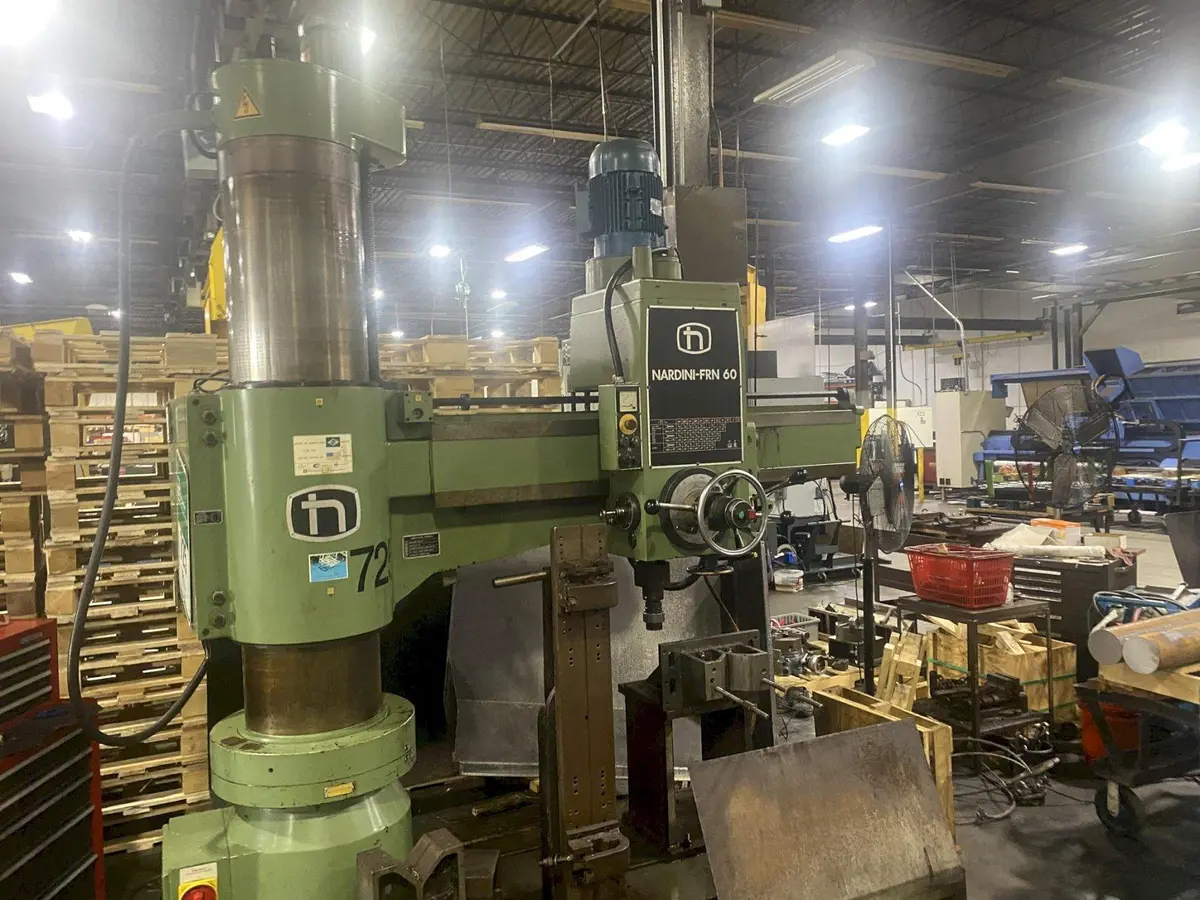

5'x 15" NARDINI FRN 60 Radial Arm Drill

5'x 15" NARDINI FRN 60 Radial Arm Drill

Sell Your NARDINI FRN 60-1250
513-771-2111
sales@gaec.com
Sell Your NARDINI FRN 60-1250

Overview

Type:
Drills, Radial
Manufacturer:
NARDINI
Model:
FRN 60-1250
Year:
1985
Stock #:
Q12025
Status:
For Sale

Description

5' x 15" NARDINI FRN 60 RADIAL ARM DRILL, 1450 RPM, MT5 Taper, 10 HP, 24" x 32" Table, Power Elevation, Tapping & Threading, Coolant in Base, New 1985.

Power Arm Elevation, Power Clamping, Rapid Traverse on Head, Tapping/Threading Capabilities, Plain-Type Base, Hardened Column, Coolant System (Built-In).

Arm Length5'1.5 m
Column Diameter15"381 mm
T-Slotted Box Table Size-L24"609.6 mm
T-Slotted Box Table Size-W32"812.8 mm
Max Spindle Radius63"1,600.2 mm
Spindle TaperMT5MT5
# Spindle Speeds1212
Max Spindle Speed1,450 RPM1,450 RPM
Min Spindle Speed29 RPM29 RPM
Motor Power10 hp7.5 kW
Electrics220/3/60220/3/60

Drilling in Solid Steel: 2.36"
Drilling in Cast Iron: 3.15"
Boring in Steel: 3.94"
Boring in Cast Iron: 4.72"
Tapping in Steel: 1.97'
Tapping in Cast Iron: 2.75"
Arm Elevating Motor Power: 2 HP

CONDITION: This Machine Appears to be in Very Good Condition.

F.O.B. Cincinnati, OH
