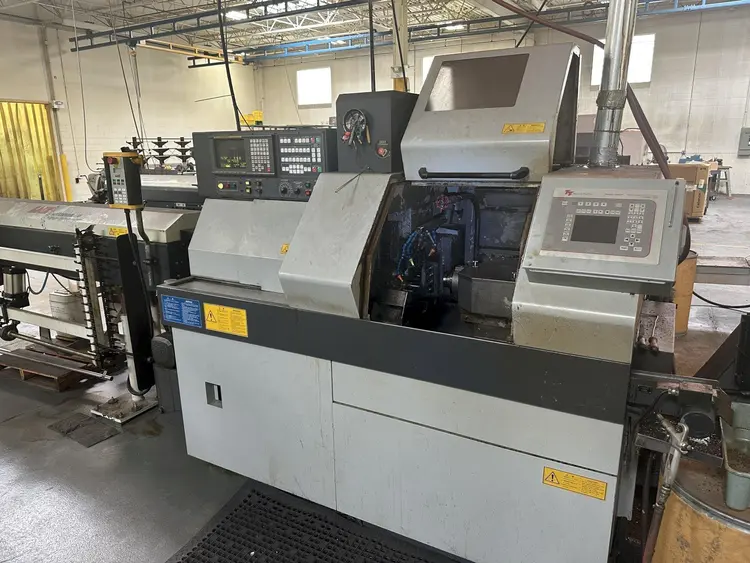

Fanuc 16T CNC Control, Magic Air Bushing for Working Holding (Pneumatic Operated), 12' LNS Hydrobar Mini Sprint Bar Feeder, Parts Conveyor, Chip Conveyor, Tool holders Included.
| CNC Control | Fanuc 16T CNC | Fanuc 16T CNC |
| # Axis | 7 | 7 |
| Axis Designation | X, Y, Z, ZB, XB, C1, C2 | X, Y, Z, ZB, XB, C1, C2 |
| Max Turning Diameter-Main Spindle | 1.25" | 31.75 mm |
| Z-Axis (Headstock Travel) | 12.2031" | 309.96 mm |
| C1-Axis (Min Indexable) | 0.01° | 0° |
| C2-Axis (Min Indexable) | 1° | 1° |
| Main Spindle Center Height | 42.13" | 1,070.1 mm |
| Max Main Spindle Speed | 7,000 RPM | 7,000 RPM |
| Rapid Traverse Rate (X, Y, Z, ZB, XB) | 945 in/min. | 24,003 mm/min. |
| Main Spindle Stroke (one chucking) | 1.0244" | 26.02 mm |
| Max Sub-Spindle Speed | 7,000 RPM | 7,000 RPM |
| Max Drilling Diameter (Front Tool) | 0.3125" | 7.9375 mm |
| Max Tapping Diameter (Front Tool) | M6xP1.0 | 0 mm |
| Max Milling Diameter (Cross Tool) | 0.3906" | 9.9219 mm |
| Max Slotting (Cross Tool) | .08" W x .14" D | .08" W x .14" D |
| Toolpost Type | Slant | Slant |
| # Tools: OD | 6 | 6 |
| # Tools: Front Working ID | 4 | 4 |
| # Tools: Back Working | 4 | 4 |
| # Tools: Cross Driven | 3 | 3 |
| Main Spindle Motor Power | 7.4 hp | 5.5 kW |
| Sub-Spindle Motor | 2.95 hp Cont / 4.96 hp 15 Mins. | 3.7 kW |
| Coolant Pump Motor Power | 0.33 hp | 0.2 kW |
| Bar Feeder? | Yes | Yes |
| Electrics | 200/3/60 | 200/3/60 |
| Dimensions | 106" x 51" x 69" | 106" x 51" x 69" |
| Weight | 8,300 LBS | 8,300 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !
Located in the Midwest. Buyer Responsible for Removal and Freight.
