Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0075-B003
Year:
2015
Stock #:
Q12034a
Status:
For Sale
Serial #:
C154W1256

Description

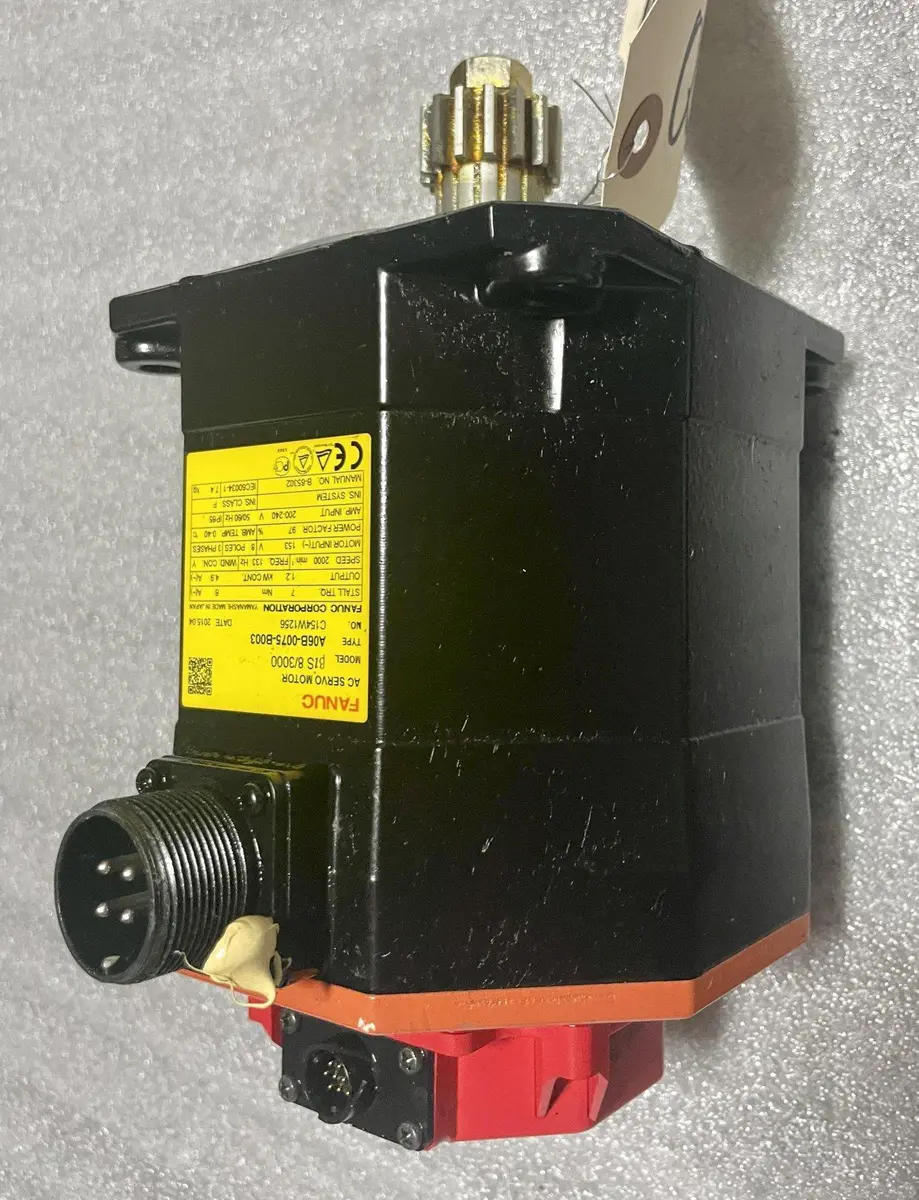

FANUC A06B-0075-B003 AC SERVO MOTOR, Model BiS 8/3000, 240 V, 2000 RPM.

Tapered Shaft, B128IA Key

Current TypeACAC
Torque (Stall)5.1 lbf22.6 N
Amp (Stall)6 A6 A
Voltage200-240200-240
# Poles88
Max Speed2,000 RPM2,000 RPM
Ambient Temperature104°F40°C
Power RatingContinuousContinuous
Power Factor9797
Efficiency
Frame
Frequency50/6050/60
Motor Phase33
Power
Insulation ClassF (Max 155°C / 311°F)F (Max 155°C / 311°F)
Enclosure RatingIP 65IP 65
EncoderA860-2020-T301A860-2020-T301
Motor Mounting Code
Manual NoB-65302B-65302
StandardsIEC60034-1IEC60034-1
Dimensions12x1012x10
Weight21 LBS21 LBS

Current Type: AC
Torque (Stall): 7 Nm
Amp (Stall): 6 A
Voltage: 200-240 V
# Poles: 8
Max Speed: 2,000 RPM
Ambient: 40° C
Power Rating: Continuous
Power Factor: 97%
Frequency: 50/60 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Encoder: A860-2020-T301
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 12" x 10"
Approximate Height: 11"
Approximate Weight: 21 LBS

CONDITION: This Servo Motor Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
