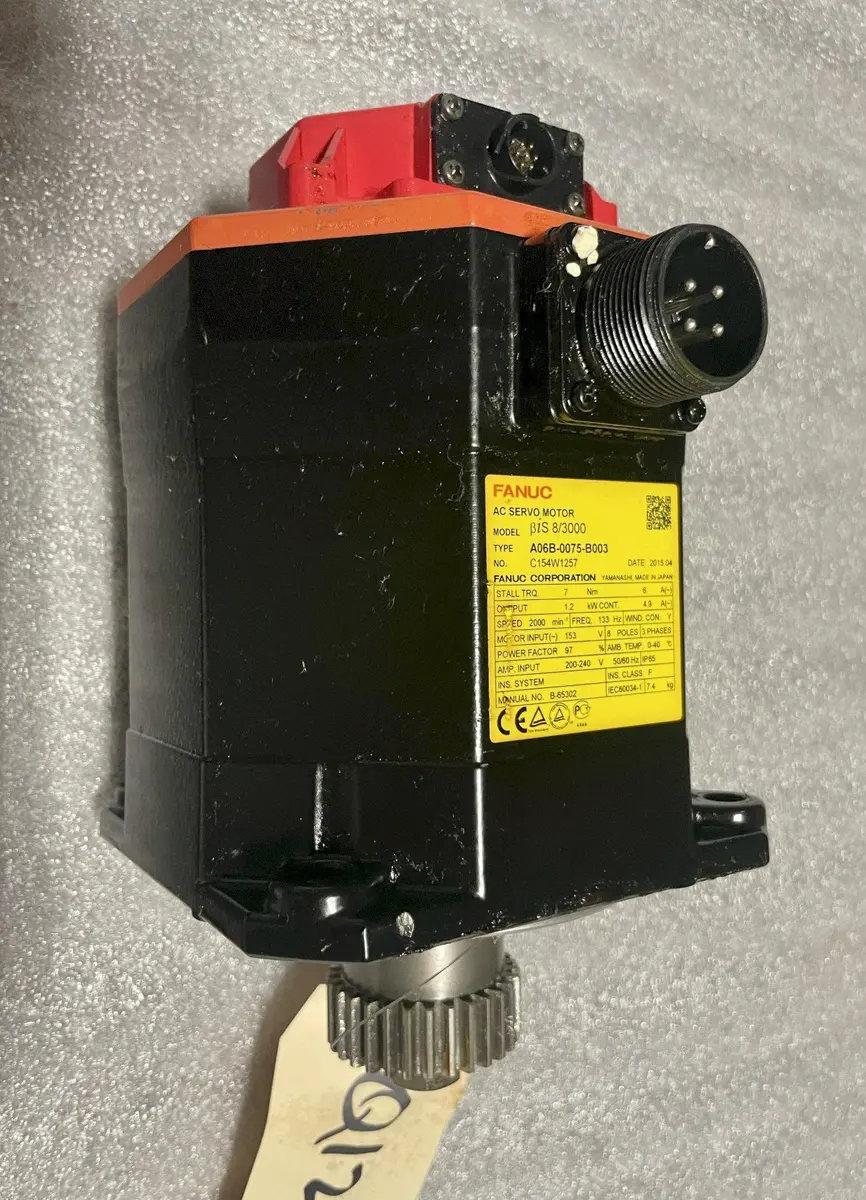

FANUC A06B-0075-B003 AC SERVO MOTOR, Model BiS 8/3000, 240 V, 2000 RPM.
Tapered Shaft, B128IA Key
Current Type: AC
Torque (Stall): 7 Nm
Amp (Stall): 6 A
Voltage: 200-240 V
# Poles: 8
Max Speed: 2,000 RPM
Ambient: 40° C
Power Rating: Continuous
Power Factor: 97%
Frequency: 50/60 Hz
Motor Phase: 3
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 65
Encoder: A860-2020-T301
Manual No: B-65302
Standards: IEC60034-1
Approximate Dimensions: 12" x 10"
Approximate Height: 11"
Approximate Weight: 21 LBS
CONDITION: This Servo Motor Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
