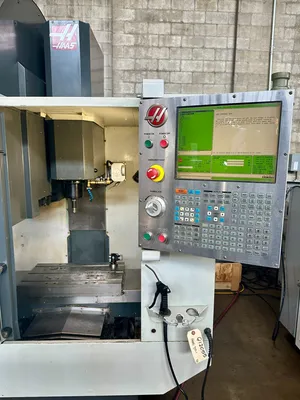

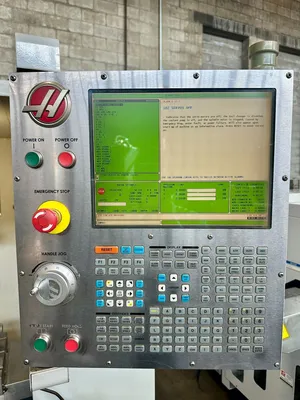

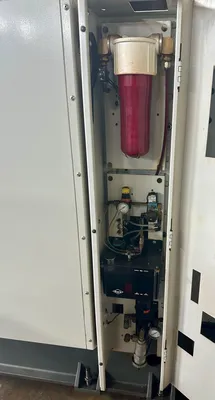

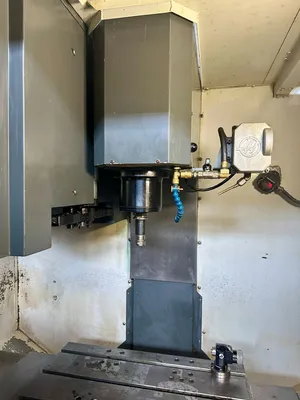

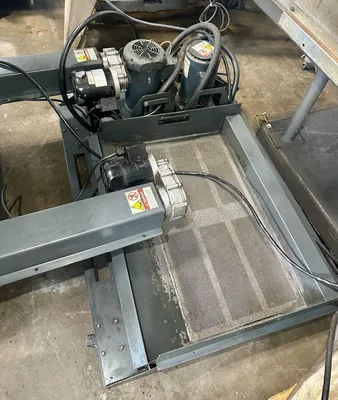

Haas CNC Control, Haas Collet Closer, Part & Tool Touch Probe, Programmable Coolant Nozzle, 15000 RPM Spindle, Double Chip Augers w/ Pan and Coolant Pumps, Haas Auxiliary Coolant Filter.
| CNC Control | Haas CNC | Haas CNC |
| # Axis | 3 | 3 |

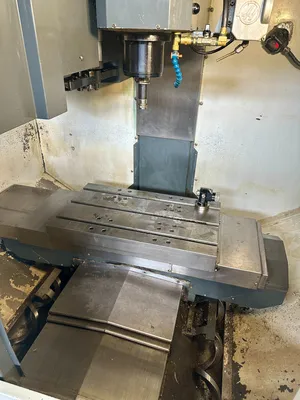

| Table-L | 26" | 660.4 mm |
| Table-W | 15" | 381 mm |
| Max Table Load Capacity | 250 lb | 113.4 kg |
| X-Axis (Longitudinal Travel) | 20" | 508 mm |
| Y-Axis (Cross Travel) | 16" | 406.4 mm |
| Z-Axis (Vertical Travel) | 15.5" | 393.7 mm |
| Max Clearance Tabletop to Spindle Nose | 21.5" | 546.1 mm |
| Min Clearance Tabletop to Spindle Nose | 6" | 152.4 mm |
| Max Spindle Nose to Trunnion Center | 21.5" | 546.1 mm |
| Min Spindle Nose to Trunnion Center | 6" | 152.4 mm |
| Rapid Traverse Rate (X, Y, & Z Axis) | 2,400 in/min. | 61 m/min. |
| Spindle Power | 15 hp | 11.2 kW |
| Max Spindle Speed | 15,000 RPM | 15,000 RPM |
| Max Spindle Speed For Tapping | 5,000 RPM | 5,000 RPM |
| Spindle Taper | BT30 | BT30 |
| Torque, Up To | 46 FT-LBS @ 1700 RPM | 204.6 N |
| Coolant Through Spindle | Yes | Yes |

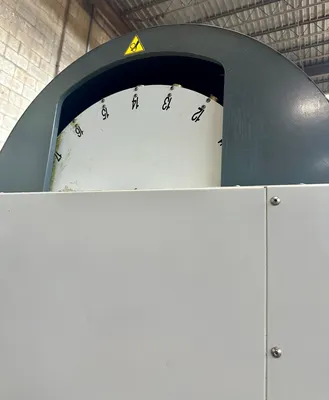

| Automatic Tool Changer Capacity (ATC) | 21 | 21 |
| Automatic Tool Changer Style | Side-Mount | Side-Mount |
| Tool Change Time | 0.8 sec. | 0.8 sec. |
| Electrics | 195-260/3/60 | 195-260/3/60 |
| Dimensions | 68" x 100" x 103" | 68" x 100" x 103" |
| Weight | 4,200 LBS | 4,200 LBS |
T-Slot Width: 0.625"
T-Slot Center Distance: 4.92"
# T-Slots: 3
CONDITION: This Machine Appears to be in Very Good Condition !
F.O.B. Cincinnati, OH
