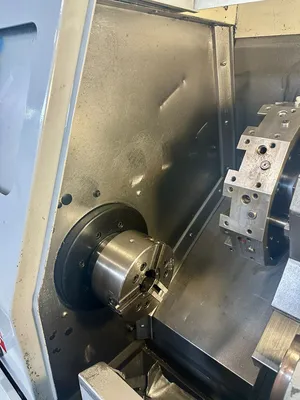

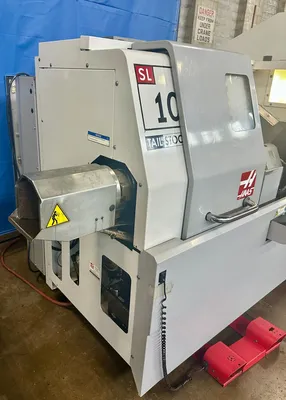

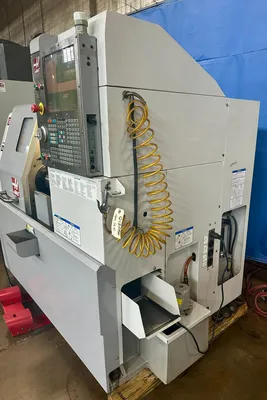

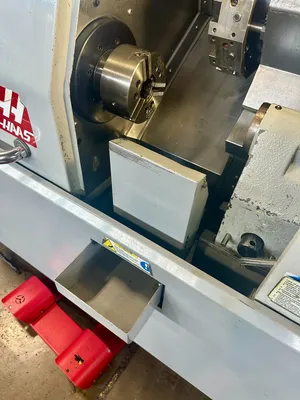

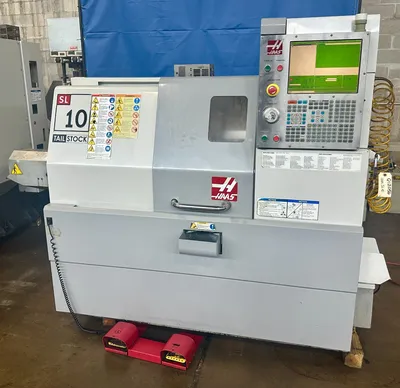

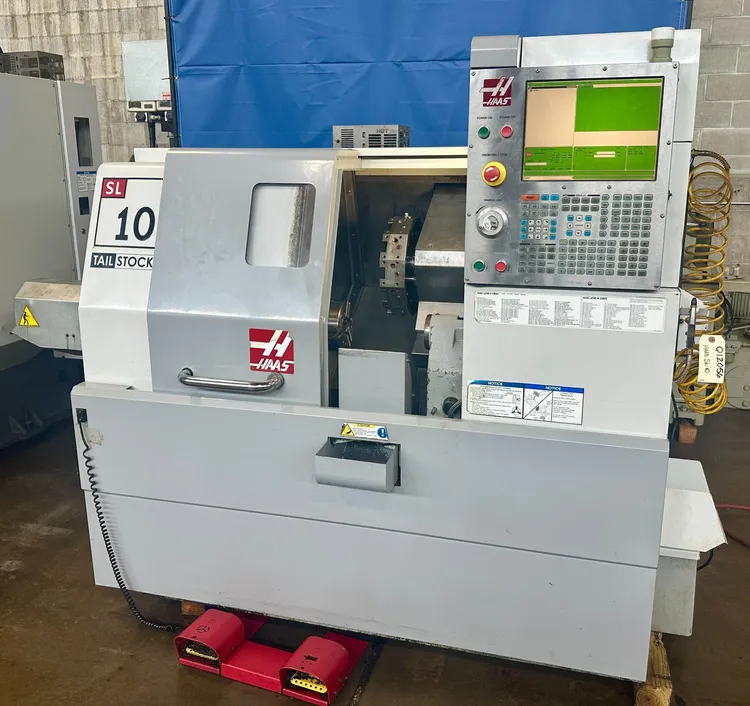

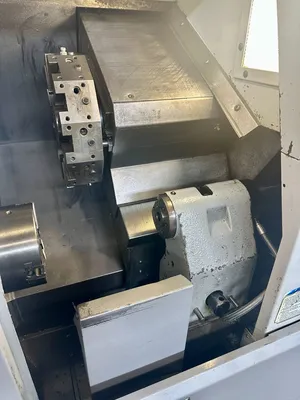

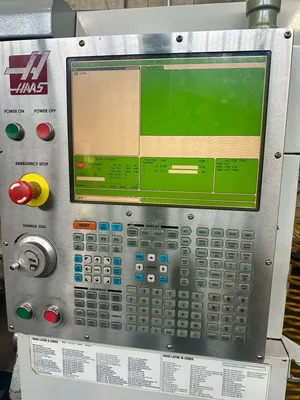

Haas CNC Control, 6.5" 3-Jaw Chuck, 6000 RPM Spindle, 1.75" Bar Capacity, 12 Position Turret, Tailstock, 20-Horsepower Vector Drive, Parts Catcher, Coolant System.
| CNC Control | Haas CNC | Haas CNC |
| # Axis | 2 | 2 |
| Max Swing Over Bed | 16.25" | 412.75 mm |
| Max Swing Over Cross Slide | 8" | 203.2 mm |
| Max Turning Length | 14" | 355.6 mm |

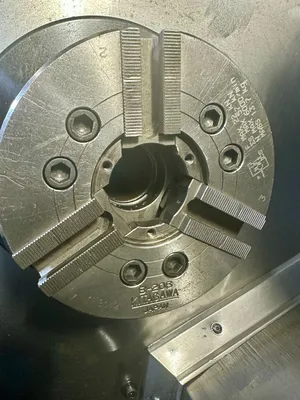

| Chuck Size | 6.5" | 165.1 mm |
| Max Distance Between Centers | 16.5" | 419.1 mm |
| Max Turning Diameter | 11" | 279.4 mm |
| X-Axis (Cross Travel) | 6.25" | 158.75 mm |
| Z-Axis (Longitudinal Travel) | 14" | 355.6 mm |
| X-Axis Rapid Traverse Rate | 710 in/min. | 18 m/min. |
| Z-Axis Rapid Traverse Rate | 710 in/min. | 18 m/min. |
| # Tool Turrets | 1 | 1 |
| Tool Turret Positions | 12 | 12 |
| Live Tooling | No | No |
| Spindle Nose | A2-5 | A2-5 |
| Spindle Bore | 2.31" | 58.674 mm |
| Bar Capacity | 1.75" | 44.45 mm |
| Max Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Power | 15 hp | 11.2 kW |
| Tailstock | Yes | Yes |
| Tailstock Taper | MT3 | MT3 |

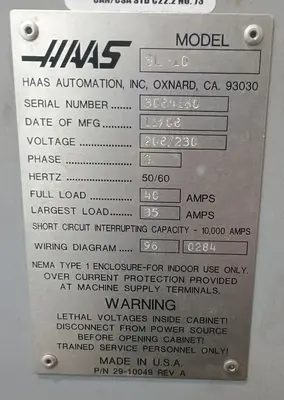

| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 92" x 55" x 69" | 92" x 55" x 69" |
| Weight | 5,500 LBS | 5,500 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
F.O.B. Cincinnati, OH
