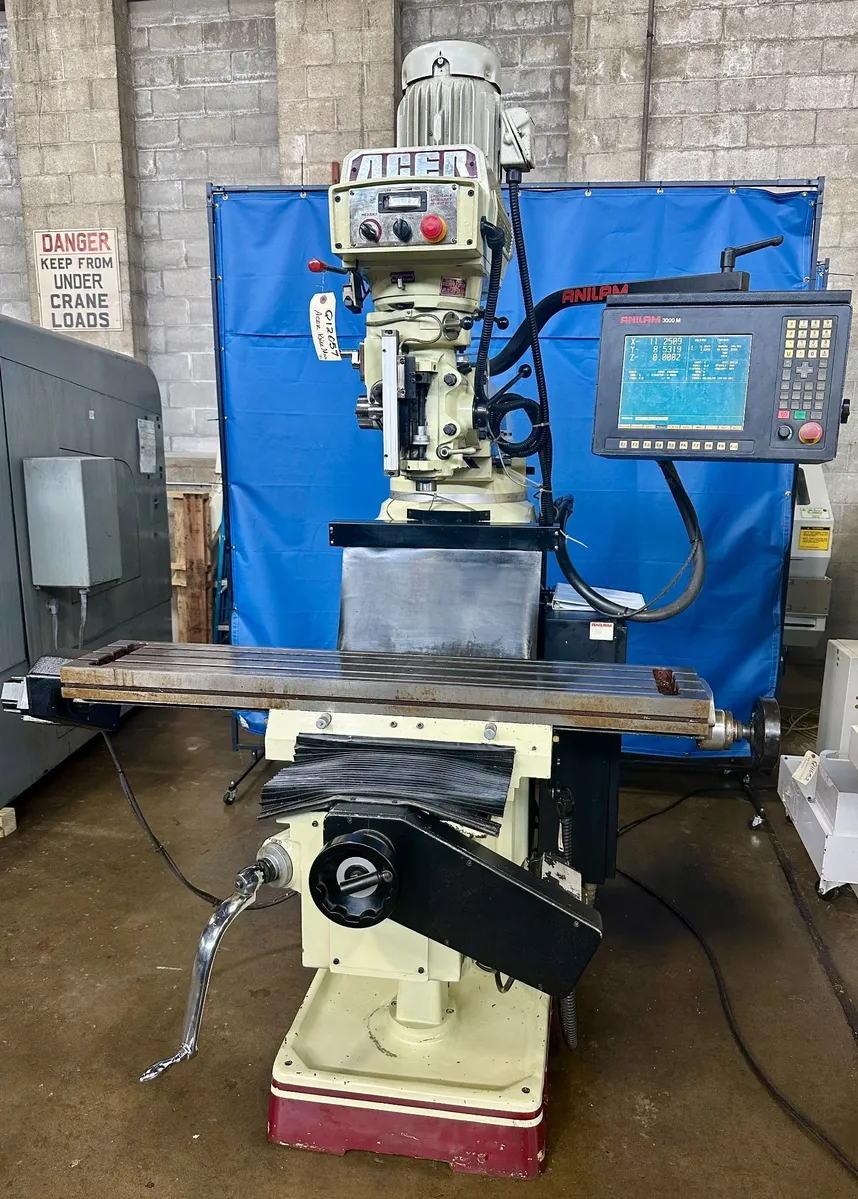

Acer EVS-3VKH-54 CNC Knee Mill

Sell Your ACER EVS-3VKH-54
513-771-2111
sales@gaec.com
Request Financing
Sell Your ACER EVS-3VKH-54

Overview

Type:
Millers, Vertical
Manufacturer:
ACER
Model:
EVS-3VKH-54
Year:
2005
Stock #:
Q12057
Status:
For Sale
Serial #:
M5110344S9

Description

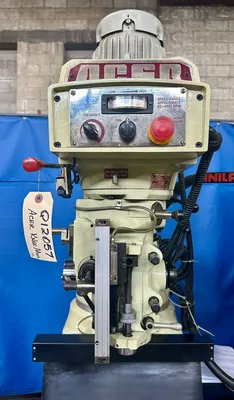

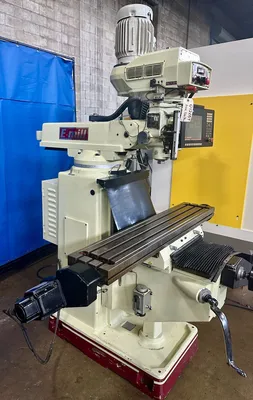

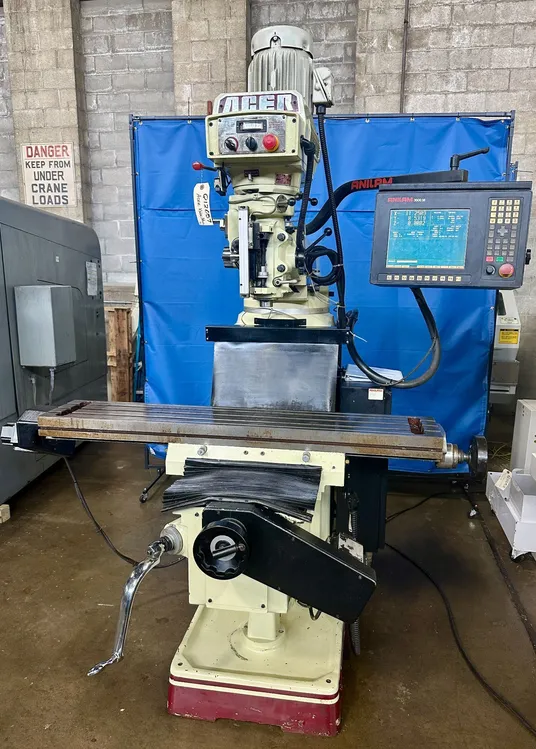

Acer EVS-3VKH-54 CNC Knee Mill, Anilam 3000 2-Axis Programmable Control with Feedback on Quill, 10" x 50" Table, X=34", Y=17", W=19", Quill Travel=5", R-8 Taper, 3 HP, 4500 Max Spindle RPM, New 2005.

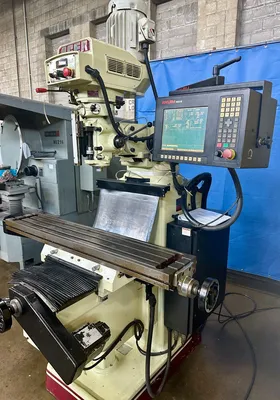

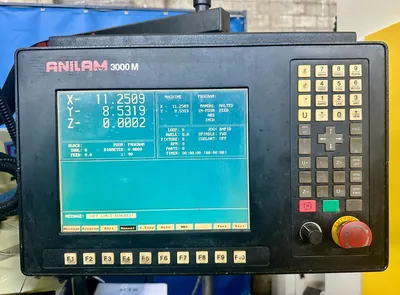

Anilam 3000M 2-Axis CNC Control with Scale Feedback on Quill.

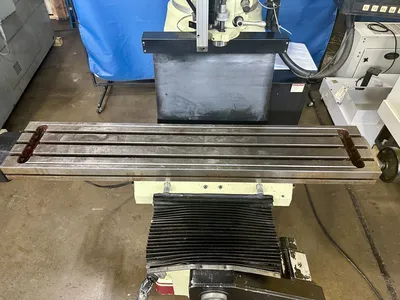

Table-L50"1,270 mm
Table-W10"254 mm
Max Weight of Workpiece850 lb385.6 kg
X-Axis (Longit. Table Travel Power Feed)34"863.6 mm
Y-Axis (Cross Saddle Travel)17"431.8 mm
W-Axis (Vertical Knee Travel)19"482.6 mm
Z-Axis (Vertical Quill Travel)5"127 mm
Ram Travel20"508 mm
Spindle TaperR-8R-8

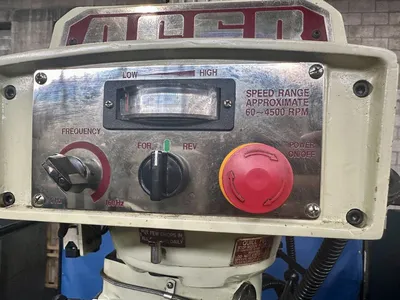

Spindle Speeds60 - 4,500 RPM4,500 RPM
Drive TypeVariable Speed SpindleVariable Speed Spindle
Quill Feeds0.0015 - 0.006 in/rev.0.0015 - 0.006 in/rev.
Spindle Power3 hp2.2 kW
Electrics220/3/60220/3/60
Dimensions70" x 66" x 95"70" x 66" x 95"
Weight3,300 LBS3,300 LBS

Head Movement (Right to Left): ±90°
Head Tilt (Front to Back): ±45°

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
