FANUC A06B-6117-H304 | Servo Drives

Sell Your FANUC A06B-6117-H304
513-771-2111
sales@gaec.com
Sell Your FANUC A06B-6117-H304

Overview

Type:
Servo Drives
Manufacturer:
FANUC
Model:
A06B-6117-H304
Stock #:
Q12064
Status:
For Sale

Description

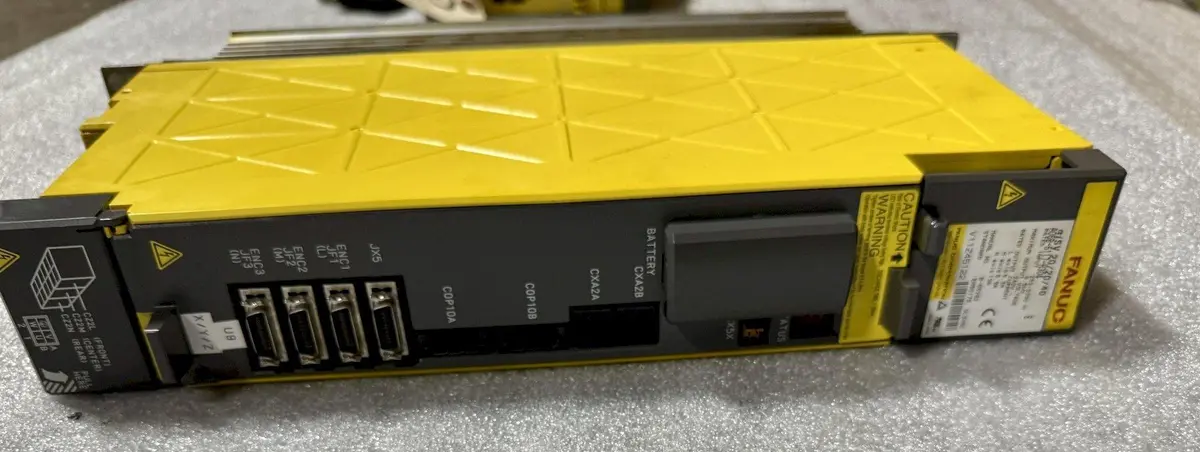

FANUC A06B-6117-H304 SERVO MODULE, Model AiSV 20/20/40

Product TypeServo ModuleServo Module
Rated Input9.5 kW9.5 kW
FunctionControlControl
# Axis33
Input Voltage283 V283 V
Output Voltage240 V240 V
Output Power
L-Axis Rated Output Current6.5 A6.5 A
M-Axis Rated Output Current6.5 A6.5 A
N-Axis Rated Output Current13 A13 A
Amperage
Motor Rated Current: Feed Amperage
Motor Rated Current: Main Spindle Amperage
Rated Output Current26 A26 A
Frequency
Frame Size
Enclosure Rating
Manual NoB-65282B-65282
StandardsEN50178, UL508CEN50178, UL508C
Discontinued by Manufacturer?
Dimensions19" x 16" x 8"19" x 16" x 8"
Weight14 LBS14 LBS

Type: Servo Module
Function: Control
# Axis: 3
Rated Input: 283 - 339 VDC (9.5 kW)
Max Output Voltage: 240 VAC
L-Axis Rated Output Current: 6.5 A
M-Axis Rated Output Current: 6.5 A
N-Axis Rated Output Current: 13.0 A
Manual No: B-65282
Standards: EN50178, UL508C
Approximate Dimensions: 19" x 16"
Approximate Height: 8"
Approximate Weight: 14 LBS

CONDITION: This Drive Appears to be in Excellent Condition ! Located in Cincinnati, OH
