FANUC A06B-6117-H209 | Servo Drives

Sell Your FANUC A06B-6117-H209
513-771-2111
sales@gaec.com
$1,150.00 USD
Sell Your FANUC A06B-6117-H209

Overview

Type:
Servo Drives
Manufacturer:
FANUC
Model:
A06B-6117-H209
Stock #:
Q12066
Status:
For Sale

Description

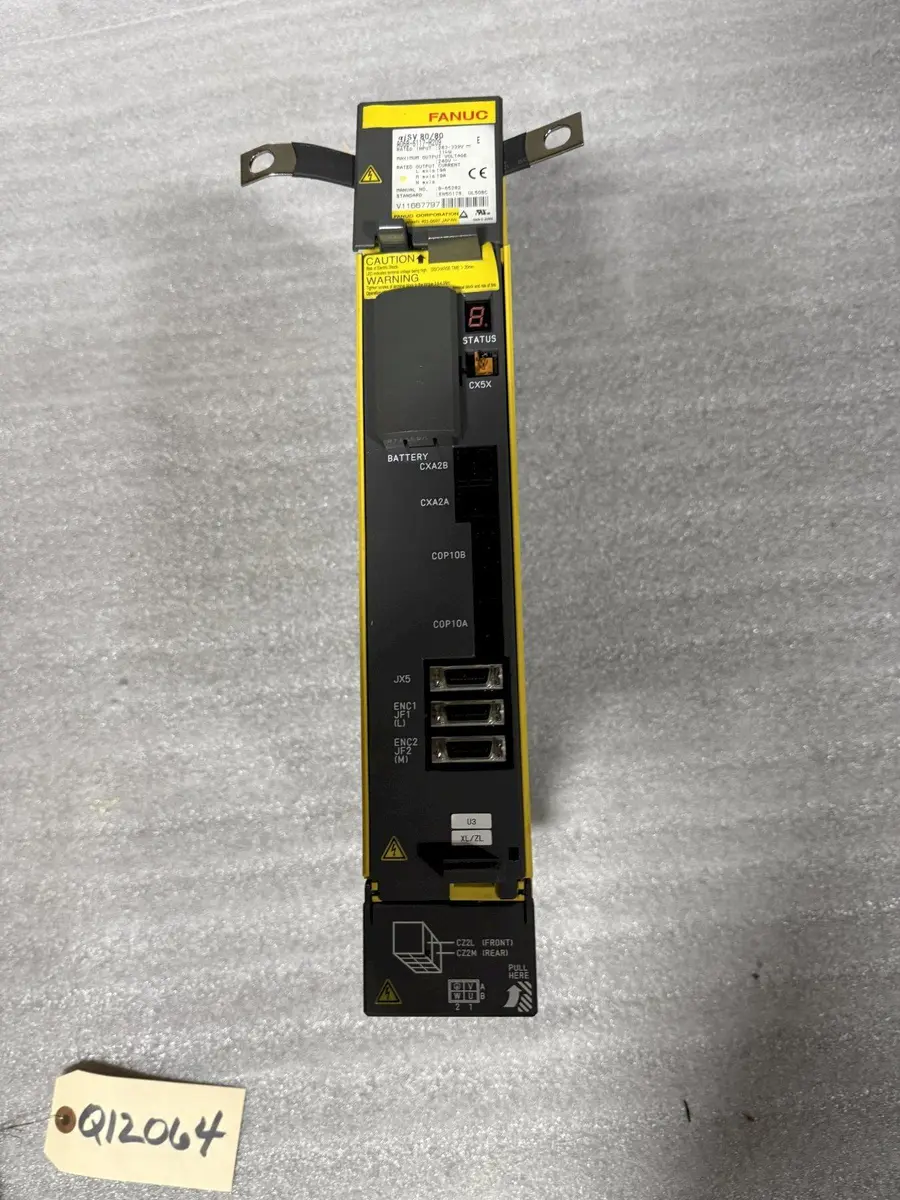

FANUC A06B-6117-H209 SERVO AMPLIFIER MODULE, Model AiSV 80/80.

Product TypeServo Amplifier ModuleServo Amplifier Module
Rated Input11 kW11 kW
FunctionControlControl
# Axis22
Input Voltage0 V0 V
Output Voltage240 V240 V
Output Power
L-Axis Rated Output Current19 A19 A
M-Axis Rated Output Current19 A19 A
N-Axis Rated Output Current
Amperage
Motor Rated Current: Feed Amperage
Motor Rated Current: Main Spindle Amperage
Rated Output Current
Frequency
Frame Size
Enclosure Rating
Manual NoB-65282B-65282
StandardsEN50178, UL508CEN50178, UL508C
Discontinued by Manufacturer?
Dimensions19" x 16" x 8"19" x 16" x 8"
Weight16 LBS16 LBS

Type: Servo Amplifier Module
Function: Control
# Axis: 2
Rated Input: 283 - 339 VDC (11.0 kW)
Max Output Voltage: 240 VAC
L-Axis Rated Output Current: 19.0 A
M-Axis Rated Output Current: 19.0 A
Manual No: B-65282
Standards: EN50178, UL508C
Approximate Dimensions: 19" x 16"
Approximate Height: 8"
Approximate Weight: 16 LBS

CONDITION: This Drive Appears to be in Excellent Condition ! Located in Cincinnati, OH
