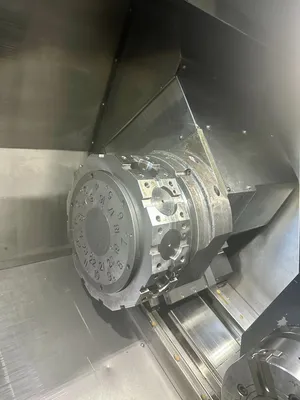

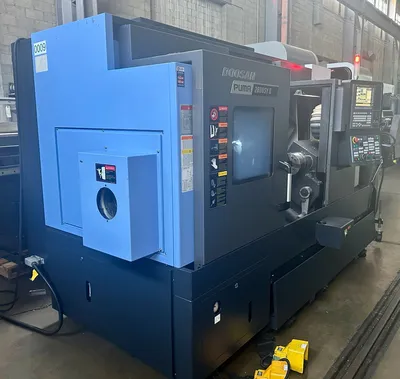

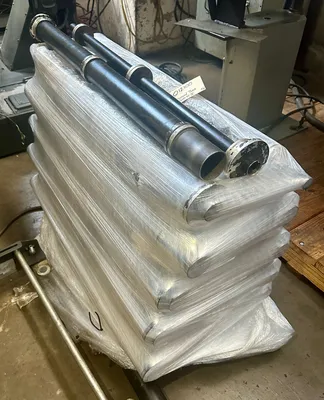

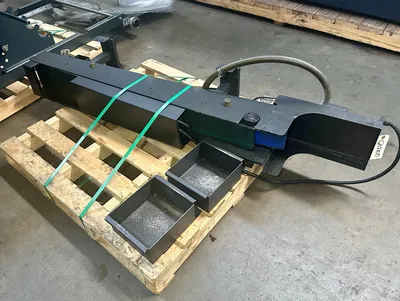

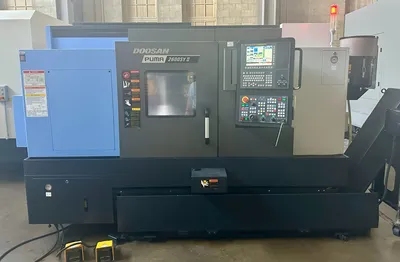

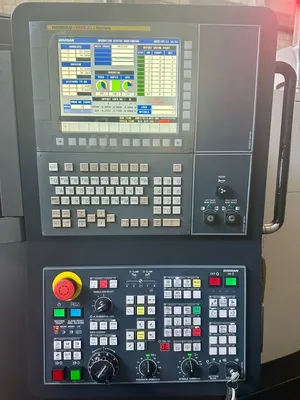

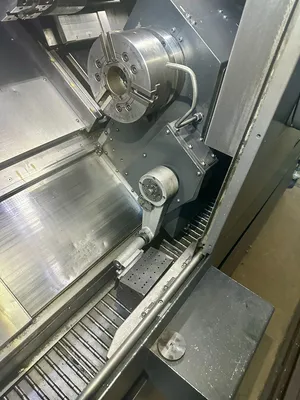

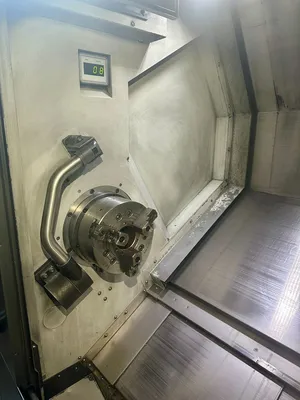

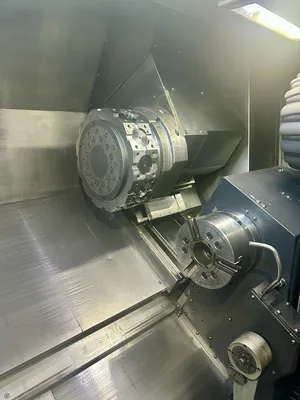

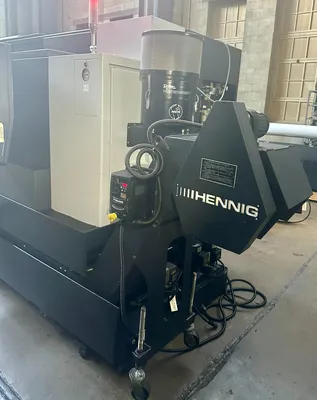

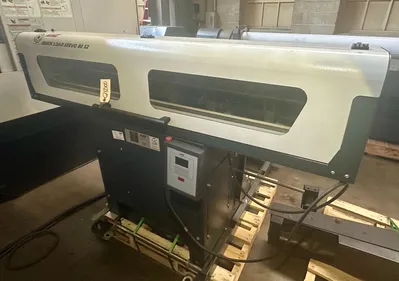

Fanuc 31iMA CNC Control, 10.4" Color LCD Screen, USB Port, PC/ MCIA Interface, 10" 3-Jaw Chuck Main Spindle, 8" 3-Jaw Chuck Sub-Spindle w/ Part Ejector, 4000 Max RPM Main Spindle, 6000 Max RPM Sub-Spindle, 3" Bar Capacity on Main Part Ejector on Sub, 12 Position Turret w/ Milling 24 Half Positions, 5000 RPM Milling Spindle, 10.2" X-Axis Travel, ± 4.1" Y-Axis Travel, 32.6" Z-Axis Travel, 1° C-Axis, Tool Setter, Parts Catcher/Conveyor, LNS Quick Load 80 S2 Bar Feeder, Henning Chip Conveyor & Coolant System.
| CNC Control | Fanuc 31iMA CNC | Fanuc 31iMA CNC |
| # Axis | 3 | 3 |
| Max Swing Over Bed | 30.7" | 779.78 mm |
| Main Spindle Chuck Size | 10" | 254 mm |
| Max Turning Diameter | 14.8" | 375.92 mm |
| Max Turning Length | 29.9" | 759.46 mm |
| X-Axis (Cross Travel: Turret) | 10.23" | 259.84 mm |
| Z-Axis (Longitudinal Travel: Turret) | 32.67" | 829.82 mm |
| Y-Axis (Travel of Turret) | ± 4.13" | 104.9 mm |
| C-Axis (Indexing Pos.: Main Spindle) | .001° | 0° |
| C2-Axis (Indexing Pos.: Sub-Spindle) | .001° | 0° |
| Main Spindle Thru Hole | 3" | 76.2 mm |
| Main Spindle Nose | A2-8 | A2-8 |
| Main Spindle Power | 30 hp | 22.4 kW |
| Main Spindle Speed Range | 20 - 4,000 RPM | 4,000 RPM |
| Sub-Spindle Chuck Size | 8" | 203.2 mm |
| Sub-Spindle Thru Hole | 3" | 76.2 mm |
| Sub-Spindle Nose | A2-8 | A2-8 |
| Sub-Spindle Power | 20 hp | 14.9 kW |
| Sub-Spindle Speed Range | 20 - 6,000 RPM | 6,000 RPM |
| X-Axis Upper Turret Rapid Traverse Rate | 1,181 in/min. | 29,997.4 mm/min. |
| Z-Axis Upper Turret Traverse Rate | 1,181 in/min. | 29,997.4 mm/min. |
| Upper Turret Live Tooling Power | 7.5 hp | 5.6 kW |
| Upper Turret Live Tooling Speed Range | 20 - 5,000 RPM | 5,000 RPM |
| Upper Turret Tool Capacity | 12 (All Live) / 24 Half Positions | 12 (All Live) / 24 Half Positions |
| Tailstock | No | No |

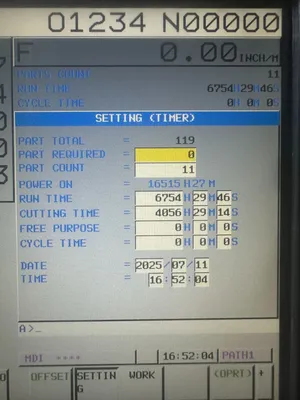

| Machine Cutting Hours | 4056 | 4056 |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 153" x 74" x 85" | 153" x 74" x 85" |
| Weight | 14,250 LBS | 14,250 LBS |
CONDITION: This Machine Appears to be in Excellent Condition !
F.O.B. Cincinnati, OH
