GENERAL ELECTRIC 9T23Q1608 | Transformers

Sell Your GENERAL ELECTRIC 9T23Q1608
513-771-2111
sales@gaec.com
$795.00 USD
Sell Your GENERAL ELECTRIC 9T23Q1608

Overview

Type:
Transformers
Manufacturer:
GENERAL ELECTRIC
Model:
9T23Q1608
Stock #:
K12657
Status:
For Sale

Description

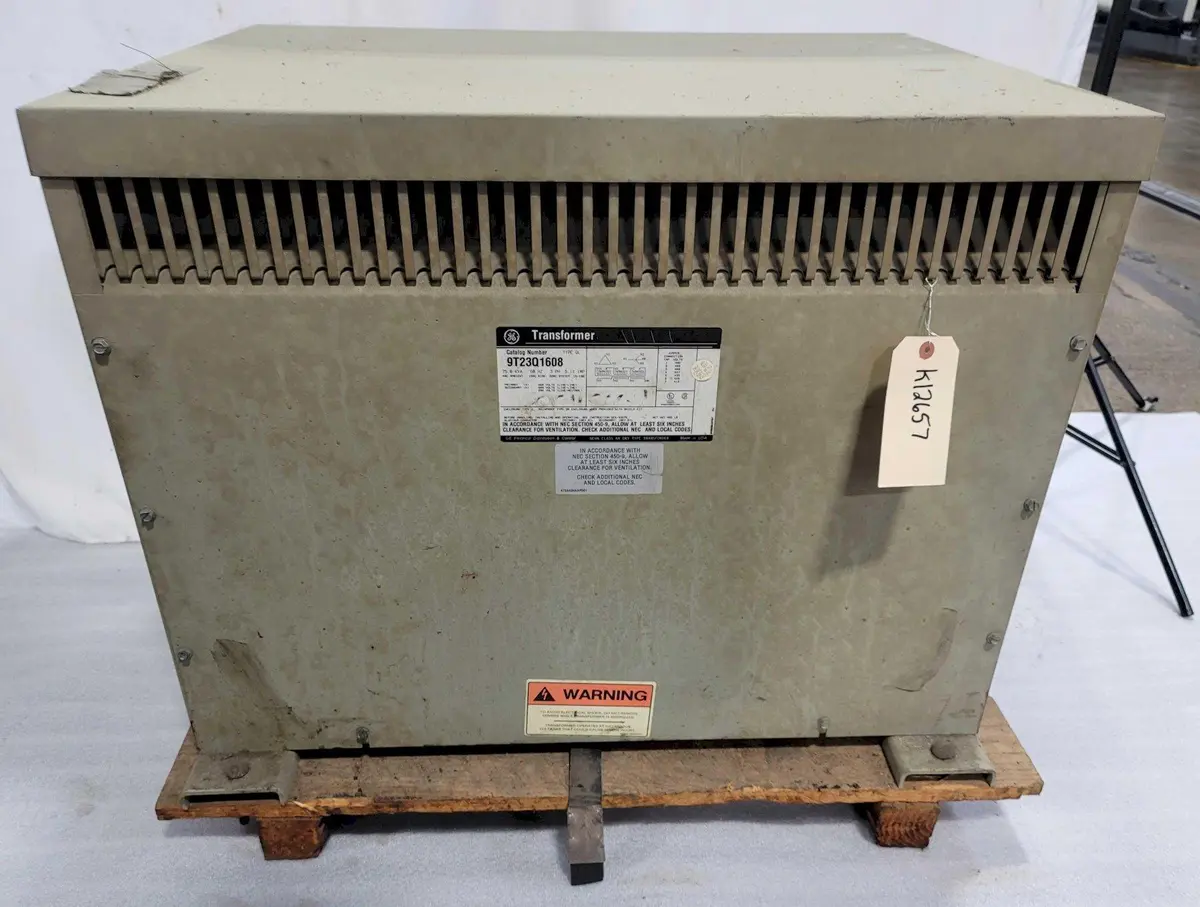

75 KVA GENERAL ELECTRIC TRANSFORMER, Model 9T23Q1608, 3-Phase, 460 Volt Input Delta, 509 Volt Output Line to Line Y, 294 Volt Line to Ground, 60 Hz, Multi Tap, Dry Type.

Came from a running Machining Center. Multi tap for 412 - 482

Catalog Number9T23Q16089T23Q1608
Phase - Electrical33
Primary Input Voltage460 V460 V
Secondary Output Voltage509 V509 V
VA Rating75 kV·A75 kV·A
NEMA ClassAA Dry TypeAA Dry Type
Frequency60 Hz60 Hz
Temp Class428°F220°C
Temp Rise302°F150°C
Enclosure Rating22
Enclosure TypeDry TypeDry Type
Weight465 LBS465 LBS

Phase - Electrical: 3
Input Voltage: 460 V Input Delta
Output Voltage: 509 V Output Line to Line Y, 294 V Line to Ground
VA Rating: 75 kVA
NEMA Class: AA Dry Type
Frequency: 60 Hz
Temp Class: Class 220° C
Temp. Rise: 150° C
% Impedance: 5.1%
Enclosure Rating: 2
Approximate Machine Weight: 465 LBS

CONDITION: This Transformer Appears to be in Very Good Condition ! F.O.B. Cincinnati, OH
