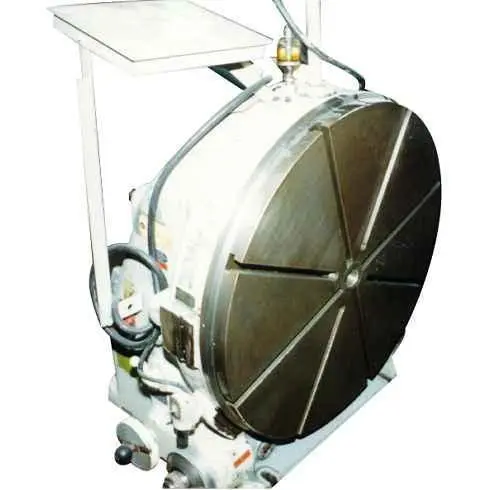

30" PRATT & WHITNEY VERTICAL POWER ROTARY TABLE, 19" Center Height, T-Slotted, 2 Arc/Sec Pos.
TABLE DESCRIPTION:
The 30" Pratt & Whitney Motor Driven Vertical Rotary Table is Designed Especially for Precision Indexing of Workpieces for Precise Machining or Inspection. The Self Contained Reversible Motor Provides Fast Rotation in Either Direction for Rapid Indexing. Readings to 2 Seconds of Arc (1/1800 of a Degree) can be Obtained with the Large Vernier Knob. The Working Surface is Precision Ground with 8 Radial T-Slots.
Heidenhain Rotary Feedback Scale, Heidenhain Digital Read Out.
Working Surface Diameter: 30"
Max Load Capacity, Vertical: 1200 LBS
Distance Base to Center of Table (Vertical Mount): 19-1/8"
Center Bore: #50 Taper
# Radial T-Slots: 8
Size of T-Bolts: 1/2"
Table Graduations: 1°
Table Dial Graduations Read to: 1 Min (1/60°)
Table Dial Vernier Graduations: 2 Sec (1/1800°)
Clamping: Manual Hand Lever
Motor Horsepower: 1/2 HP
Electrics: 220/440/3/60
Approximate Dimensions: 36" x 37"
Approximate Height: 35-1/8"
Approximate Weight: 1,800 LBS
CONDITION: From a Large Aerospace Manufacturer, This Rotary Table Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
