FANUC A06B-0501-B201#7073

FANUC A06B-0501-B201#7073 | Servo Motors

Sell Your FANUC A06B-0501-B201#7073
513-771-2111
sales@gaec.com
$1,450.00 USD
Sell Your FANUC A06B-0501-B201#7073

Overview

Type:
Servo Motors
Manufacturer:
FANUC
Model:
A06B-0501-B201#7073
Stock #:
K13324
Status:
For Sale
Serial #:
C916A1199

Description

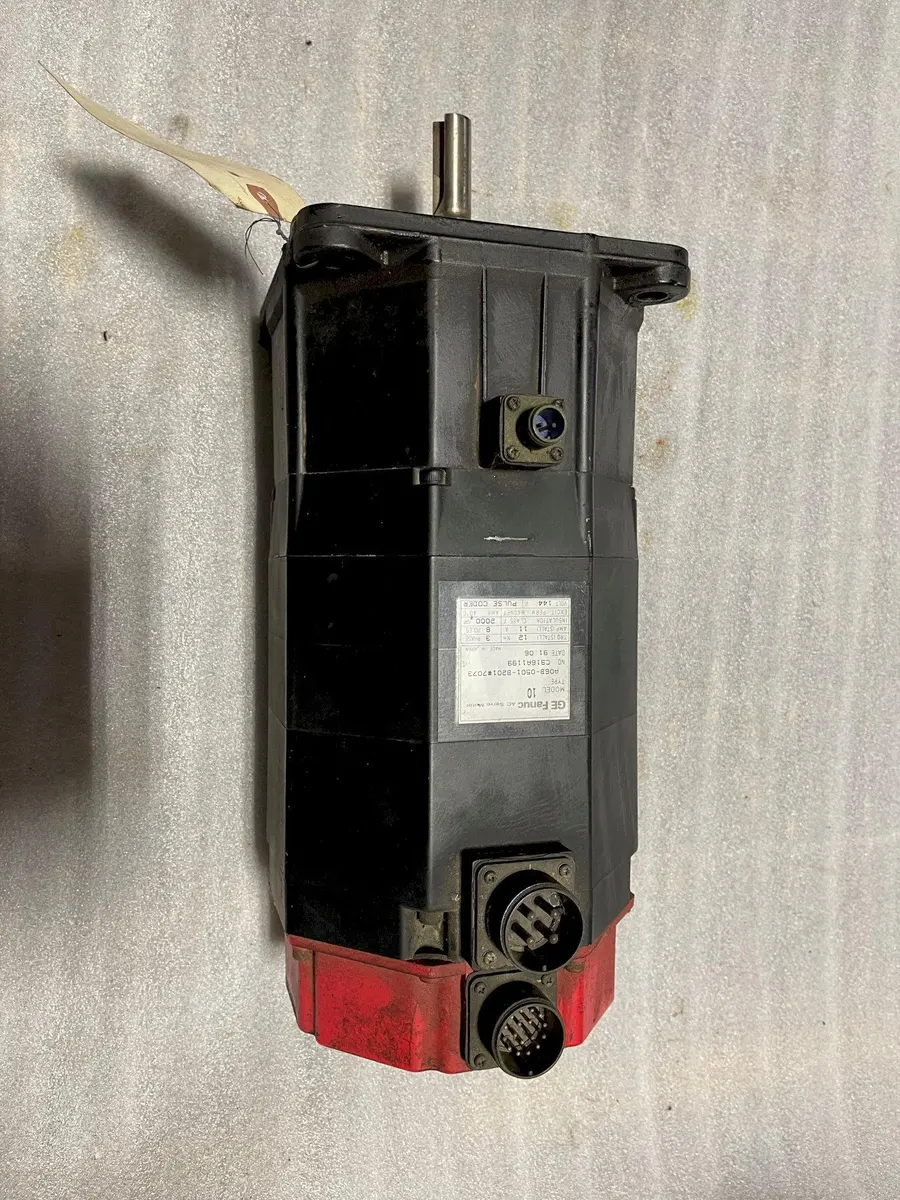

GE FANUC V-GROOVE AC SERVO MOTOR, Model 10, Part No A06B-0501-B201#7073.

Straight Shaft, Brake

Current TypeACAC
Torque (Stall)88.5 lbf393.8 N
Amp (Stall)11 A11 A
Voltage144 V144 V
# Poles88
Max Speed2,000 RPM2,000 RPM
Ambient Temperature104°F40°C
Power Rating1.51.5
Motor Phase-3-3
Power2 hp1.5 kW
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 67IP 67
Encoderincremental encoder with 2000 pulses per revolutionincremental encoder with 2000 pulses per revolution
Dimensions20 x 1020 x 10
Weight54 LBS54 LBS

Torque (Stall): 12 Nm
Amp (Stall): 11 A
Voltage: 144 V
# Poles: 8
Max Speed: 2,000 RPM
Ambient: 40° C
Power Rating: 1.5 kW
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 67
Encoder: incremental encoder with 2000 pulses per revolution
Discontinued by Manufacturer?: yes
Approximate Dimensions: 20" x 10"
Approximate Height: 10"
Approximate Weight: 54 LBS

CONDITION: This Motor Appears to be in Very Good Condition.

Located in Cincinnati, OH
