1994 TSUDAKOMA RNCM-251L | Tables, Rotary

Sell Your TSUDAKOMA RNCM-251L
513-771-2111
sales@gaec.com
$4,950.00 USD
Sell Your TSUDAKOMA RNCM-251L

Overview

Type:
Tables, Rotary
Manufacturer:
TSUDAKOMA
Model:
RNCM-251L
Year:
1994
Stock #:
K14300
Status:
For Sale
Serial #:
940088

Description

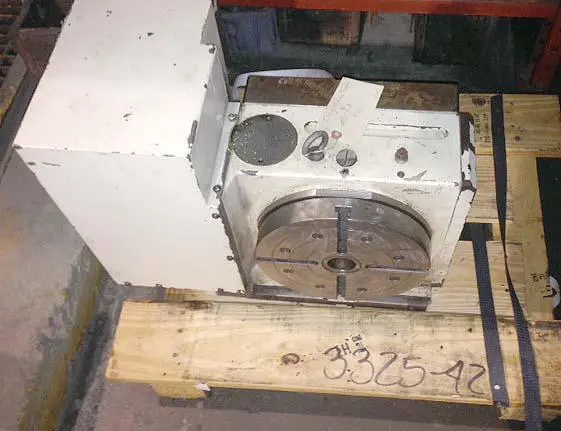

10" TSUDAKOMA, Model RNCM-251L, Full Contouring, 10" Face Place, Horizontal or Vertical Mounting, Fanuc Servo Motor. New 1994.

This Horizontal or Vertical Mount CNC Rotary Table was Designed for Full Contour Milling or Indexing of Parts. The Table is Driven by a Fanuc Electric Servo Motor with Resolver Feed Back. For Work Holding it has a 9.84" Round T-Slotted Work Mounting Surface. Table was taken off a Vertical Machining Center with a Fanuc Drive Package. Will fit Most Other Machines with a Simple Change of the Servo Motor.

NOTE: New Table Replacement Cost Is Over $17,000.

Table Size-X9.84"249.94 mm
Table Size-Y9.84"249.94 mm
Platter Diameter9.89.8
Max Load Capacity, Horizontal551 lb249.9 kg
Max Load Capacity, Vertical220 lb99.8 kg
Distance Base to Center of Table (Vertical Mount)6.29"159.77 mm
Distance Base to Top of Table (Horizontal Mount)6.5"165.1 mm
Center Bore1.26"32.004 mm
Table Graduations1°1°
Table Positions360000360000
Drive MechanismElectricElectric
Dimensions22" x 18" x 6.75"22" x 18" x 6.75"
Weight165 LBS165 LBS

CONDITION: Table Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
