SIEMENS 1FT5072-0AC01-2-Z

SIEMENS 1FT5072-0AC01-2-Z | Servo Motors

Sell Your SIEMENS 1FT5072-0AC01-2-Z
513-771-2111
sales@gaec.com
$1,000.00 USD
Sell Your SIEMENS 1FT5072-0AC01-2-Z

Overview

Type:
Servo Motors
Manufacturer:
SIEMENS
Model:
1FT5072-0AC01-2-Z
Stock #:
K14509
Status:
For Sale

Description

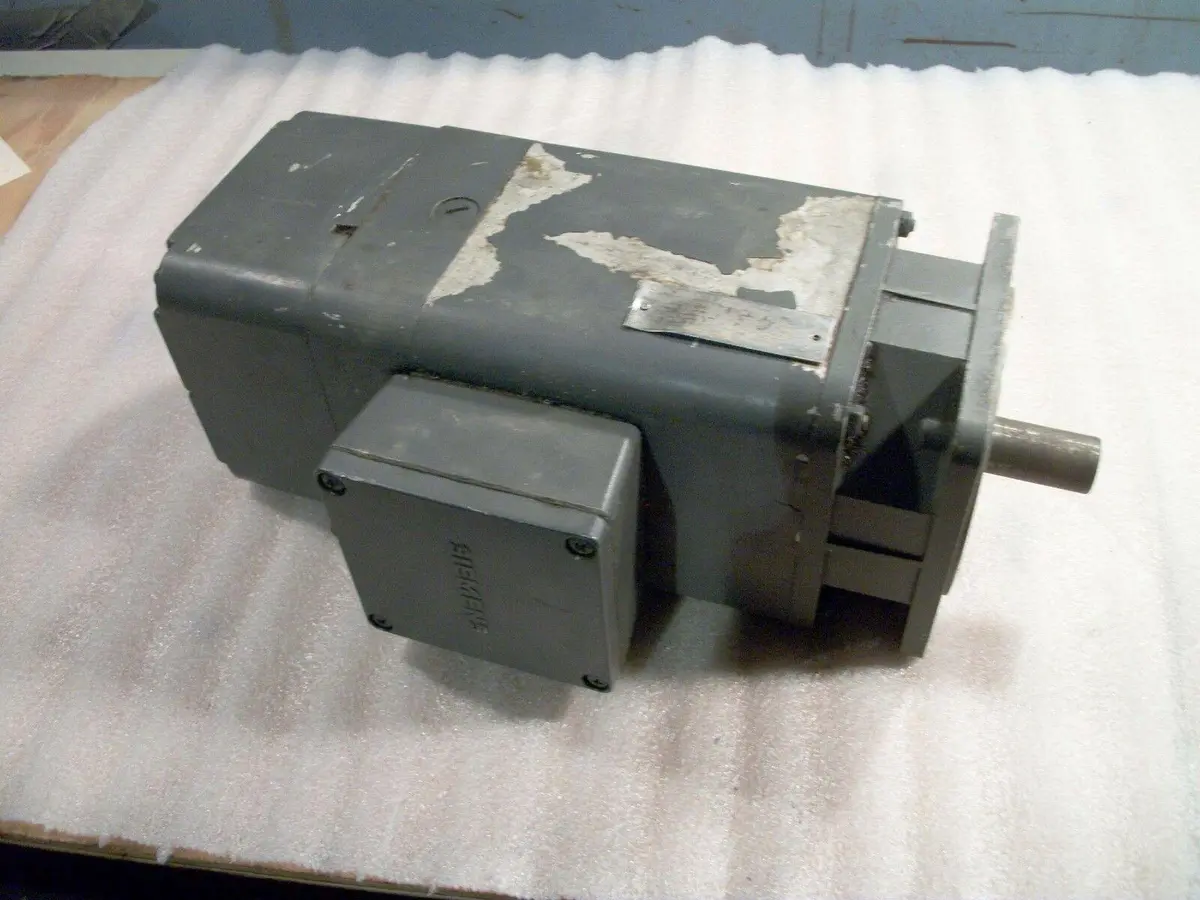

Siemens AC Synchronous Servo Motor 1FT5072-0AC01-2-Z Milacron # 1-606-4529

Permanent Magnet
AC Feed Motor
DC Link
Shaft Position Encoder
Naturally Cooled
TG and RLG

Current TypeACAC
Torque (Stall)8.8 lbf39.4 N
Amp (Stall)14.5 A14.5 A
Voltage150 V150 V
Max Speed2,000 RPM2,000 RPM
EfficiencyIEC 71IEC 71
Motor Phase-3-3
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 64IP 64
EncoderShaft Position EncoderShaft Position Encoder
Motor Mounting CodeIM B5 (V1, V3)IM B5 (V1, V3)

Current Type: AC
Torque (Stall): 12 Nm
Amp (Stall): 14.5 A
Voltage: 150 V wye
Max Speed: 2,000 RPM
Efficiency: IEC 71
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 64
Motor Mounting Code: IM B5 (V1, V3)
Discontinued by Manufacturer?: yes

F.O.B. Cincinnati, OH
