Overview

Type:
Grinders, Internal
Manufacturer:
HEALD
Model:
271
Year:
1970
Stock #:
K14418
Status:
For Sale
Serial #:
44369

Description

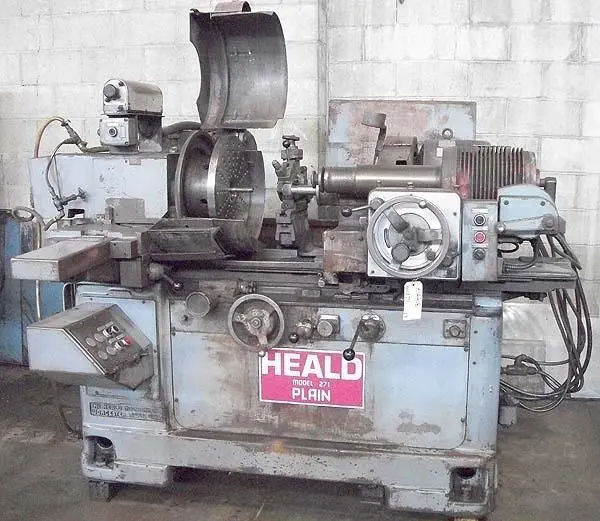

271 HEALD PLAIN INTERNAL GRINDER, 22" Swing over Bed, 18" Swing inside Guards, 8" Max Grinding Depth, ID and Face Grinding Spindles, New 1970.

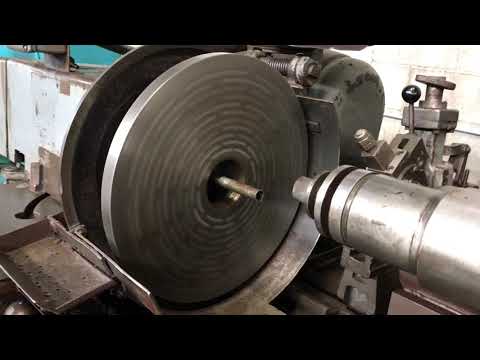

18" Face Plate, Heald Red Head ID Spindle, Manually Operated Single Point Wheel Dresser, Splash Guards, Hydraulic Power Cross Sliding Headstock Work Head, Facing Spindle on Slide, Swivel Work Head, Coolant System.

Max Swing Over Table22"558.8 mm
Max Swing Inside Coolant Splash Guard18"457.2 mm
Max Grinding Stroke8"203.2 mm
Max Grinding Hole Diameter9.75"247.65 mm
Min Grinding Hole Diameter0.125"3.175 mm
X-Axis Feed Rate0-20 FPM6.1 m/min.
X-Axis Rapid Traverse Rate35 ft/min.10.7 m/min.
Workhead Swivel Range60°60°
Workhead Spindle Flange Diameter9.625"244.47 mm
Max Workhead Speed400 RPM400 RPM
Min Workhead Speed100 RPM100 RPM
DresserYesYes
Dimensions91 x 74 in91 x 74 in
Weight8000 lbs8000 lbs

CONDITION: Cleaned and Cycled. This Grinder Appears to be in Very Good Condition ! F.O.B. Cincinnati, OH
