10 Ton Power Team H-Frame Press, Model HPH-101

10 Ton Power Team H-Frame Press, Model HPH-101

Sell Your Power Team HPH-101
513-771-2111
sales@gaec.com
Sell Your Power Team HPH-101

Overview

Type:
Presses, H-Frame
Manufacturer:
Power Team
Model:
HPH-101
Stock #:
K14140
Serial #:
A002

Description

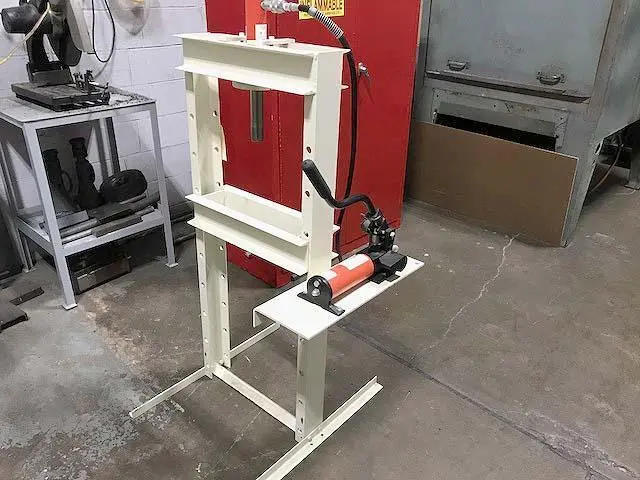

10 TON POWER TEAM H-FRAME PRESS, Model HPH-101, 10 Tons, 7-1/4" x 22" Bed Area, 18-1/2" Between Uprights, 2-Speed Hydraulic Hand Pump, New!

H-Frame Design, Power Team R10-6SA Hydraulic Cylinder, Power Team HF-32 Hydraulic Pump, 2-Speed Hydraulic Hand Pump, Rapid Advance and Pressing Speed, 7-1/4" x 21" Bed, Adjustable Vertical Height of Bed, Ram Adjustable Right to Left on Frame, Quality Heavy Duty Construction.

Tonnage Capacity10 T9.072 t
Operation2-Speed Hydraulic Hand Pump2-Speed Hydraulic Hand Pump
Stroke Length6"152.4 mm
Width Between Uprights18.5"469.9 mm
Ram Travel14"355.6 mm
Max Distance Ram to Table43"1,092.2 mm
Min Distance Ram to Table0"0 mm
Bed Area-L22"558.8 mm
Bed Area-W7.25"184.15 mm
Max Pressure10,000 PSI689.5 bar
Dimensions22" x 38" x 58"22" x 38" x 58"
Weight300 LBS300 LBS

CONDITION: Brand New ! Made in the USA !

F.O.B. Cincinnati, OH
