2007 KITAGAWA TT120 | Tables, Rotary
$9,950.00 USD

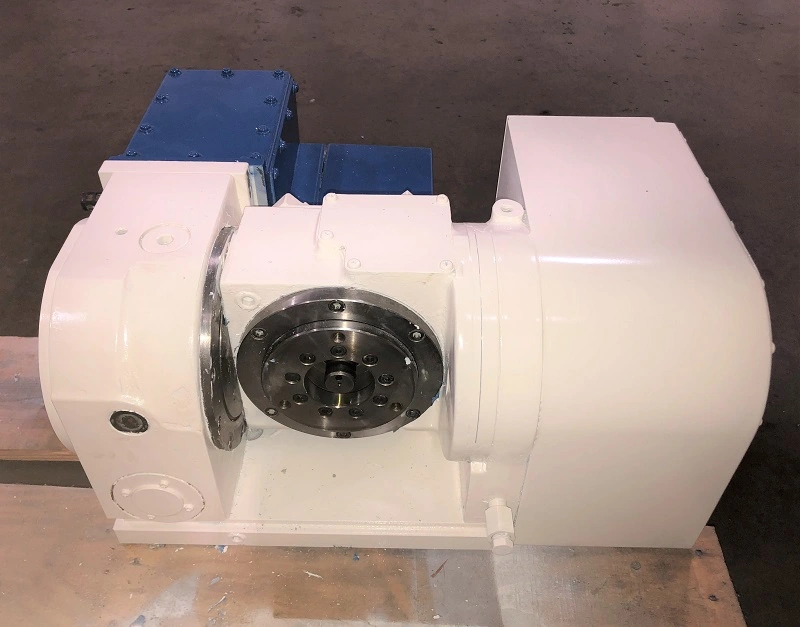

4.33" KITAGAWA TT120 4TH AND 5TH AXIS CNC ROTARY TABLE, Model TT120, Fanuc Compatible, 2007.
Fanuc Servo Motors, Pneumatic Clamping, Cables
Working Surface Diameter: 4.33"
Table Diameter: 4.33"
Max Load Capacity, Horizontal: 78 LBS
Max Load Capacity, Tilted: 45 LBS
Table Center Height: 5.51"
Reduction Ratio, Rotating: 72:1
Reduction Ratio, Tilting: 120:1
Max Table Rotation Speed, Rotating: 41.6 RPM
Max Table Rotation Speed, Tilting: 25 RPM
Min Tilting Angle: -20°
Max Tilting Angle: +120°
Approximate Dimensions: 24" x 18"
Approximate Height: 10"
Approximate Weight: 150
CONDITION: This Table Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
