25" Cleereman Single Spindle Upright Layout Drill

Sell Your Cleereman -
513-771-2111
sales@gaec.com
Sell Your Cleereman -

Overview

Type:
Drills, Heavy Duty & Sensitive, Single Spindle
Manufacturer:
Cleereman
Model:
-
Year:
1955
Stock #:
Q10429
Serial #:
25C1514

Description

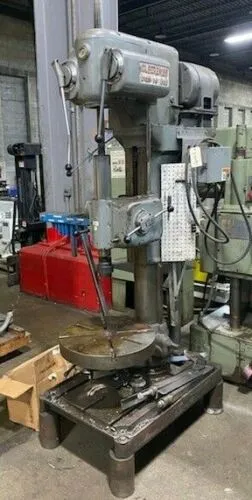

25" CLEEREMAN SINGLE SPINDLE UPRIGHT LAYOUT DRILL, 23" Round Table, 7-1/2 HP, #4 MT, 1500 RPM, New 1955.

Geared Head, Adjustable Sliding Head, Heavy Duty Box Column & Base Castings, 9 Power Feeds and 12 Speeds, Tooling.

Table Diameter23"584.2 mm
Spindle Travel12"304.8 mm
Vertical Adjustment of Sliding Head17"431.8 mm
Spindle Taper#4 MT#4 MT
Center of Spindle to Front of Lower Column14"355.6 mm
Max Distance Spindle to Tabletop25"635 mm
Min Distance Spindle to Tabletop13"330.2 mm
Feed: Manual or Power?PowerPower
# Feeds, per Revolution9.09.0
Max Feed, per Revolution0.045"1.143 mm
Min Feed, per Revolution0.005"0.127 mm
Spindle Speed Range37 - 1,500 RPM1,500 RPM
Spindle Quill Diameter3.875"98.425 mm
Spindle Quill Stroke12"304.8 mm
Distance Floor to Tabletop33"838.2 mm
Motor Power7.5 hp5.6 kW
Electrics220/440/3/60220/440/3/60
Dimensions80" x 68" x 110"80" x 68" x 110"
Weight5,000 LBS5,000 LBS

CONDITION: This Machine Appears to be in Very Good Condition.

F.O.B. Cincinnati, OH
