1995 COLUMBUS JACK 20 TON | Lifters, Jack

Sell Your COLUMBUS JACK 20 TON
513-771-2111
sales@gaec.com
Sell Your COLUMBUS JACK 20 TON

Overview

Type:
Lifters, Jack
Manufacturer:
COLUMBUS JACK
Model:
20 TON
Year:
1995
Stock #:
Q10378
Status:
For Sale

Description

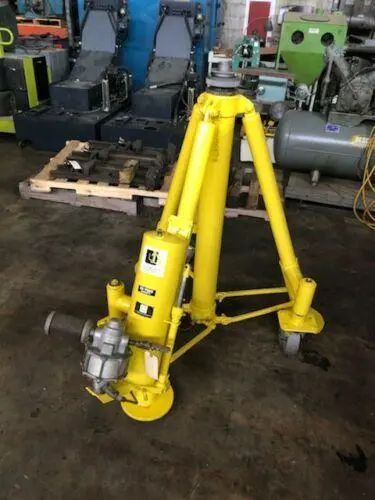

20 Ton Columbus Jack/Regent Tripod Airplane Jack, 40" Min Under Wing Clearance Required

Hydraulic Cylinder Lift, Lockout Nut Safety Nut on The Screw to Maintain Height. Transportation Wheels Which Compress via Springs When Plane is Jacked Up putting the Load on the Pads. 40" is the Min Airplane Jack Point Height in order to Wheel in the Jack.

Total Lifting Capacity40,000 lb18,143.7 kg
Max Lifting Height (Screw Extended)81.5"2,070.1 mm
Min Lifting Height (Screw Not Extended)38.75"984.25 mm
Screw Travel13"330.2 mm
Dimensions45" x 45" Triangle x 40" Min H45" x 45" Triangle x 40" Min H
Weight1,200 LBS1,200 LBS

CONDITION: This Airplane Jack Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
