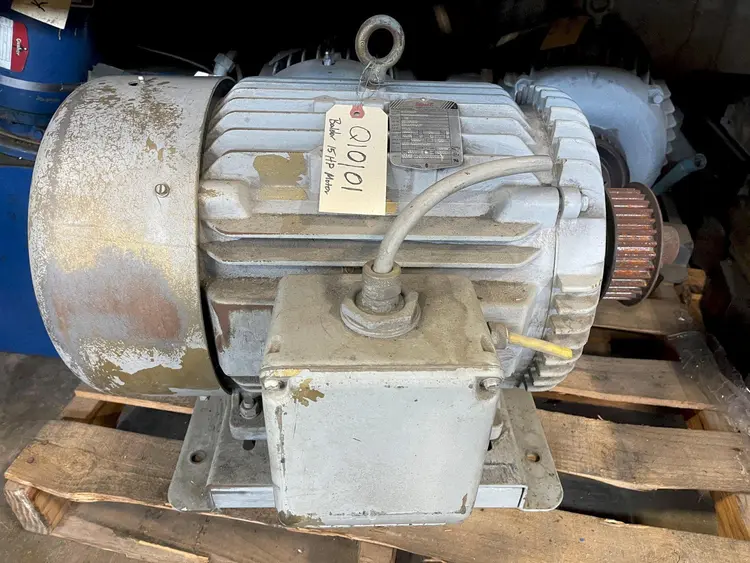

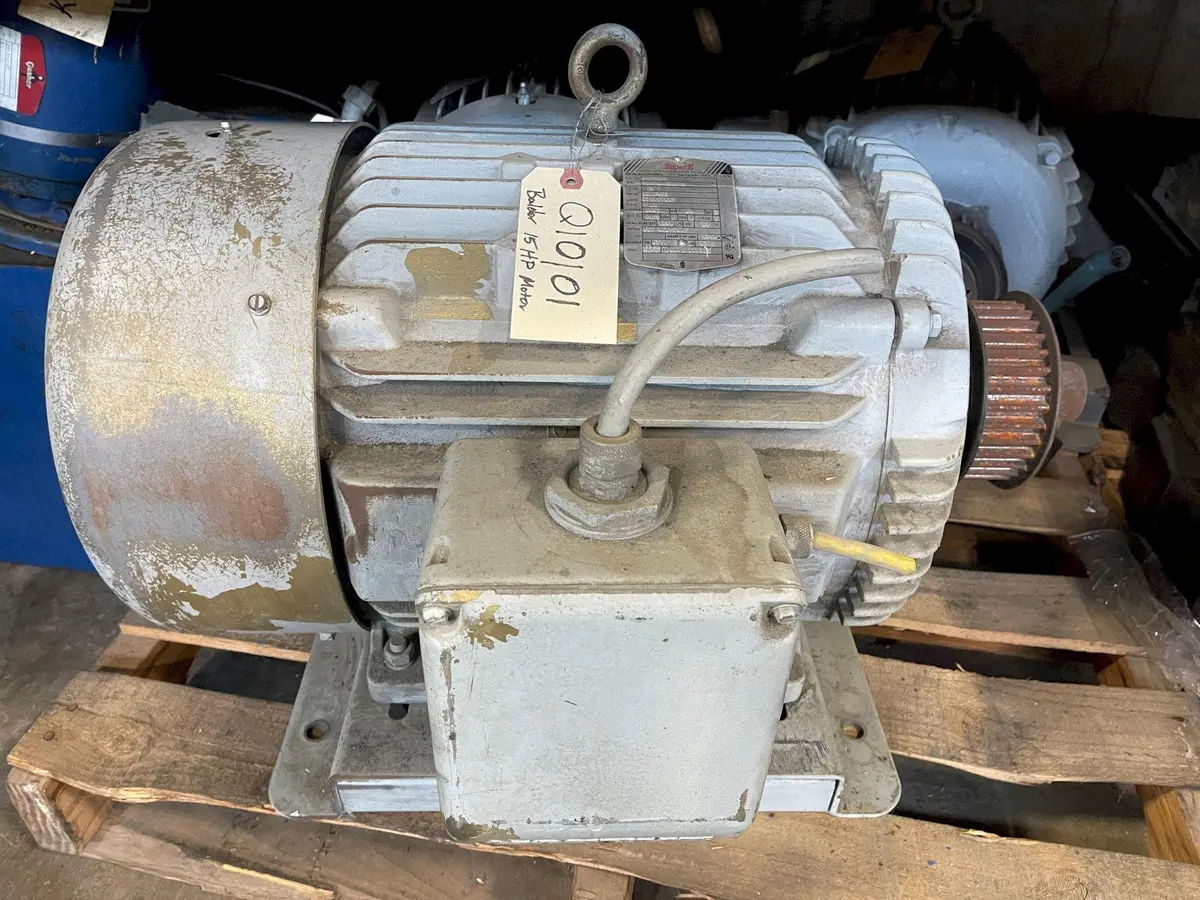

BALDOR EM4100T | Motors, A.C.

Spec Number: 10C151X206G2
Motor Horsepower: 15 HP
Actual Rated Input Voltage: 230/460 V
Full Load Amps: 37.4/18.7 A
Base Speed: 1,180 RPM
Frame: 286T
AC Frequency Rating: 60 Hz
Motor Phase: 3 Phase
Service Factor: 1.15
NEMA KVA Code: H
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C)
NEMA-NOM Efficiency: 92.4%
Power Factor: 81%
Ambient and Time Rating: 40° C AMB-CONT
Drive End (DE): 6311
Opposite Drive End (ODE): 6309
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Current Type: AC
Special Motor Construction: General Purpose
Approximate Dimensions: 28" x 24"
Approximate Height: 20"
Approximate Weight: 450 LBS
