Baldor M2332T | Motors, A.C.

Address: 11925 Enterprise Dr,, Cincinnati, OH, 45241-1513, US
Telephone: 513-771-2111

$745.00 USD

Overview

Type:

Motors, A.C.

Manufacturer:

Model:

M2332T

Stock #:

Q10100a

Serial #:

Z0102280234

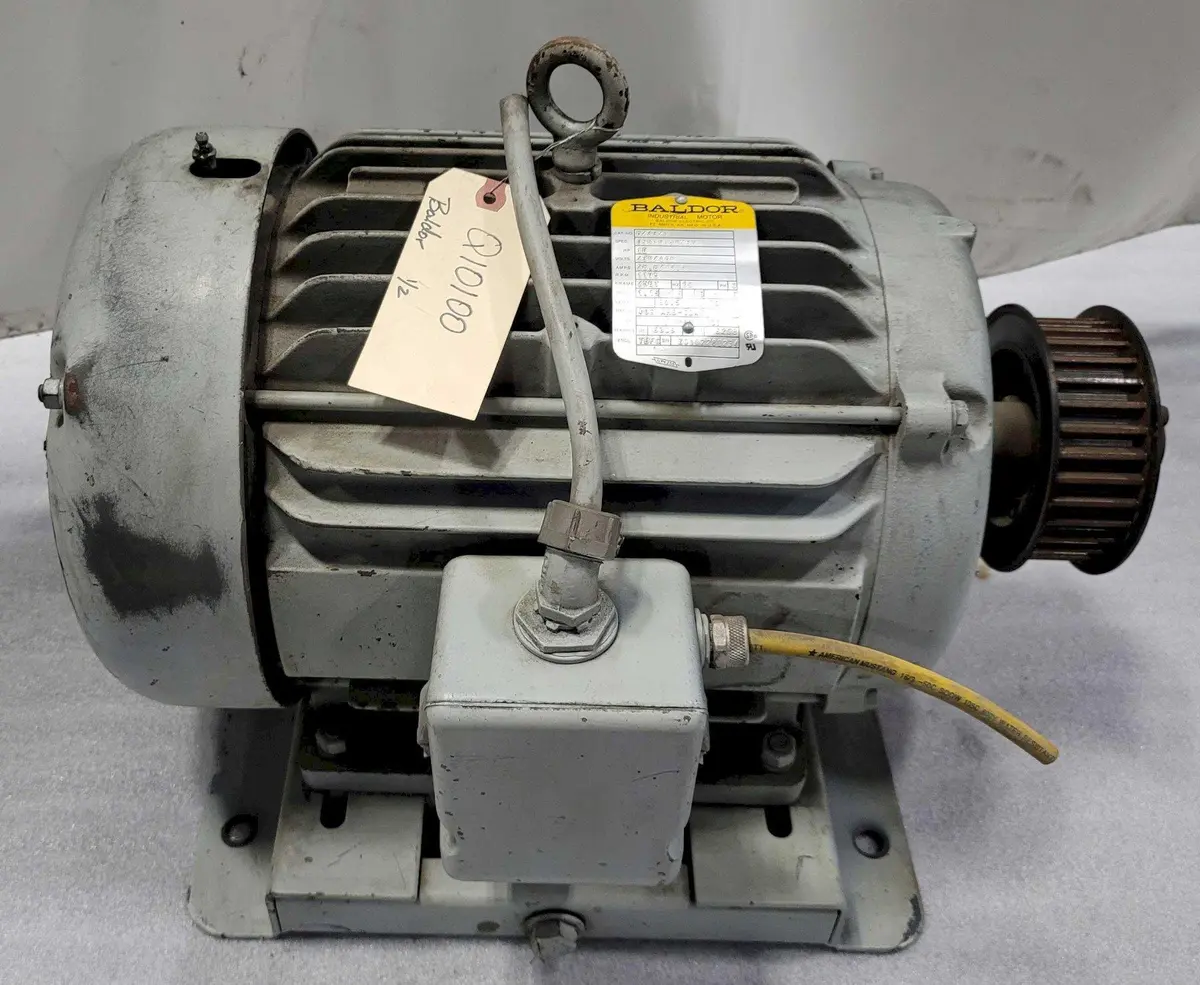

BALDOR RELIANCE AC INDUSTRIAL MOTOR, Model M2332T, 10 HP, 1175 RPM.

ImperialMetric

AC Motor Type	Induction	Induction
Spec Number	09C101X829H1	09C101X829H1
Rated/Full-Load Torque	44.6 lb-ft	44.6 lb-ft
Motor Power	10 hp	10 hp
Full Load Amps	28.8/14.4 A	28.8 A
Base Speed	1,175 RPM	1,175 RPM
Frame	256T	256T
AC Frequency Rating	60 Hz	60 Hz
Motor Phase	3	3
Service Factor	1.1	1.1
NEMA KVA Code	H	H
NEMA Design Letter	B	B
Insulation Class	F (Max 155° C / 311° F)	F (Max 155° C / 311° F)
NEMA-NOM Efficiency	89.5	89.5
Power Factor	73	73
Ambient and Time Rating	40° C AMB-CONT	40° C AMB-CONT
Certified Compliant (CC) #	010A	010A
Drive End (DE)	6309	6309
Opposite Drive End (ODE)	6208	6208
Enclosure Type	TEFC: Totally Enclosed Fan Cooled	TEFC: Totally Enclosed Fan Cooled
Reversible/Non-Reversible	Reversible	Reversible
Mounting Type	Foot-Mounted	Foot-Mounted
Dimensions	22" x 20" x 15"	22" x 20" x 15"
Weight	300 lbs	300 lbs

F.O.B. Cincinnati, OH
